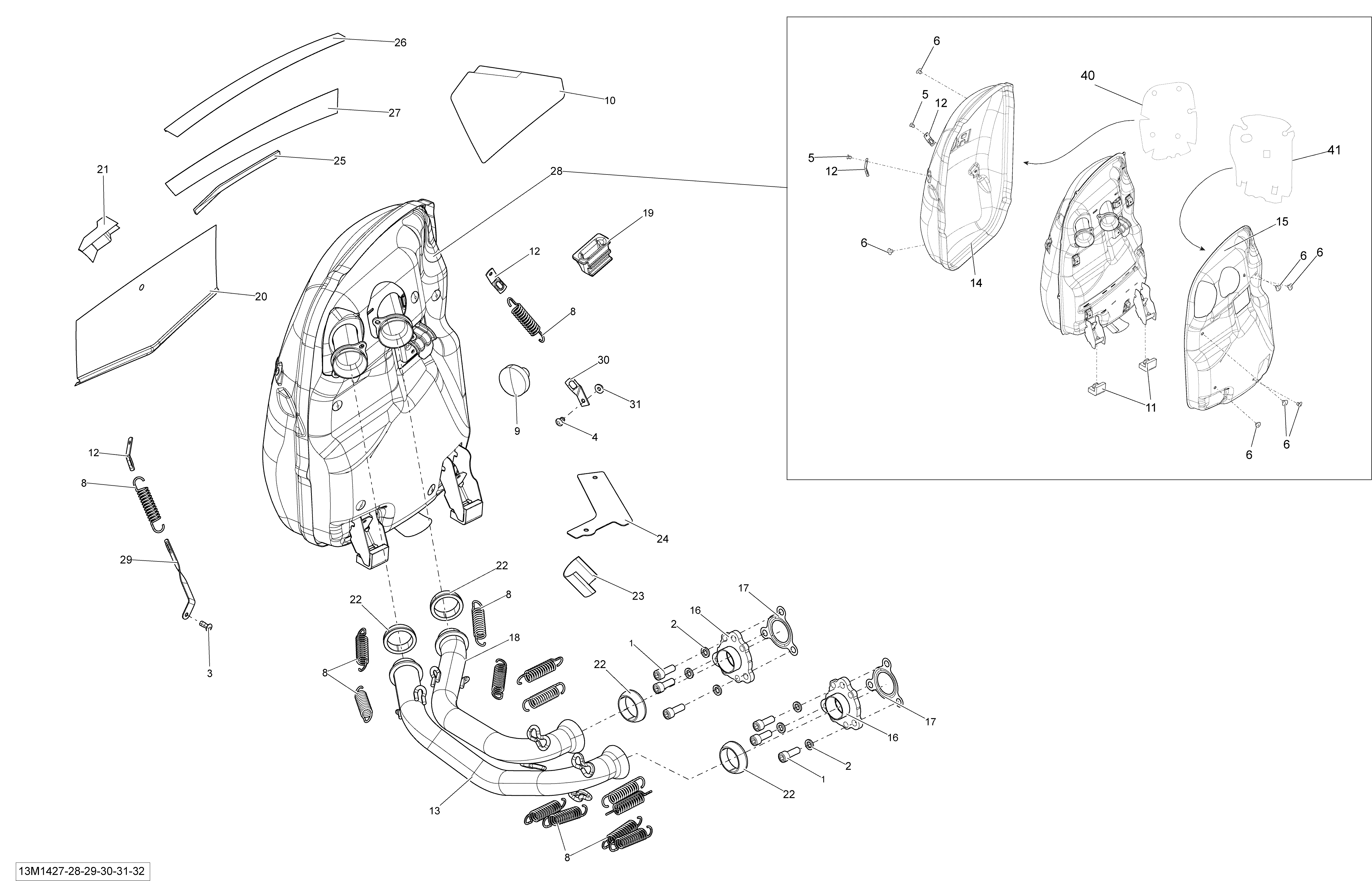

01- Exhaust System для BRP Ski-Doo RENEGADE SPORT 600ACE XP - 2014
-
№АртикулНазвание
-
1250000414 Socket Head Screw M8 X 22Socket Head Screw M8 X 22
-
2250200111 WasherWasher
-
3293150194 Interlock Rivet 3/16''Interlock Rivet 3/16''
-
4390909100 Avex RivetAvex Rivet
-
5390909200 Avex RivetAvex Rivet
-
6390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
8415107100 SpringSpring
-
9514053654 Rubber BumperRubber Bumper
-
10514054488 Reflective SheetReflective Sheet
-
11514054496 Lower StopperLower Stopper
-
12514054522 Spring BracketSpring Bracket
-
13514054625 Exhaust Tube, PTO SideExhaust Tube, PTO Side
-
14514054644 RH Heat ShieldRH Heat Shield
-
15514054645 LH Heat ShieldLH Heat Shield
-
16514054673 Exhaust ManifoldExhaust Manifold
-
17514054714 GasketGasket
-
18514054731 Exhaust Tube, MAG SideExhaust Tube, MAG Side
-
19514054737 Upper StopperUpper Stopper
-
22514054807 Exhaust GasketExhaust Gasket
-
23514054818 StiffenerStiffener
-
24514054819 ProtectorProtector
-
28514054996 Muffler Ass'yMuffler Ass'y
-
29514055030 Spring BracketSpring Bracket
-
30514055037 Spring BracketSpring Bracket
-
31517225900 Flat WasherFlat Washer
-
40514054769 RH Insulating WoolRH Insulating Wool
-
41514054770 LH Insulating WoolLH Insulating Wool
