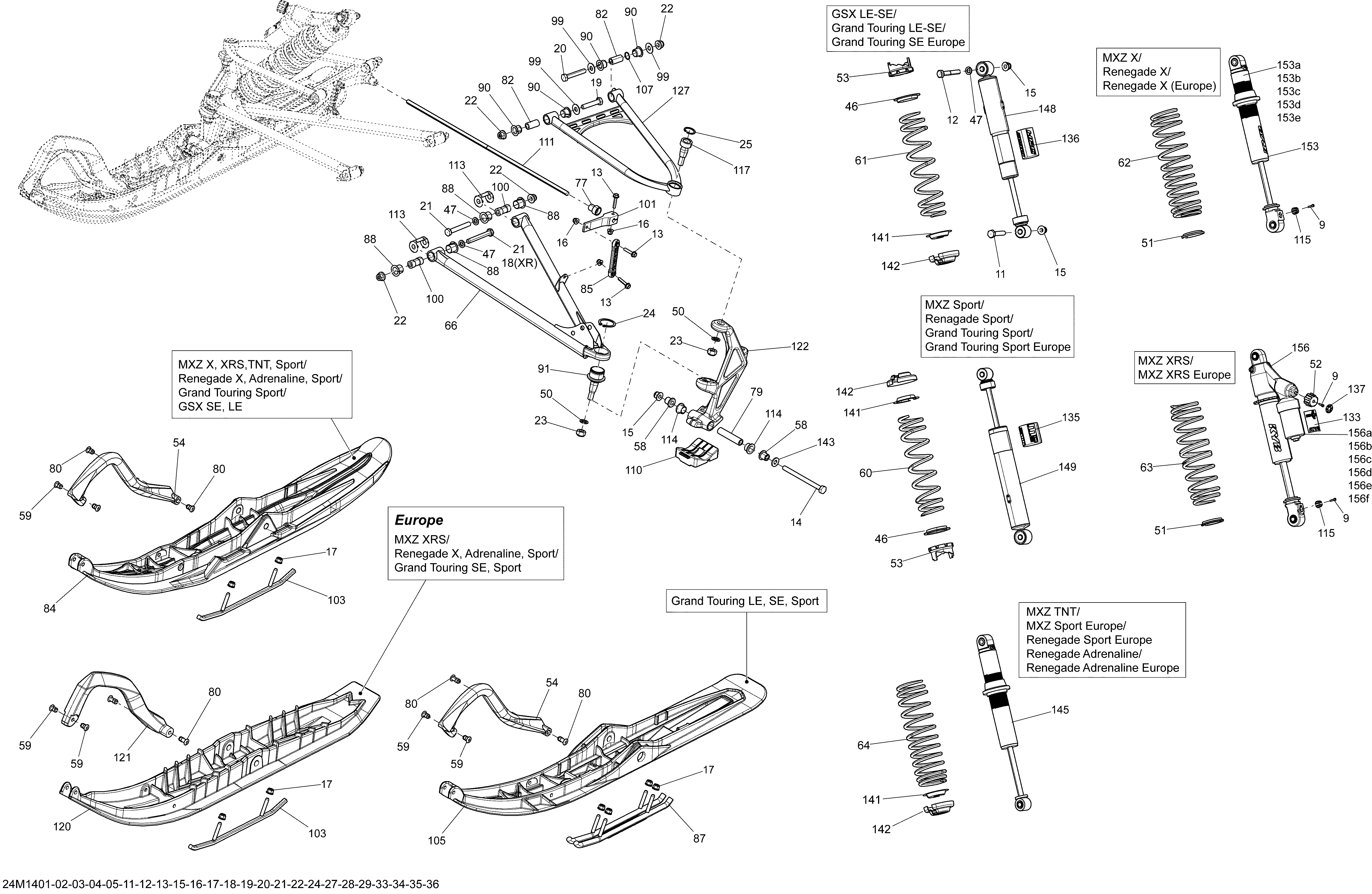

07- Front Suspension And Ski для BRP Ski-Doo RENEGADE SPORT 600ACE XP - 2014
-
№АртикулНазвание
-
11207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
12207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
13207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
14230003054 Hex Screw M10 X 130Hex Screw M10 X 130
-
15233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
16233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
19250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
20250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
21250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
22250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
23232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
24293370035 CirclipCirclip
-
25293370070 CirclipCirclip
-
46503187500 Spring Guide. Model-North AmericaSpring Guide. Model-North America
-
47503189564 WasherWasher
-
50503192491 WasherWasher
-
53505070150 Adjustment Cam. Model-North AmericaAdjustment Cam. Model-North America
-
54505070917 Yellow Handle. Model-North AmericaYellow Handle. Model-North America
-
58505071781 CushionCushion
-
59505071812 RetainerRetainer
-
60505073265 Deep Black Spring. Model-North AmericaDeep Black Spring. Model-North America
-
64505072537 Deep Black Spring. Model-EuropeDeep Black Spring. Model-Europe
-
66505072664 Black RH Lower ArmBlack RH Lower Arm
-
66505072665 Black LH Lower ArmBlack LH Lower Arm
-
77505072064 BushingBushing
-
79506133300 SpacerSpacer
-
80505072133 RetainerRetainer
-
82505072143 BushingBushing
-
84505072943 Black RH Pilot Ski. Model-North AmericaBlack RH Pilot Ski. Model-North America
-
84505072942 Black LH Pilot Ski. Model-North AmericaBlack LH Pilot Ski. Model-North America
-
85505072204 Double Ball Joint LinkDouble Ball Joint Link
-
88505072208 BushingBushing
-
90505072250 BushingBushing
-
91505072682 Lower Ball JointLower Ball Joint
-
99505072392 WasherWasher
-
100505072393 BushingBushing
-
101505072394 Stabilisator LeverStabilisator Lever
-
103860201044 Carbide Runner KitCarbide Runner Kit
-
107505072448 O-RingO-Ring
-
110505072594 Ski StopperSki Stopper
-
111505072602 StabilisatorStabilisator
-
113505072634 Wear PlateWear Plate
-
114505072690 Leg CushionLeg Cushion
-
117505072913 Upper Ball JointUpper Ball Joint
-
120505073281 Black DS Ski 2. Model-EuropeBlack DS Ski 2. Model-Europe
-
121505073107 Yellow Handle. Model-EuropeYellow Handle. Model-Europe
-
122505073007 Clear LH Ski LegClear LH Ski Leg
-
122505073008 Clear RH Ski LegClear RH Ski Leg
-
127505073462 Black LH Upper Arm, 42''Black LH Upper Arm, 42''
-
127505073463 Black RH Upper Arm, 42''Black RH Upper Arm, 42''
-
135516005535 Shock Decal, Mc. Model-North AmericaShock Decal, Mc. Model-North America
-
141706200785 Cap. Model-EuropeCap. Model-Europe
-
142706200881 Spring Stopper. Model-North AmericaSpring Stopper. Model-North America
-
142706200881 Spring Stopper. Model-EuropeSpring Stopper. Model-Europe
-
143503192496 WasherWasher
-
145505073237 Front Shock. Model-EuropeFront Shock. Model-Europe
-
149505073180 Front Shock. Model-North AmericaFront Shock. Model-North America
