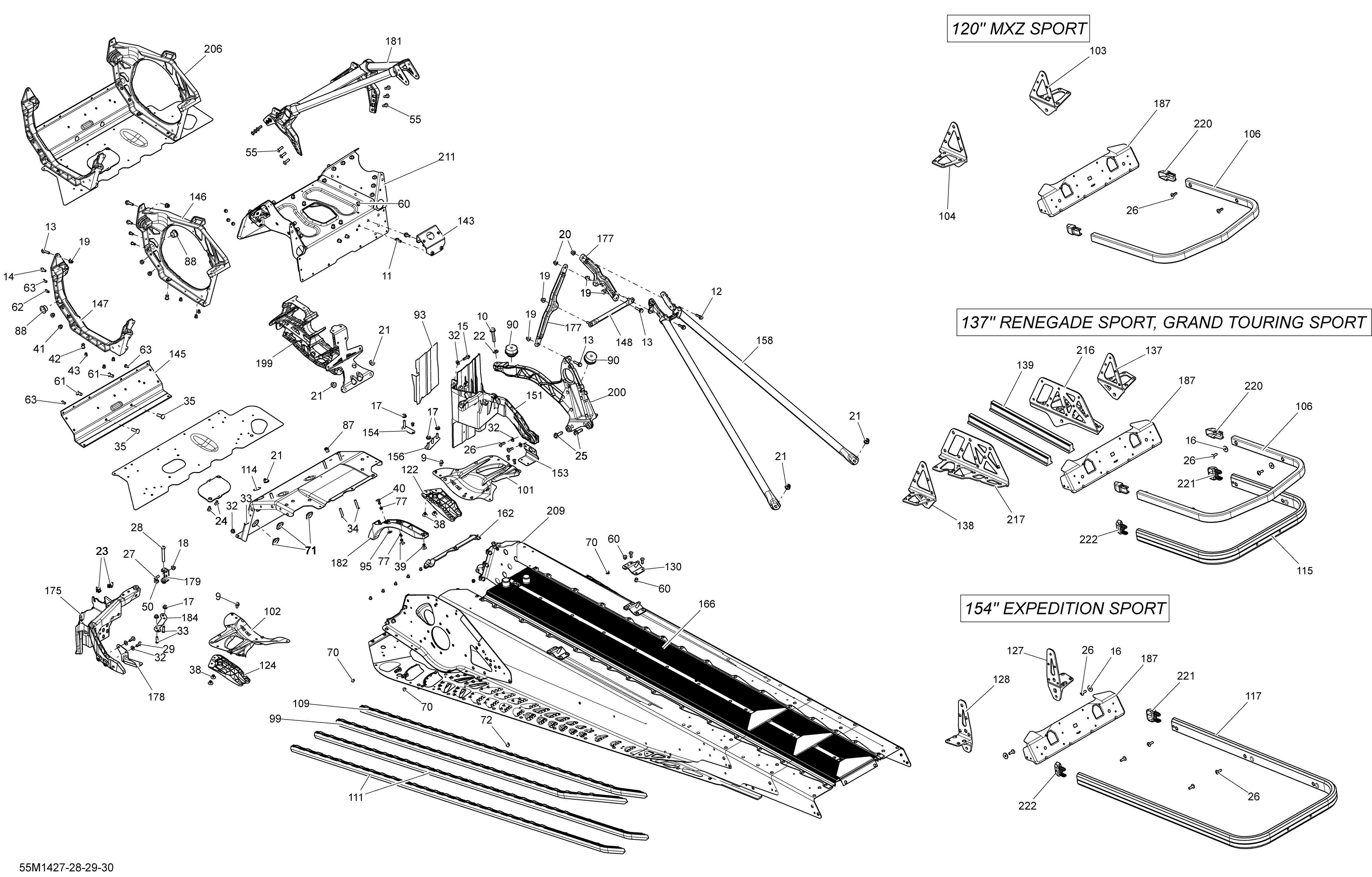

09- Frame And Components для BRP Ski-Doo RENEGADE SPORT 600ACE XP - 2014
-
№АртикулНазвание
-
9207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
10207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
11207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
12207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
13207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
14210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
15210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
17232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
18233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
19233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
21233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
22234281474 Conical Spring Washer M8Conical Spring Washer M8
-
23250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
24250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
25250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
26250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
27250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
28250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
29250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
32250200039 Flat WasherFlat Washer
-
33250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
34250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
35250300038 Clinch StudClinch Stud
-
38293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
39293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
41293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
42293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
43293150144 Stavex RivetStavex Rivet
-
50293150147 Hemlock RivetHemlock Rivet
-
55293150146 Henrob RivetHenrob Rivet
-
60293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
61293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
62293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
70293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
71293730052 Black PlugBlack Plug
-
72293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
87293450275 InsertInsert
-
88505073317 Leg CushionLeg Cushion
-
90512060295 Rubber MountRubber Mount
-
93514054755 Heat ShieldHeat Shield
-
95517124300 WasherWasher
-
101518324874 RH ReinforcementRH Reinforcement
-
102518324875 LH ReinforcementLH Reinforcement
-
106518324980 Clear Rear Bumper. Model-North AmericaClear Rear Bumper. Model-North America
-
111518325378 LH RollerLH Roller
-
111518325377 RH RollerRH Roller
-
114518325560 Adhesive PatchAdhesive Patch
-
115518325577 Clear Rear Bumper. Model-EuropeClear Rear Bumper. Model-Europe
-
122518325782 RH DeflectorRH Deflector
-
124518325783 LH DeflectorLH Deflector
-
130518325974 LH Rear BaseLH Rear Base
-
130518325973 RH Rear BaseRH Rear Base
-
137518326050 RH Slide BracketRH Slide Bracket
-
138518326051 LH Slide BracketLH Slide Bracket
-
143518326178 Engine SupportEngine Support
-
145518326198 Front MemberFront Member
-
146518326328 RH Side MemberRH Side Member
-
147518326330 LH Side MemberLH Side Member
-
148518326355 Center Column SupportCenter Column Support
-
151518326472 Battery SupportBattery Support
-
153518326482 RH SupportRH Support
-
156518326550 Retaining PlateRetaining Plate
-
158518326559 Rear MemberRear Member
-
162518326656 SealSeal
-
166518326641 Rear Radiator Ass'yRear Radiator Ass'y
-
175518326820 LH StirupLH Stirup
-
177518326848 Upper Column SupportUpper Column Support
-
178518326960 SupportSupport
-
179518326961 U-AttachU-Attach
-
181518326970 Front MemberFront Member
-
182518326973 Front ProtectorFront Protector
-
184518326986 AttachAttach
-
187518327105 Rear CapRear Cap
-
199518327475 Front Suspension SupportFront Suspension Support
-
200518327535 Brace Ass'yBrace Ass'y
-
206518328078 'E'' Module'E'' Module
-
209415129827 Frame RENEGADE LFFFrame RENEGADE LFF
-
211518327721 ''S'' Module''S'' Module
-
220520000567 Full Moon Cap. Model-North AmericaFull Moon Cap. Model-North America
-
221520000711 Full Moon RH Cap. Model-EuropeFull Moon RH Cap. Model-Europe
-
222520000712 Full Moon LH Cap. Model-EuropeFull Moon LH Cap. Model-Europe
