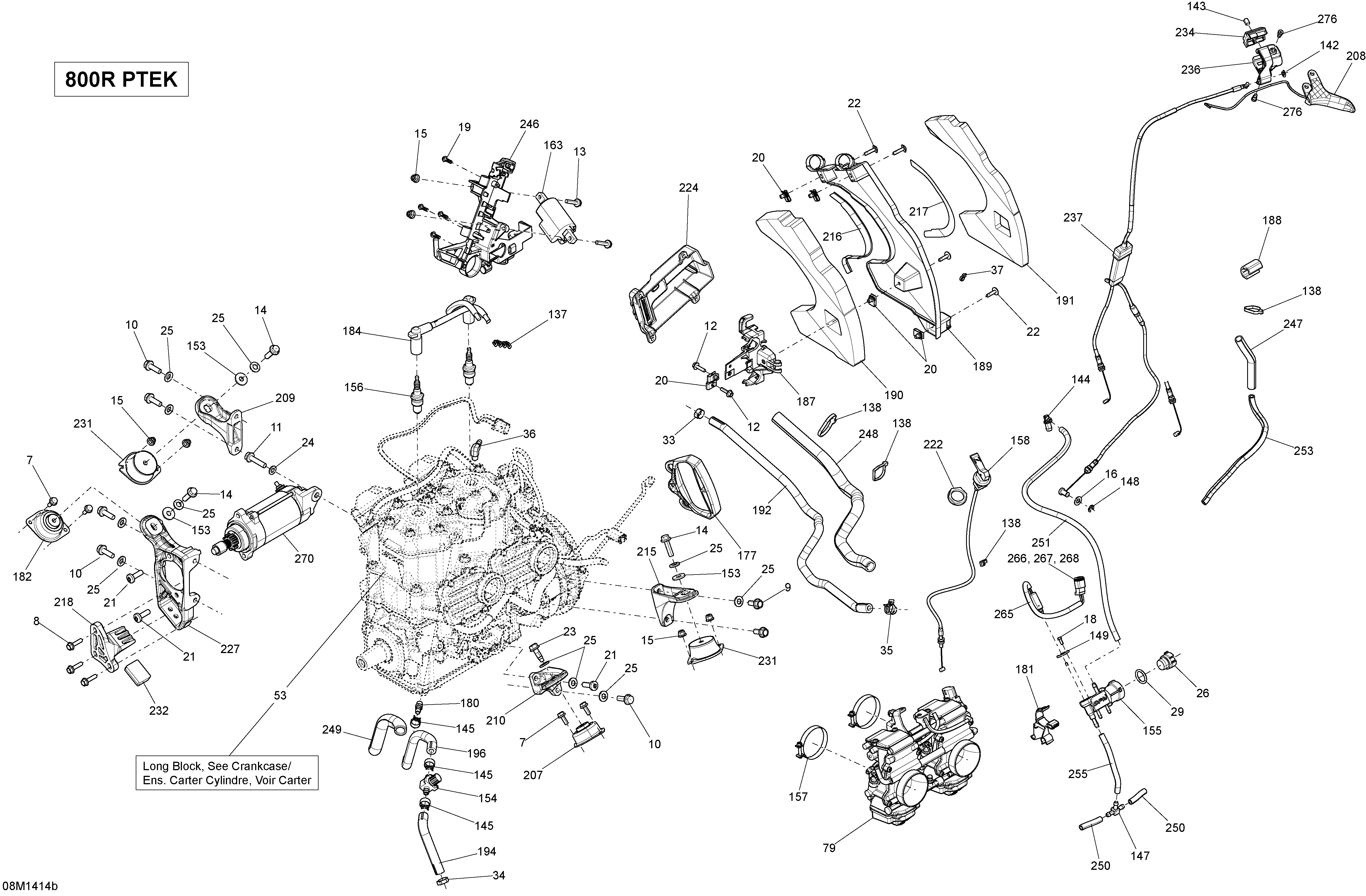

01- Engine And Engine Support 800R для BRP Ski-Doo SUMMIT SPORT 800R POWERTEK XP 154 - 2014
-
№АртикулНазвание
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
9207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
10207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
11207583544 Hex Flanged Screw M8 X 35, Scotch Grip. DELEHex Flanged Screw M8 X 35, Scotch Grip. DELE
-
12207652044 Flanged Hex. Screw M5 X 20. 800RFlanged Hex. Screw M5 X 20. 800R
-
13207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
14207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
18241140060 Screw K40 X 10. 800RScrew K40 X 10. 800R
-
19241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
20250000079 Panel Nut M5 X 0.8. 800RPanel Nut M5 X 0.8. 800R
-
21250000248 Torx Screw M8 X 25, Scotch Grip. DELETorx Screw M8 X 25, Scotch Grip. DELE
-
21250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
22250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
23250000570 Hex. Screw M8Hex. Screw M8
-
24250200008 Flat Washer With Teflon 8 mm. DELEFlat Washer With Teflon 8 mm. DELE
-
25250200146 Conical Spring Washer M8Conical Spring Washer M8
-
26270600009 Cap. 800RCap. 800R
-
29293300042 O-Ring. 800RO-Ring. 800R
-
33293650046 Oetiker ClampOetiker Clamp
-
34293650125 Oetiker ClampOetiker Clamp
-
35293650214 Norma Spring ClampNorma Spring Clamp
-
36293700045 Elbow Fitting 90°. 800RElbow Fitting 90°. 800R
-
37293750001 Tie-Rap 94 mm. 800RTie-Rap 94 mm. 800R
-
79403138805 Carburator Kit, TM40-B397. 800RCarburator Kit, TM40-B397. 800R
-
137410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
138414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
142414274500 CirclipCirclip
-
143414440800 Socket Set Screw M8 X 10Socket Set Screw M8 X 10
-
144414580700 Male ConnectorMale Connector
-
145414655700 Spring ClampSpring Clamp
-
147414729300 T-Fitting. 800RT-Fitting. 800R
-
148414753500 CirclipCirclip
-
149415061600 Solenoid Lock. 800RSolenoid Lock. 800R
-
153503183200 Washer, YellowWasher, Yellow
-
154512059324 Valve 5/16''Valve 5/16''
-
155512060002 Pressure Manifold Ass'y. 800RPressure Manifold Ass'y. 800R
-
156415128524 Spark Plug, NGK BR9ECS, 0.8 mmSpark Plug, NGK BR9ECS, 0.8 mm
-
157512059835 Gemi ClampGemi Clamp
-
158512060672 Choke CableChoke Cable
-
163512059968 Ignition CoilIgnition Coil
-
177512060136 Starter GripStarter Grip
-
180512060196 Male Connector 1/8''-27 NPTMale Connector 1/8''-27 NPT
-
181512060229 DPM Support. 800RDPM Support. 800R
-
182512060387 Rubber MountRubber Mount
-
184512060291 CableCable
-
187512060298 Solenoid SupportSolenoid Support
-
188512060313 ProtectorProtector
-
189512060338 Noise ShieldNoise Shield
-
190512060341 Inner Noise FoamInner Noise Foam
-
191512060342 Outer Noise FoamOuter Noise Foam
-
192512060347 Hose FormedHose Formed
-
194512060353 Hose FormedHose Formed
-
196512060357 Hose Formed Engine Outlet. 800RHose Formed Engine Outlet. 800R
-
207512060448 Rubber MountRubber Mount
-
208512060616 Throttle HandleThrottle Handle
-
209512060469 Front Support, MAGFront Support, MAG
-
210512060478 Rear Support, PTORear Support, PTO
-
215512060559 Rear Support, MAGRear Support, MAG
-
216512060574 Heat ShieldHeat Shield
-
217512060575 Heat ShieldHeat Shield
-
218512060576 Stopper SupportStopper Support
-
222512060671 Plastic NutPlastic Nut
-
224512060684 Calibrated Module, 800R PowerT.E.K.. 800RCalibrated Module, 800R PowerT.E.K.. 800R
-
227512060714 Front Support, PTO. 800RFront Support, PTO. 800R
-
231512060729 Rubber MountRubber Mount
-
232512060766 Stopper. 800RStopper. 800R
-
234512060859 Upper HousingUpper Housing
-
236512060860 Lower HousingLower Housing
-
237512060893 Throttle Cable. SUMMITThrottle Cable. SUMMIT
-
246512060924 Coils SupportCoils Support
-
247415079900 Tubing 10 mmTubing 10 mm
-
248415080000 Tubing 16 mmTubing 16 mm
-
253515175442 Tubing 6 mmTubing 6 mm
-
256415080200 Hose, Polyurethane. 800RHose, Polyurethane. 800R
-
265515175701 Solenoid Valve. 800RSolenoid Valve. 800R
-
266515175670 Female Terminal Housing, 2 Circuits. 800RFemale Terminal Housing, 2 Circuits. 800R
-
267515175675 Female Lock, 2 Circuits. 800RFemale Lock, 2 Circuits. 800R
-
268515175332 Vinyl Tubing, Low Temperature. 800RVinyl Tubing, Low Temperature. 800R
-
270515177389 Starter. DELEStarter. DELE
-
276732601143 Flanged ScrewFlanged Screw
