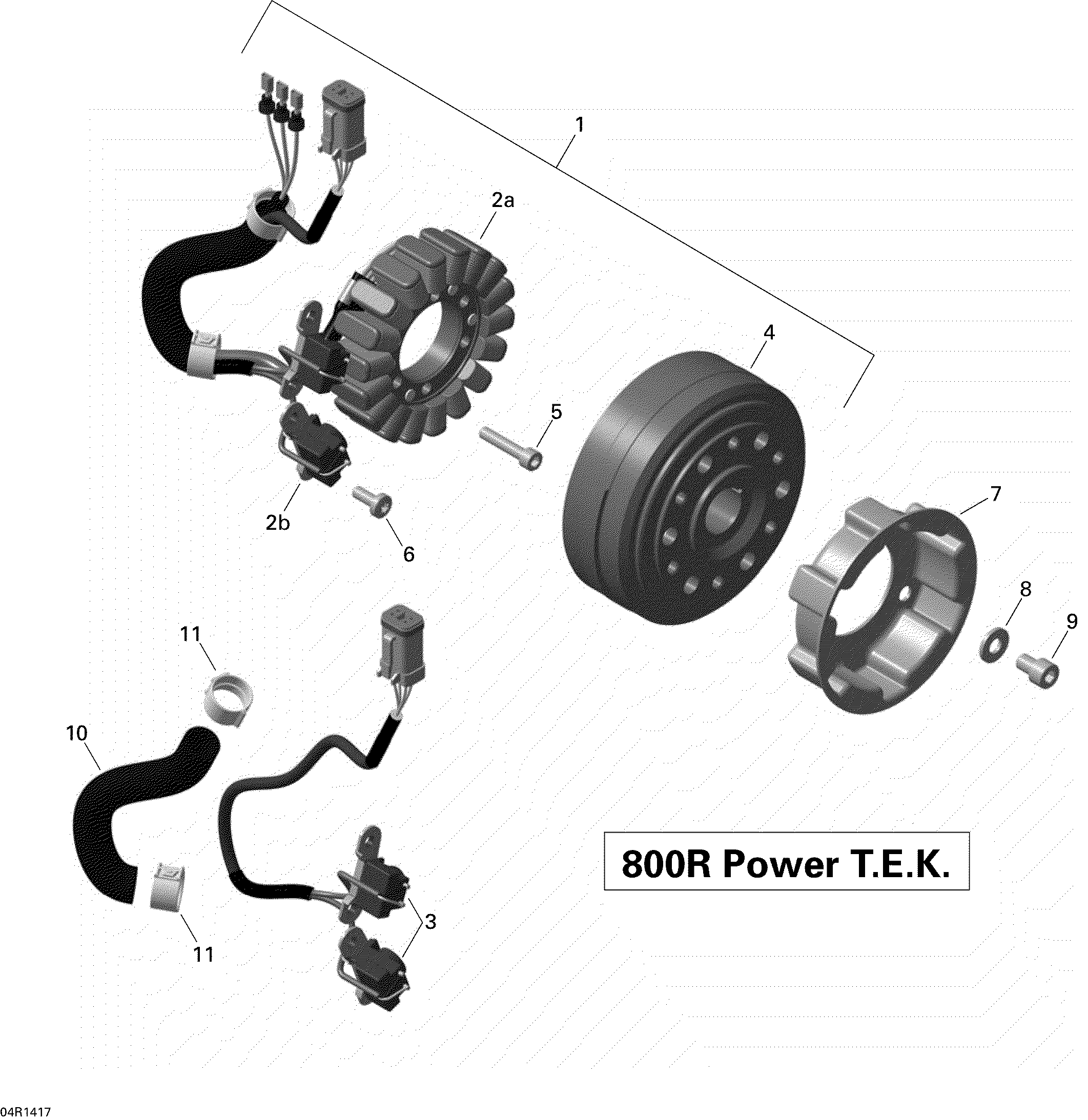

03- Magneto для BRP Ski-Doo SUMMIT SPORT 800R POWERTEK XP 154 - 2014
![](/wa-data/public/shop/sheme/bombardier/ski-doo/52308392-dfe6-42b3-acb9-7a18aee78699.png)
-
№АртикулНазвание
-
2a420889904 Stator Plate. Includes 2a to 2bStator Plate. Includes 2a to 2b
-
2b420966804 Pickup Ass'yPickup Ass'y
-
3410922948 Pickup Ass'yPickup Ass'y
-
4420665723 FlywheelFlywheel
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420640324 Torx Screw M6 X 16Torx Screw M6 X 16
-
7420852532 Starting PulleyStarting Pulley
-
8420827405 Flat WasherFlat Washer
-
9207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
10420460871 TubeTube
-
11420960896 Conduit ClipConduit Clip
