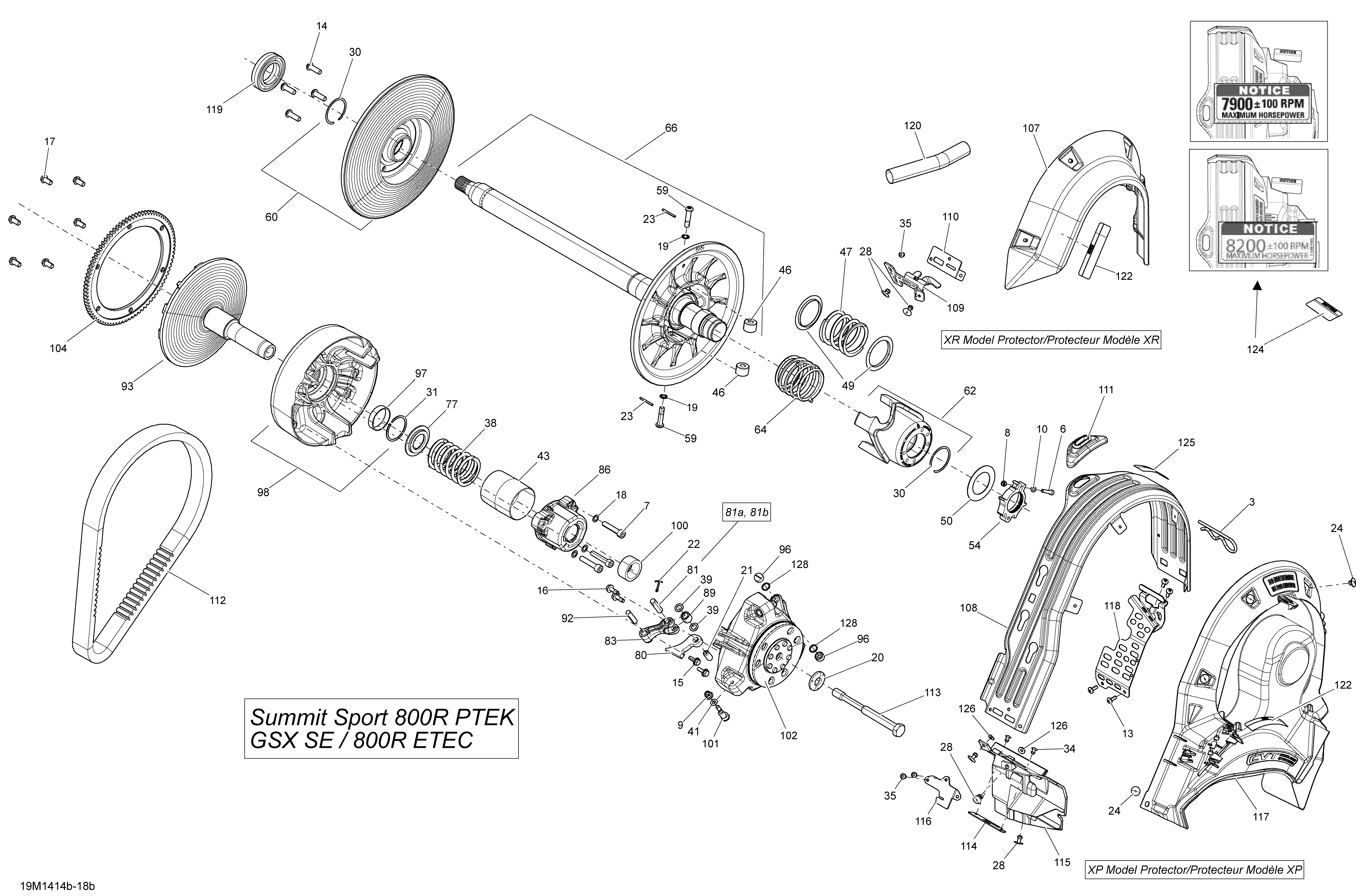

05- Pulley System 800R PTEK для BRP Ski-Doo SUMMIT SPORT 800R POWERTEK XP 154 - 2014
-
№АртикулНазвание
-
3114045200 Hair PinHair Pin
-
6205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
7205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
8232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10234051410 Flat Washer M5Flat Washer M5
-
13250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
14250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
15250000416 Serrated Hex. Flange Bolt M6Serrated Hex. Flange Bolt M6
-
16250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
17250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
18250200009 Lock Washer 8 mmLock Washer 8 mm
-
19250200009 Lock Washer 8 mmLock Washer 8 mm
-
20250200144 Conical Spring Washer M14Conical Spring Washer M14
-
21250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
22250400060 Cotter PinCotter Pin
-
23250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
24293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
28293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
30293370049 CirclipCirclip
-
31293370071 CirclipCirclip
-
34390909100 Avex RivetAvex Rivet
-
35390909200 Avex RivetAvex Rivet
-
38414762800 Spring, Green/violetSpring, Green/violet
-
38414817800 Spring (Blue/Violet). EuropeSpring (Blue/Violet). Europe
-
39417004302 Stopper WasherStopper Washer
-
41417005600 WasherWasher
-
43417009205 GuardGuard
-
46417127016 RollerRoller
-
47417127062 SpringSpring
-
49417127116 Swivel AbutmentSwivel Abutment
-
50417127155 WasherWasher
-
54415129604 Calibration Ass'yCalibration Ass'y
-
59417127294 Pivot StudPivot Stud
-
60417127317 Sliding Flange Ass'ySliding Flange Ass'y
-
62417127371 Cam Ass'yCam Ass'y
-
66417127389 Fix Flange Ass'yFix Flange Ass'y
-
77417222312 Spring SeatSpring Seat
-
80417223098 Ramp 441Ramp 441
-
80417222508 Ramp 413. EuropeRamp 413. Europe
-
81417223177 Dowel Pin Ass'yDowel Pin Ass'y
-
81417222594 Pin. EuropePin. Europe
-
83417222671 LeverLever
-
86417222759 Spring Cover Ass'ySpring Cover Ass'y
-
89417222947 RollerRoller
-
92417223164 Lever AxleLever Axle
-
93417223232 Fixed Flange Ass'yFixed Flange Ass'y
-
96417223271 Slider ShoeSlider Shoe
-
97417223086 BushingBushing
-
98417223444 Sliding Flange Ass'ySliding Flange Ass'y
-
100417223471 BushingBushing
-
101417223501 Calibration ScrewCalibration Screw
-
102417223666 Governor Cup Ass'yGovernor Cup Ass'y
-
104417223739 Ring GearRing Gear
-
108417300357 Belt GuardBelt Guard
-
111417300381 GuideGuide
-
112417300391 BeltBelt
-
113417300409 TRA 7 Bolt (M14 X 153.5 mm)TRA 7 Bolt (M14 X 153.5 mm)
-
114417300421 Reinforcement PlateReinforcement Plate
-
115417300422 Front SupportFront Support
-
116417300423 Front BracketFront Bracket
-
117417300439 CVT Air DuctCVT Air Duct
-
118417300448 Belt Guard BracketBelt Guard Bracket
-
119504152574 Ball BearingBall Bearing
-
122516005503 Decal, EnglishDecal, English
-
124516005505 RPM Sticker, EnglishRPM Sticker, English
-
125516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
126517225900 Flat WasherFlat Washer
-
128732401030 O-RingO-Ring
-
81a417222595 Threaded Pin, M6Threaded Pin, M6
-
81b250000407 Socket Set Screw M6 X 12Socket Set Screw M6 X 12
