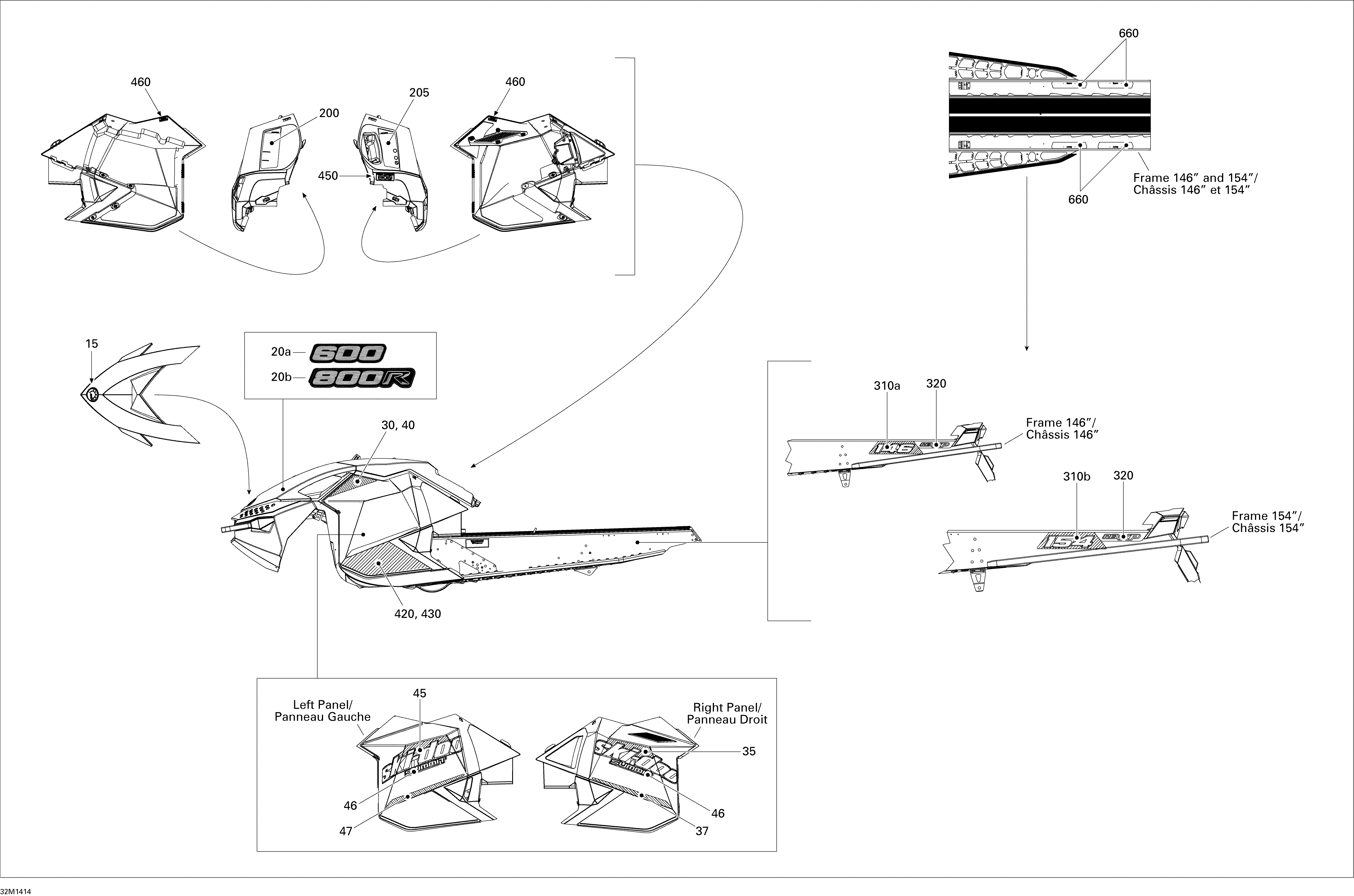

09- Decals 800RPTEK для BRP Ski-Doo SUMMIT SPORT 800R POWERTEK XP 154 - 2014
-
№АртикулНазвание
-
15219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
20b516006041 Hood Decal, Rotax 800R. 800RPTEK EngineHood Decal, Rotax 800R. 800RPTEK Engine
-
30516005306 RH Upper Side DecalRH Upper Side Decal
-
35516005308 RH Side DecalRH Side Decal
-
37516005310 RH Lower Side DecalRH Lower Side Decal
-
40516005305 LH Upper Side DecalLH Upper Side Decal
-
45516005307 LH Side DecalLH Side Decal
-
46516006364 Decal, SummitDecal, Summit
-
47516005309 LH Lower Side DecalLH Lower Side Decal
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
310b516006319 Decal, 154''. Track 154''Decal, 154''. Track 154''
-
320516006339 Decal, REV XPDecal, REV XP
-
420516006182 RH Lower DecalRH Lower Decal
-
430516006181 LH Lower DecalLH Lower Decal
-
450516005226 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
660516005154 Frame Top DecalFrame Top Decal
