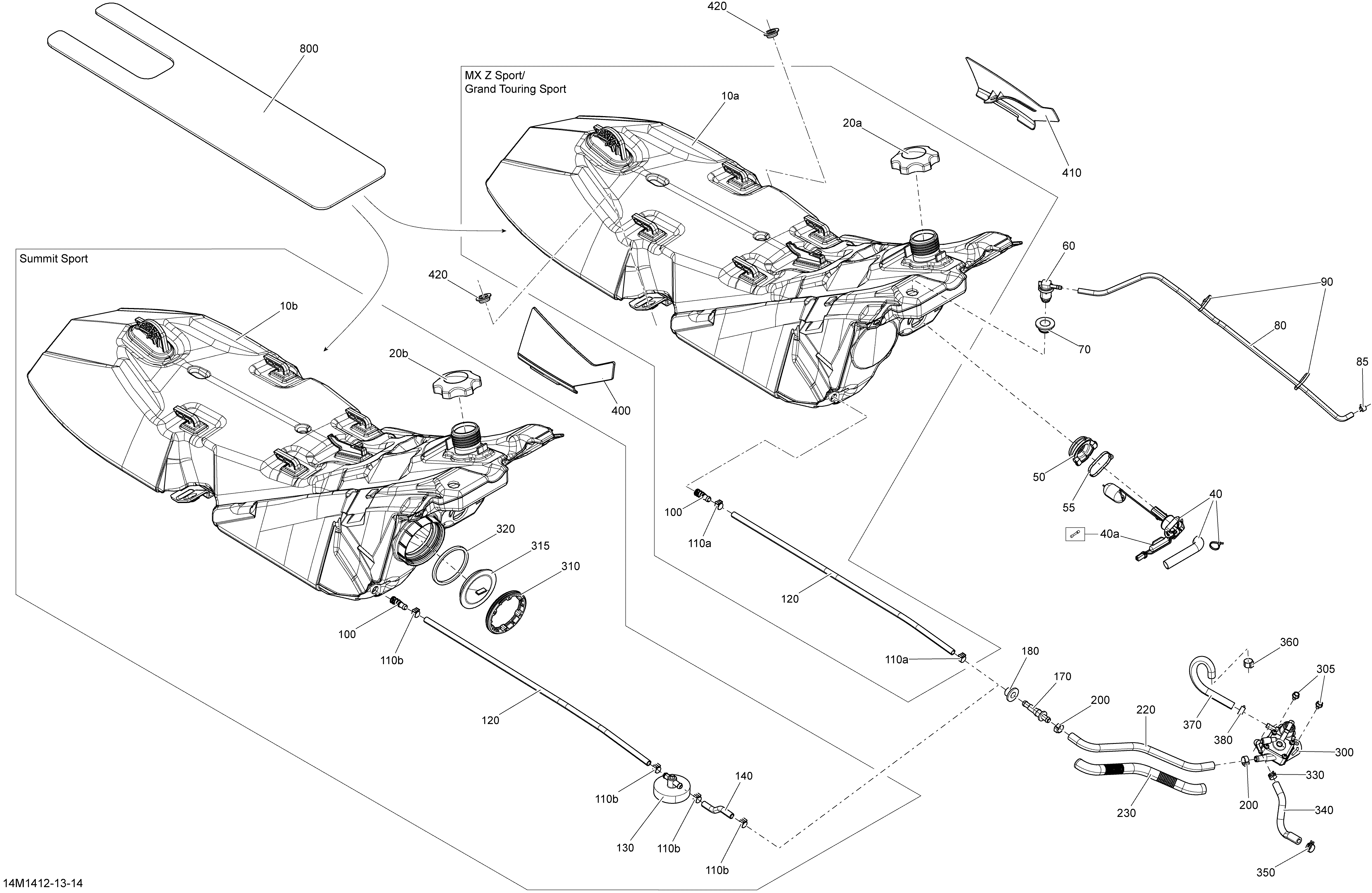

02- Fuel System для BRP Ski-Doo SUMMIT SPORT 800R POWERTEK XP 154 - 2014
-
№АртикулНазвание
-
10b513033696 Fuel TankFuel Tank
-
20b513033722 Fuel Tank Cap. North AmericaFuel Tank Cap. North America
-
20b513033723 Fuel Tank Cap. EuropeFuel Tank Cap. Europe
-
40513033642 Fuel Level Sensor Ass'y. Includes 40 to 40aFuel Level Sensor Ass'y. Includes 40 to 40a
-
40a710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
50513033606 GrommetGrommet
-
55293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
60513033188 Check ValveCheck Valve
-
70513033596 GrommetGrommet
-
80415080200 Hose, PolyurethaneHose, Polyurethane
-
85414554800 Spring ClampSpring Clamp
-
90414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
100414872100 Fuel FilterFuel Filter
-
110b513033010 Norma Spring ClampNorma Spring Clamp
-
120513033332 HoseHose
-
130513033353 Multi-Point Pick-UpMulti-Point Pick-Up
-
140513033352 Formed HoseFormed Hose
-
170414872700 Male ConnectorMale Connector
-
180513033435 GrommetGrommet
-
200293650053 Crimp ClampCrimp Clamp
-
220513033165 Formed HoseFormed Hose
-
230415080000 Tubing 16 mmTubing 16 mm
-
300513033184 Fuel PumpFuel Pump
-
305210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
310513033180 RingRing
-
315513033591 CapCap
-
320513033334 GasketGasket
-
330414415200 Spring ClampSpring Clamp
-
340513033327 Formed HoseFormed Hose
-
350513033029 Universal Spring ClampUniversal Spring Clamp
-
360293650125 Oetiker ClampOetiker Clamp
-
370513033343 Formed HoseFormed Hose
-
380414655700 Spring ClampSpring Clamp
-
400513033418 RH CapRH Cap
-
410513033419 LH CapLH Cap
-
420513033326 Shoulder BushingShoulder Bushing
-
800513033588 Insulating FoamInsulating Foam
