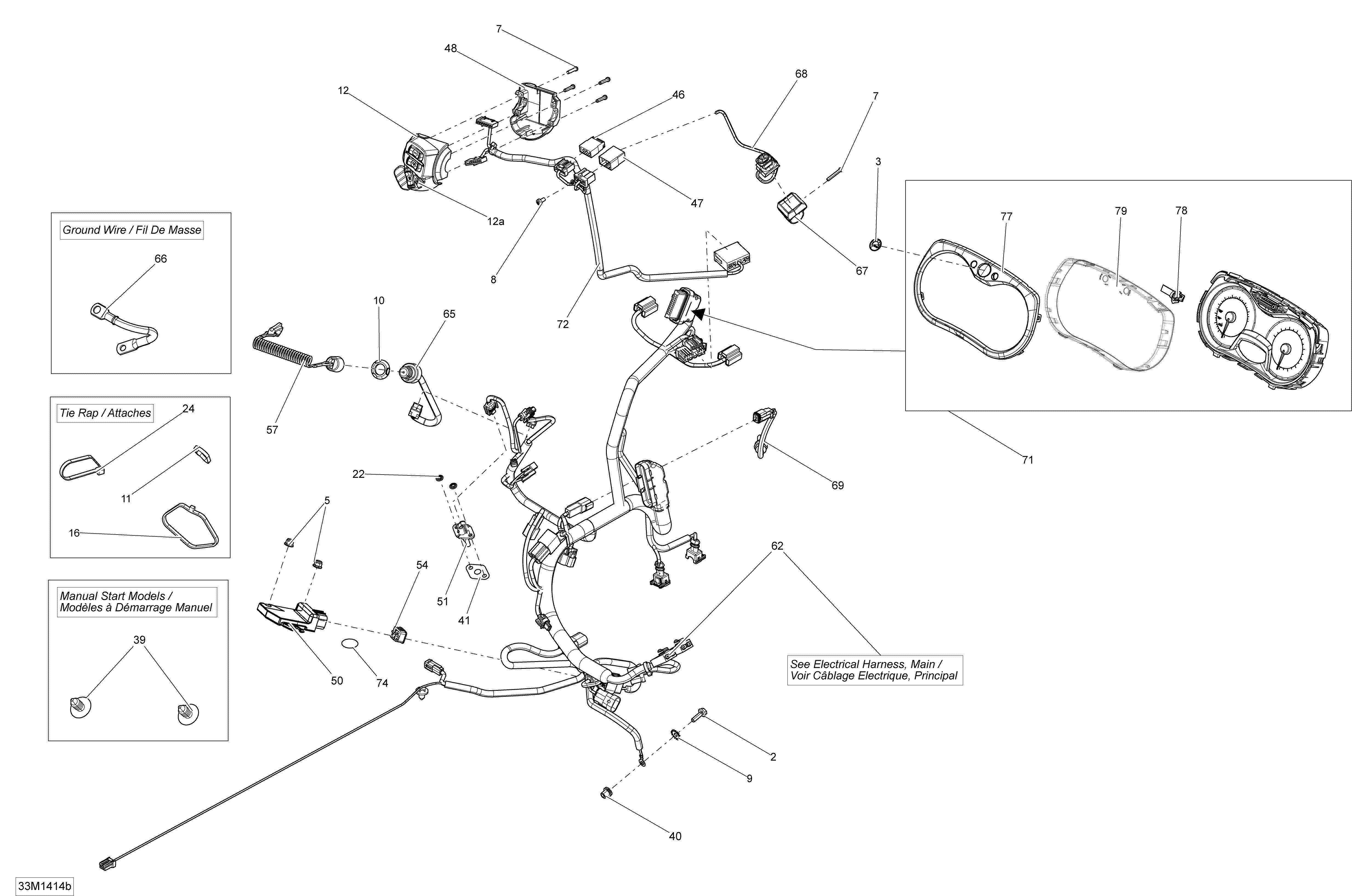

10- Electrical System 800R PTEK для BRP Ski-Doo SUMMIT SPORT 800R POWERTEK XP 154 - 2014
-
№АртикулНазвание
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7250000263 Torx Screw #8-18Torx Screw #8-18
-
8250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
9250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
10278002963 Safety NutSafety Nut
-
11293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
12515177022 LH HousingLH Housing
-
12a515176088 Start/RER ButtonStart/RER Button
-
16293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
22389804300 Push NutPush Nut
-
24414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
39414644300 DartDart
-
40293450275 InsertInsert
-
41508000769 SealSeal
-
46515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
47515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
48515175926 Housing Switch PlateHousing Switch Plate
-
50515176364 Voltage RegulatorVoltage Regulator
-
51515176366 Air Temperature SensorAir Temperature Sensor
-
54515176681 LockLock
-
57515177057 DESS CapDESS Cap
-
62515177096 Main harness Ass'yMain harness Ass'y
-
65515177249 DESS SwitchDESS Switch
-
66515177289 Fil de MasseFil de Masse
-
67515177310 Kill Switch SupportKill Switch Support
-
68515177362 Kill SwitchKill Switch
-
69515177471 Temperature SensorTemperature Sensor
-
71515177588 SpeedometerSpeedometer
-
72515177609 Steering Wiring HarnessSteering Wiring Harness
-
74518325560 Adhesive PatchAdhesive Patch
-
77415129370 Gauge RingGauge Ring
-
78415129355 Speedometer ButtonSpeedometer Button
-
79415129349 LensLens
