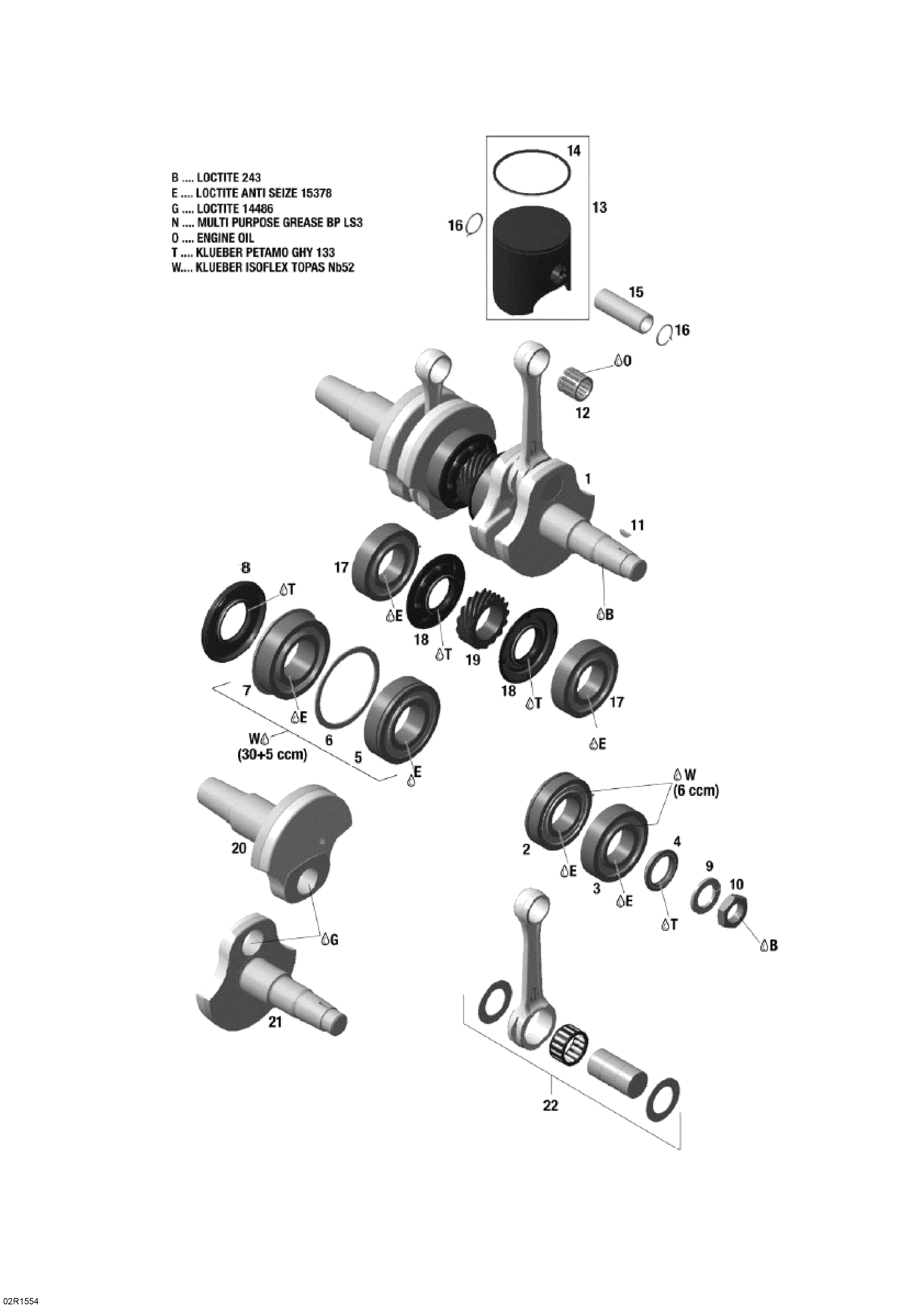

01- Crankshaft _02R1554 для BRP Ski-Doo Expedition SE 600 E-TEC - 2015

№

Артикул

Название
1

420890953 Crankshaft Ass'y. Includes 1 To 8

Crankshaft Ass'y. Includes 1 To 8

166 180 ₽
2

420832175 Ball Bearing

Ball Bearing

8 620 ₽
3

420832575 Ball Bearing

Ball Bearing

8 480 ₽
4

420931795 Oil Seal. Included In Gasket Kit

Oil Seal. Included In Gasket Kit

3 110 ₽
5

420832602 Ball Bearing

Ball Bearing

8 950 ₽
6

420926190 Washer

Washer

3 990 ₽
7

420832702 Ball Bearing

Ball Bearing

15 160 ₽
8

420931284 Oil Seal. Included In Gasket Kit

Oil Seal. Included In Gasket Kit

14 210 ₽
9

420945759 Lock Washer, 22 mm

Lock Washer, 22 mm

660 ₽
10

420842239 Hex. Nut, M22 X 1.5

Hex. Nut, M22 X 1.5

1 610 ₽
11

420246015 Woodruff Key

Woodruff Key

1 040 ₽
12

420832445 Needle Bearing

Needle Bearing

5 090 ₽
13

420892388 Piston Ass'y With Rings, 71.87 mm. Includes 13 To 14

Piston Ass'y With Rings, 71.87 mm. Includes 13 To 14

37 920 ₽
14

420815295 Semi-Trapez Ring

Semi-Trapez Ring

17 160 ₽
15

420916412 Piston Pin

Piston Pin

5 280 ₽
16

420845106 Piston Circlip. Included In Gasket Kit

Piston Circlip. Included In Gasket Kit

2 410 ₽
17

420832575 Ball Bearing

Ball Bearing

8 480 ₽
18

420931455 Oil Seal

Oil Seal

5 240 ₽
19

420834355 Central Gear

Central Gear

9 030 ₽
22

420890958 Rod Repair Kit, PTO Side

Rod Repair Kit, PTO Side

52 160 ₽
22

420890959 Rod Repair Kit, MAG Side

Rod Repair Kit, MAG Side

52 160 ₽
