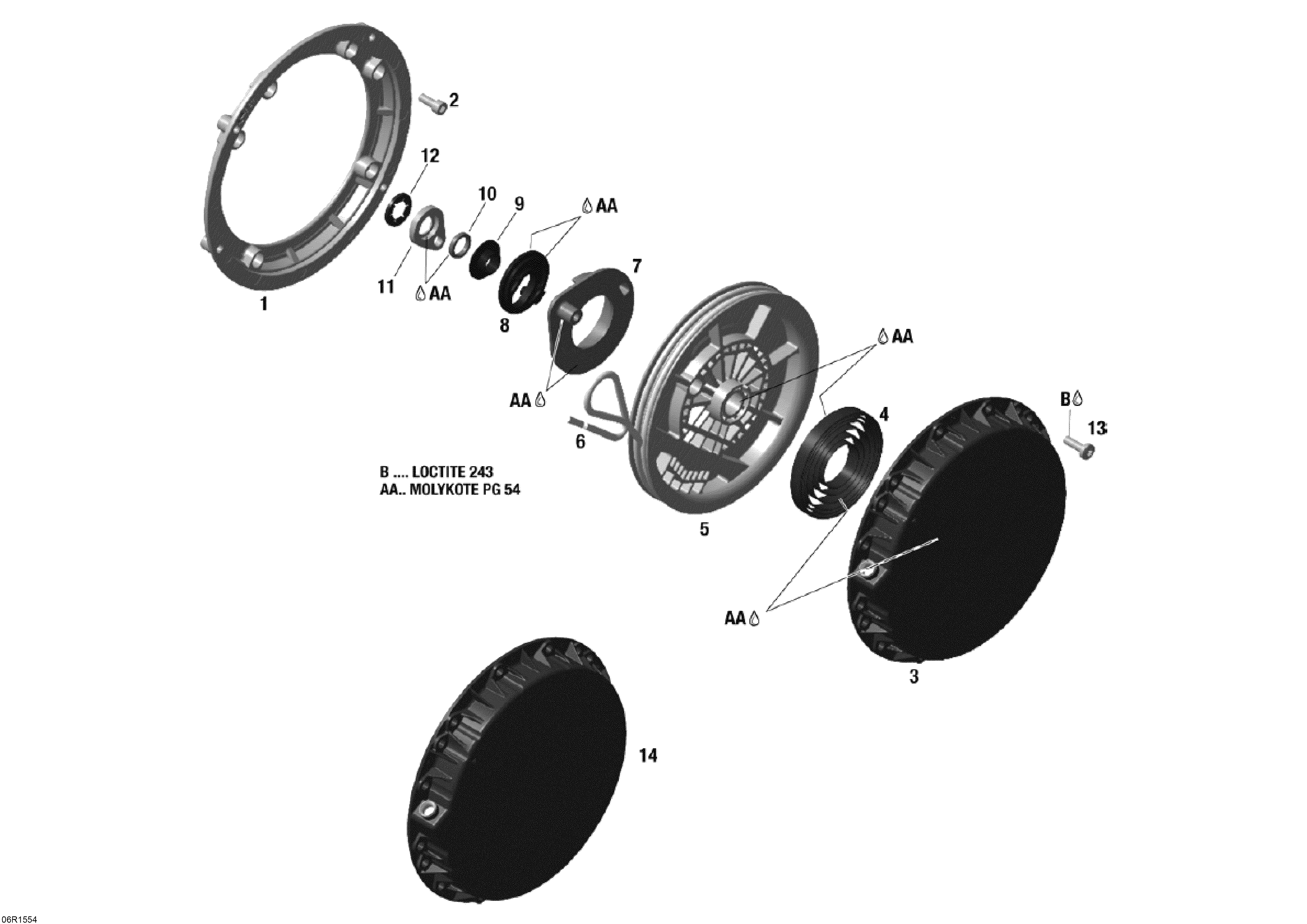

04- Rewind Starter _06R1554 для BRP Ski-Doo Expedition SE 600 E-TEC - 2015
-
№АртикулНазвание
-
1420810868 Flange ConnectorFlange Connector
-
2420241236 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
3420892619 Rewind Starter Ass'y. Includes 3 To 12, Electric StartRewind Starter Ass'y. Includes 3 To 12, Electric Start
-
3420910256 Starter HousingStarter Housing
-
4420939115 Rewind SpringRewind Spring
-
5420852288 Rope SheaveRope Sheave
-
6412500200 Starter Rope, MeterStarter Rope, Meter
-
7420852633 PawlPawl
-
8420852640 Pawl LockPawl Lock
-
9420847926 Stage SleeveStage Sleeve
-
10420250407 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
11420852520 Lock RingLock Ring
-
12420845560 Locking ElementLocking Element
-
13420941256 Hex. Collar ScrewHex. Collar Screw
-
14420910254 Cover. Electric StartCover. Electric Start
