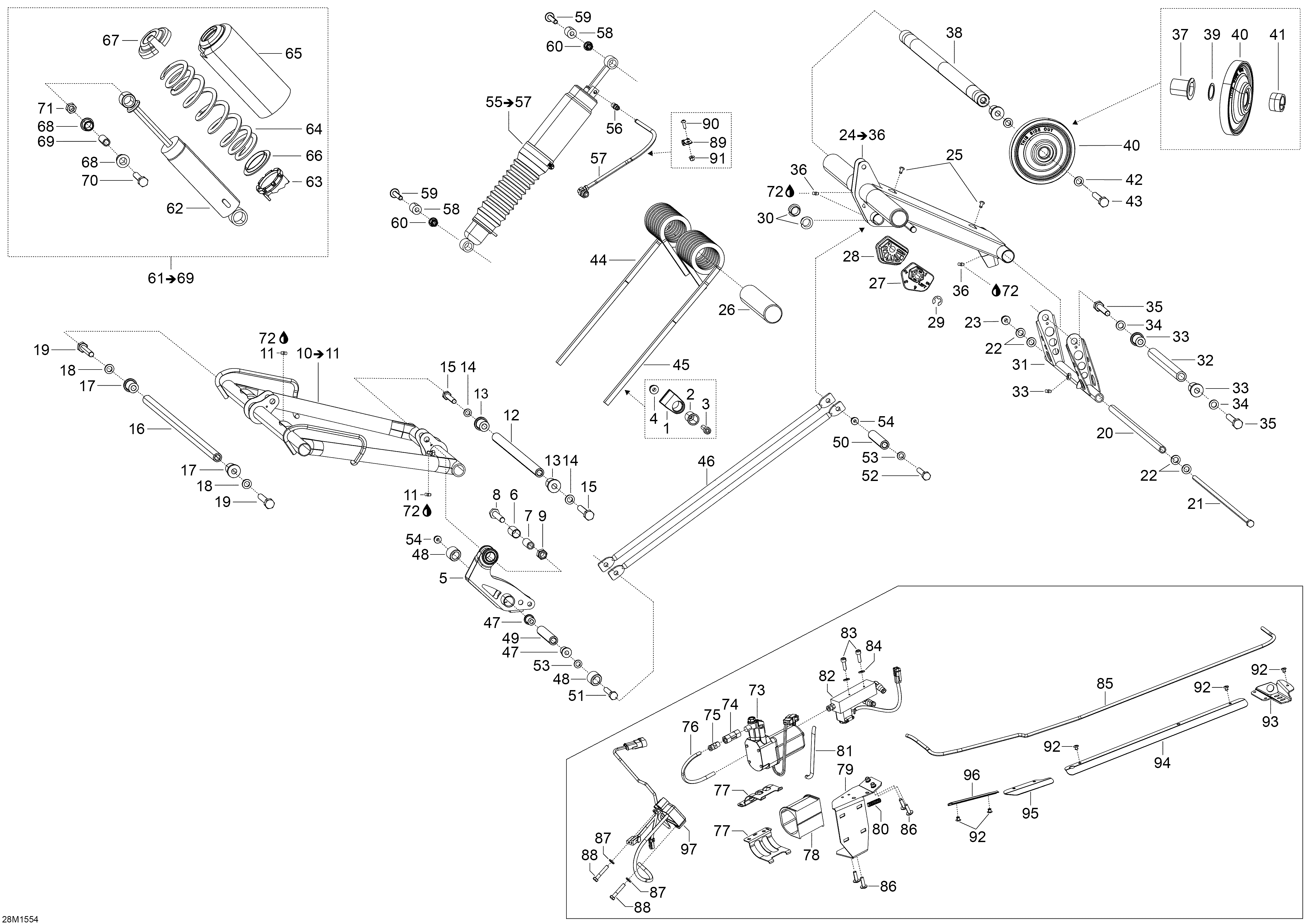

08- Rear Suspension B _28M1554 для BRP Ski-Doo Expedition SE 600 E-TEC - 2015
-
№АртикулНазвание
-
1503191183 Spring SupportSpring Support
-
2503190754 Retainer CushionRetainer Cushion
-
3205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5503192211 RockerRocker
-
6503193037 BushingBushing
-
7503189282 BushingBushing
-
8207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
9233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
10503193274 Front arm assy. Includes 10 To 11Front arm assy. Includes 10 To 11
-
11408200700 Grease FittingGrease Fitting
-
12503191390 Lower ShaftLower Shaft
-
13503189324 CushionCushion
-
14503192496 WasherWasher
-
15250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
16503191391 Upper ShaftUpper Shaft
-
17503189324 CushionCushion
-
18503189564 WasherWasher
-
19250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
20503191396 Axle PivotAxle Pivot
-
21503191397 Bolt 369mmBolt 369mm
-
22503189157 WasherWasher
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24503191709 Rear Arm Ass'y. Includes 24 To 36Rear Arm Ass'y. Includes 24 To 36
-
25414644300 DartDart
-
27503191565 LH Cam AdjusterLH Cam Adjuster
-
28503191566 RH Cam AdjusterRH Cam Adjuster
-
29293370013 E-CirclipE-Circlip
-
30503191555 Swivel BushingSwivel Bushing
-
31503191393 Welded Arm PivotWelded Arm Pivot
-
32503192330 Lower ShaftLower Shaft
-
33503191640 CushionCushion
-
34503189148 WasherWasher
-
35205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
36408200700 Grease FittingGrease Fitting
-
37503191451 CushionCushion
-
38503191405 Upper ShaftUpper Shaft
-
39503190328 WasherWasher
-
40503191738 Black Wheel Ass'y, 155 mmBlack Wheel Ass'y, 155 mm
-
41503191099 Retaining RingRetaining Ring
-
42503192491 WasherWasher
-
43250000484 Socket Screw M12 X 35Socket Screw M12 X 35
-
44503192377 Black RH Square SpringBlack RH Square Spring
-
45503192378 Black LH Square SpringBlack LH Square Spring
-
46503193026 Link RodLink Rod
-
47503191555 Swivel BushingSwivel Bushing
-
48503190114 SpacerSpacer
-
49503190113 Bar Axle (Short)Bar Axle (Short)
-
50503190643 Axle Bar (Long)Axle Bar (Long)
-
51230083044 Hex. Screw M8 X 130Hex. Screw M8 X 130
-
52207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
53503189157 WasherWasher
-
54233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
55503193000 Rear Shock Ass'yRear Shock Ass'y
-
56503191939 Male Pneumatic ConnectorMale Pneumatic Connector
-
57503192649 Pneumatic Hose Ass'yPneumatic Hose Ass'y
-
58414936000 CushionCushion
-
59207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
60233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
62503192266 Center ShockCenter Shock
-
63505073625 Adjustement CamAdjustement Cam
-
64503191880 Black SpringBlack Spring
-
65503193663 ProtectorProtector
-
66503191872 Spring GuideSpring Guide
-
67706200881 Spring StopperSpring Stopper
-
68503189117 CushionCushion
-
69503189282 BushingBushing
-
70207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
71233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
73706001349 CompressorCompressor
-
74706000940 Check ValveCheck Valve
-
75706000869 ConnectorConnector
-
76415129507 HoseHose
-
77503193103 Compressor BracketCompressor Bracket
-
78706000631 Compressor IsolatorCompressor Isolator
-
79503193484 SupportSupport
-
80513033638 Protector TubeProtector Tube
-
81515175442 Tubing 6 mmTubing 6 mm
-
82503193009 Air manifold Ass'yAir manifold Ass'y
-
83205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
84234061410 Flat Washer 6 mmFlat Washer 6 mm
-
85503193034 TubeTube
-
86250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
87234061410 Flat Washer 6 mmFlat Washer 6 mm
-
88207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
89503193393 ClampClamp
-
90235551494 Torx Screw M5 X 14Torx Screw M5 X 14
-
91233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
92293150102 Rivet 3/16''Rivet 3/16''
-
93503193004 BracketBracket
-
94503193006 Hose ProtectorHose Protector
-
95503193007 Hose ProtectorHose Protector
-
96503193011 Painted Hose ProtectorPainted Hose Protector
-
97515177125 Compressor ModuleCompressor Module
