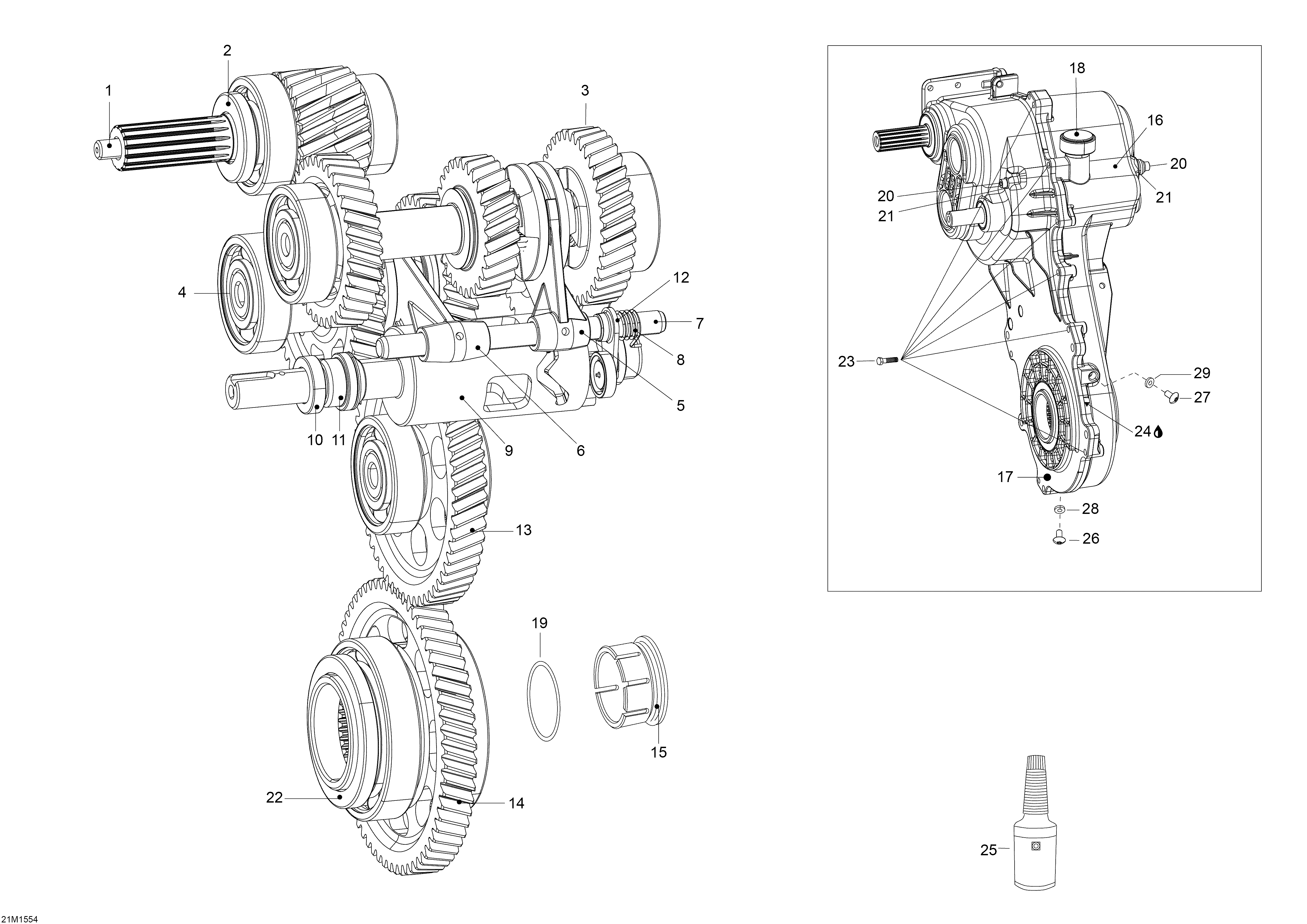

05- Transmission _21M1554 для BRP Ski-Doo Expedition SE 600 E-TEC - 2015
-
№АртикулНазвание
-
-619230059 Transmission Ass'y (High Ratio)Transmission Ass'y (High Ratio)
-
1619230009 Countershaft Ass'yCountershaft Ass'y
-
2619230010 Oil sealOil seal
-
3619230053 Main Shaft Ass'yMain Shaft Ass'y
-
4619230057 Reverse Shaft Ass'yReverse Shaft Ass'y
-
5619230055 Fork, ForwardsFork, Forwards
-
6619230015 Fork, reverseFork, reverse
-
7619230016 ShaftShaft
-
8619230017 SpringSpring
-
9619230056 Shifting DrumShifting Drum
-
10619230052 Oil SealOil Seal
-
11619230020 BushingBushing
-
12619230021 Locking leverLocking lever
-
13619230022 Middle gearMiddle gear
-
14619230023 Lower gearLower gear
-
15504152821 Magnetic CapMagnetic Cap
-
16504153194 Cover, OutsideCover, Outside
-
17504153243 Cover, InsideCover, Inside
-
18619230027 Plug, oilPlug, oil
-
19619230028 O-RingO-Ring
-
20619230029 ScrewScrew
-
21619230030 WasherWasher
-
22619230031 Oil sealOil seal
-
23619230033 Screw M6 x 20Screw M6 x 20
-
24420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
26619230037 Allen Screw M8 x 10Allen Screw M8 x 10
-
27619230038 Allen Screw M10 x 16Allen Screw M10 x 16
-
28615580812 Gasket RingGasket Ring
-
29619230047 Seal RingSeal Ring
