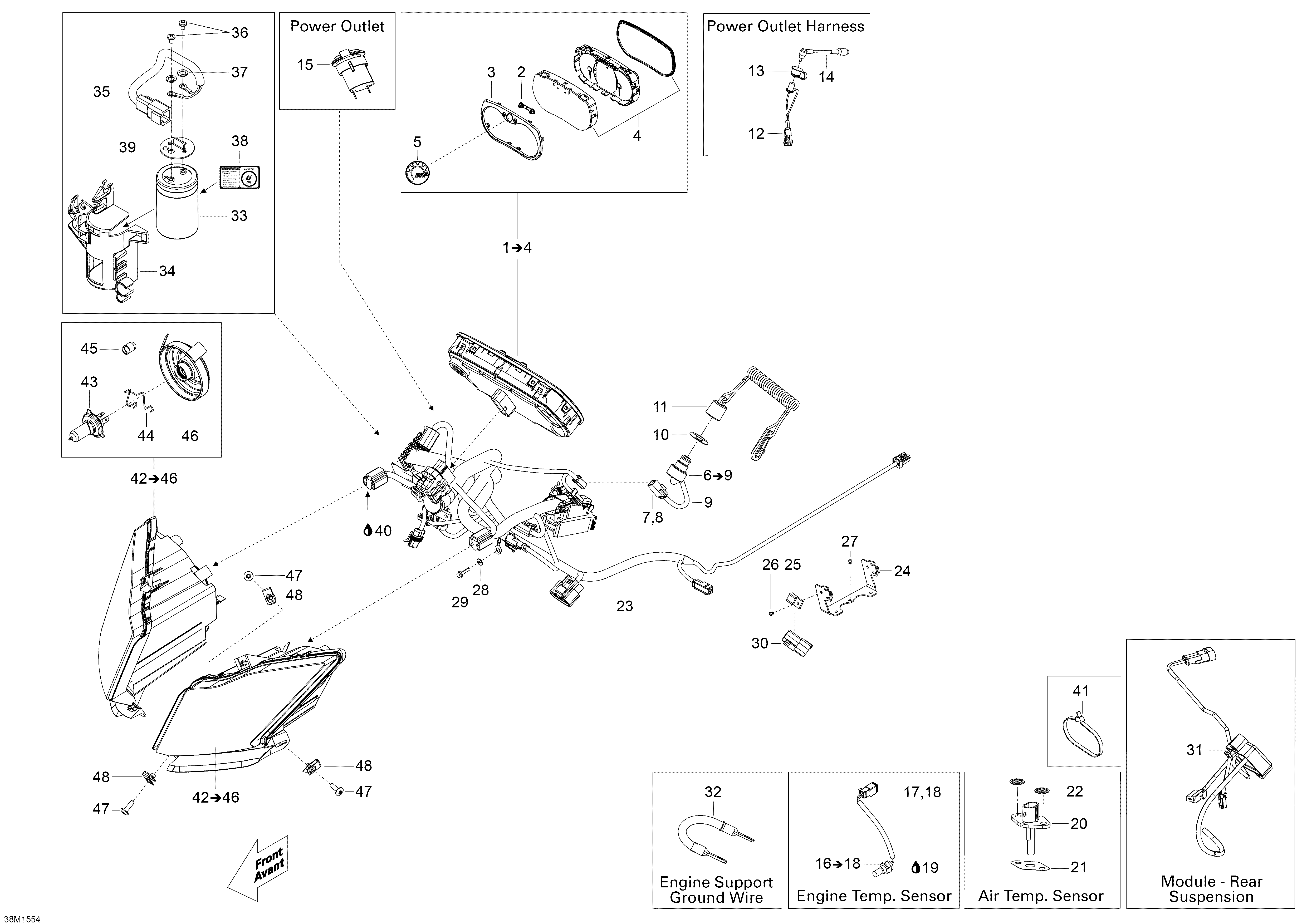

10- Electrical System _38M1554 для BRP Ski-Doo Expedition SE 600 E-TEC - 2015
-
№АртикулНазвание
-
1515177854 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6515177249 DESS Switch. Includes 6 To 9DESS Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 Tubing 12 mmTubing 12 mm
-
10278002963 Safety NutSafety Nut
-
11515177057 DESS CapDESS Cap
-
12515177187 Visor HarnessVisor Harness
-
13572103300 CapCap
-
14515175851 ExtensionExtension
-
15710001248 Outlet DCOutlet DC
-
16515177813 Temperature Sensor. Includes 16 To 18Temperature Sensor. Includes 16 To 18
-
17515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
18278000632 Female TerminalFemale Terminal
-
20515176366 Air Temperature SensorAir Temperature Sensor
-
21508000769 SealSeal
-
22389804300 Push NutPush Nut
-
23515177683 Main HarnessMain Harness
-
24515177593 Fusebox SupportFusebox Support
-
25270000141 ClipClip
-
26293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
27390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
28234141601 Lock Washer 4 mmLock Washer 4 mm
-
29250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
30515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
31515177125 Compressor ModuleCompressor Module
-
32515177289 Ground WireGround Wire
-
33515177272 CapacitorCapacitor
-
34515176607 Capacitor SupportCapacitor Support
-
35515176605 Capacitor HarnessCapacitor Harness
-
36250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
37250200026 Lock washerLock washer
-
38516005515 Capacitor Decal (English)Capacitor Decal (English)
-
39515177193 CapCap
-
41414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
41293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
42517304194 RH Headlamp Ass'y. Includes 42 To 46RH Headlamp Ass'y. Includes 42 To 46
-
42517304195 LH Headlamp Ass'y. Includes 42 To 46LH Headlamp Ass'y. Includes 42 To 46
-
43515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
45515176498 CapCap
-
46515176499 CoverCover
-
47250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
48250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
