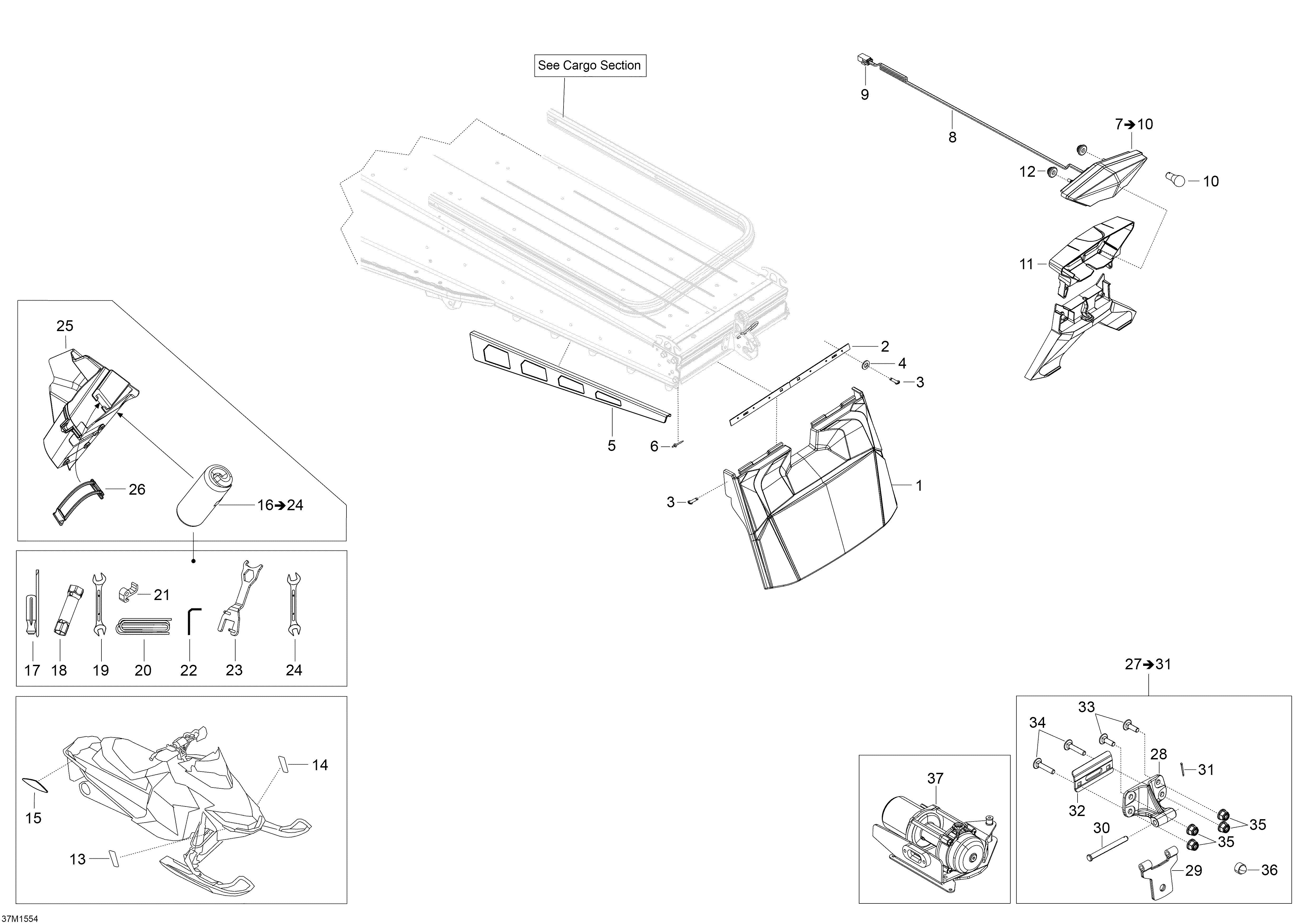

09- Utilities _37M1554 для BRP Ski-Doo Expedition SE 600 E-TEC - 2015
-
№АртикулНазвание
-
1520001406 Snow GuardSnow Guard
-
2520001021 PlatePlate
-
3250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
7520000848 Rear Light. Includes 7 To 10Rear Light. Includes 7 To 10
-
8520000849 Rear Wiring HarnessRear Wiring Harness
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10520000758 BulbBulb
-
11511000764 Rear Light CoverRear Light Cover
-
12705003666 Rubber GrommetRubber Grommet
-
13520000843 Yellow RH ReflectorYellow RH Reflector
-
14520000844 Yellow LH ReflectorYellow LH Reflector
-
15705003412 Red Lateral ReflectorRed Lateral Reflector
-
16529000065 Tool Kit. Includes 16 To 24Tool Kit. Includes 16 To 24
-
17529000004 Screw DriverScrew Driver
-
18529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
19529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
20412500200 Starter Rope, MeterStarter Rope, Meter
-
21529000060 Starter GripStarter Grip
-
22520001142 Spacing ToolSpacing Tool
-
23520000988 Wrench SuspensionWrench Suspension
-
2434017 WrenchWrench
-
25520000720 Tool Kit RackTool Kit Rack
-
26520000528 LatchLatch
-
27520001398 Hitch Ass'y. Includes 27 To 31Hitch Ass'y. Includes 27 To 31
-
30560309200 Pin-RetainerPin-Retainer
-
3141031 Cotter PinCotter Pin
-
32520000727 PlatePlate
-
33207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
34207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
35233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3628056 CoverCover
-
37619400069 Winch KitWinch Kit
