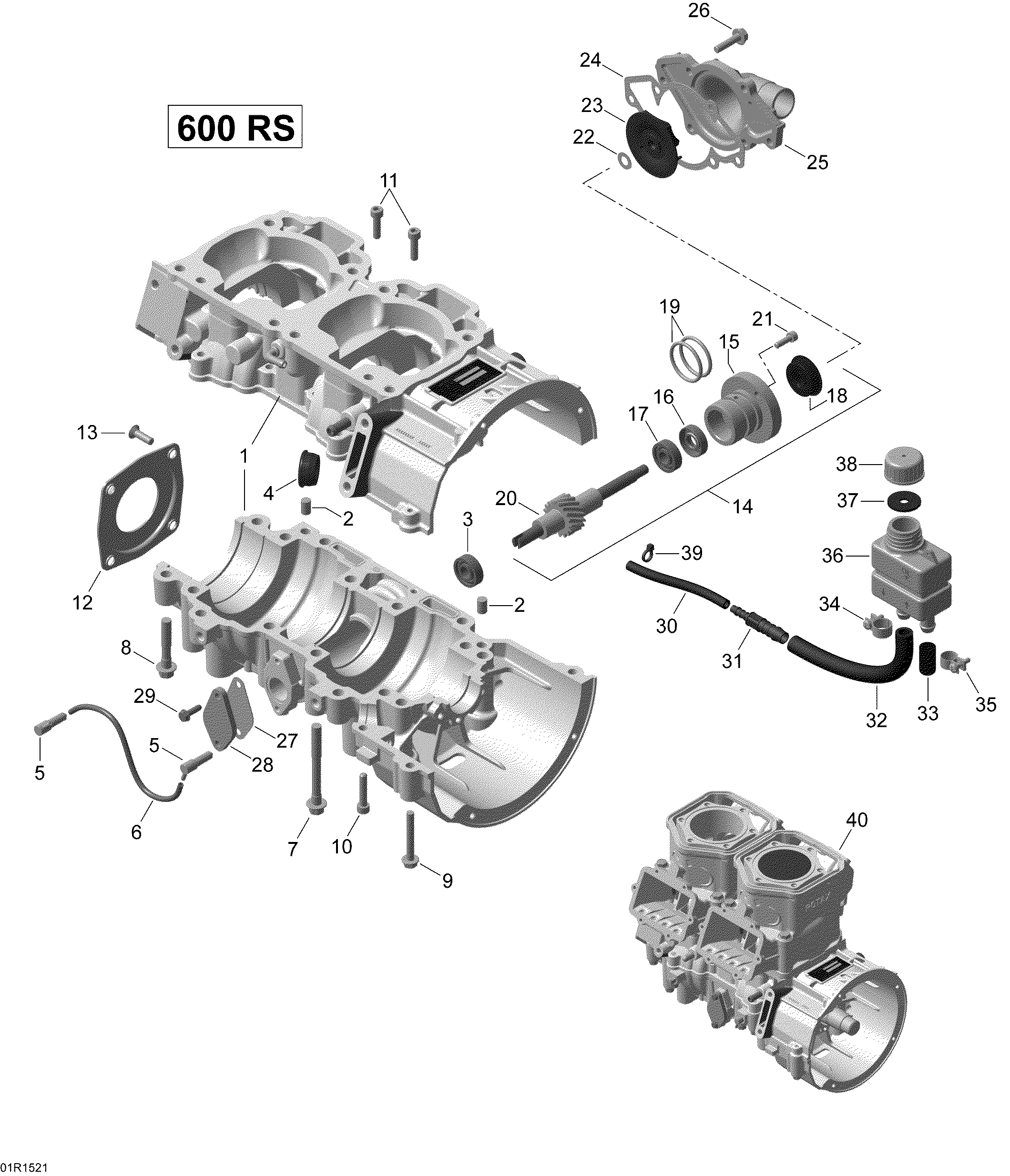

01- Crankcase _01R1521 для BRP Ski-Doo MXZ X-RS 600HOE XS RS - 2015
-
№АртикулНазвание
-
1420893291 Crankcase Ass'y. Includes 1 to 6Crankcase Ass'y. Includes 1 to 6
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420232100 Ball BearingBall Bearing
-
4420860965 Cable GrommetCable Grommet
-
5420956510 Check ValveCheck Valve
-
6414413800 Oil HoseOil Hose
-
7420640836 Hex. Collar Screw M8 X 75Hex. Collar Screw M8 X 75
-
8420640431 Hex. Collar Screw M8 X 45Hex. Collar Screw M8 X 45
-
9420640311 Hex. Collar Screw M6 X 45Hex. Collar Screw M6 X 45
-
10205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
11420840401 Socket Head Screw M6 X 22Socket Head Screw M6 X 22
-
12420812420 CoverCover
-
13420941436 Screw M6 X 20Screw M6 X 20
-
14420837421 Water Pump/Oil Pump Ass'y. Includes 14 to 20Water Pump/Oil Pump Ass'y. Includes 14 to 20
-
16420230195 Oil SealOil Seal
-
17420232100 Ball BearingBall Bearing
-
18420650370 Rotary SealRotary Seal
-
19420950890 O-RingO-Ring
-
21420840511 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
22420227945 WasherWasher
-
23420222505 Water ImpellerWater Impeller
-
24420931810 GasketGasket
-
25420922630 Water Pump HousingWater Pump Housing
-
26420240034 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
27420931566 GasketGasket
-
28420810825 Cover PlateCover Plate
-
29420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
30415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
31420874370 FittingFitting
-
32420956239 Oil TubeOil Tube
-
33420960279 Closure CapClosure Cap
-
34420951260 ClampClamp
-
35420951241 ClampClamp
-
36420956240 Oil Tank Ass'y. Includes 36 to 38Oil Tank Ass'y. Includes 36 to 38
-
37420850350 Rubber GasketRubber Gasket
-
38420956250 Oil Tank CapOil Tank Cap
-
39420866710 Tie RapTie Rap
-
40420059324 Short Block 593 RSShort Block 593 RS
