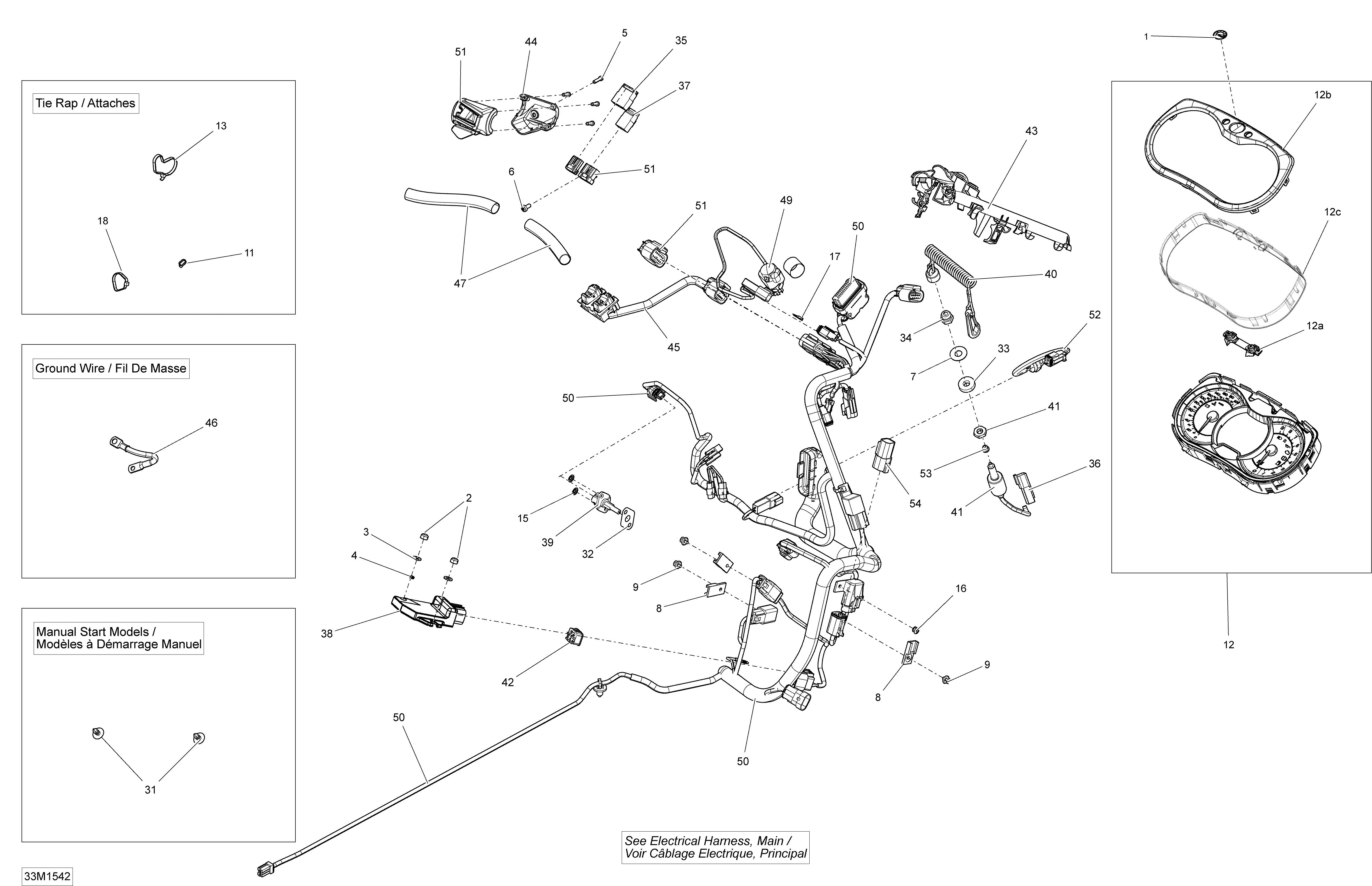

10- Electrical System _33M1542 для BRP Ski-Doo MXZ X-RS 600HOE XS RS - 2015
-
№АртикулНазвание
-
1219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
2232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
3234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
5250000671 Torx ScrewTorx Screw
-
6250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
7250200032 WasherWasher
-
8270000141 ClipClip
-
9293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
11293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
12515177769 Speedometer. Includes 12 To 12cSpeedometer. Includes 12 To 12c
-
12a415129355 Speedometer ButtonSpeedometer Button
-
12b415129348 Gauge RingGauge Ring
-
12c415129349 LensLens
-
13293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
15389804300 Push NutPush Nut
-
16390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
17409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
18414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31414644300 DartDart
-
32508000769 SealSeal
-
33510004418 WasherWasher
-
34515145900 Switch NutSwitch Nut
-
35515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
36515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
37515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
38515176364 Voltage RegulatorVoltage Regulator
-
39515176366 Air Temperature SensorAir Temperature Sensor
-
40515176462 Cap Ass'yCap Ass'y
-
41515175653 Brake SwitchBrake Switch
-
42515176681 LockLock
-
43515177134 Connector PlateConnector Plate
-
44515177149 LH Switch Housing PlateLH Switch Housing Plate
-
45515177154 Double Switch ModuleDouble Switch Module
-
46515177289 Ground WireGround Wire
-
47415129879 Protector TubeProtector Tube
-
49515177454 Kill SwitchKill Switch
-
50515177567 Main HarnessMain Harness
-
51515177678 LH Switch HousingLH Switch Housing
-
52515177813 Temperature SensorTemperature Sensor
-
53570151100 Plunger CapPlunger Cap
-
54710003006 HousingHousing
