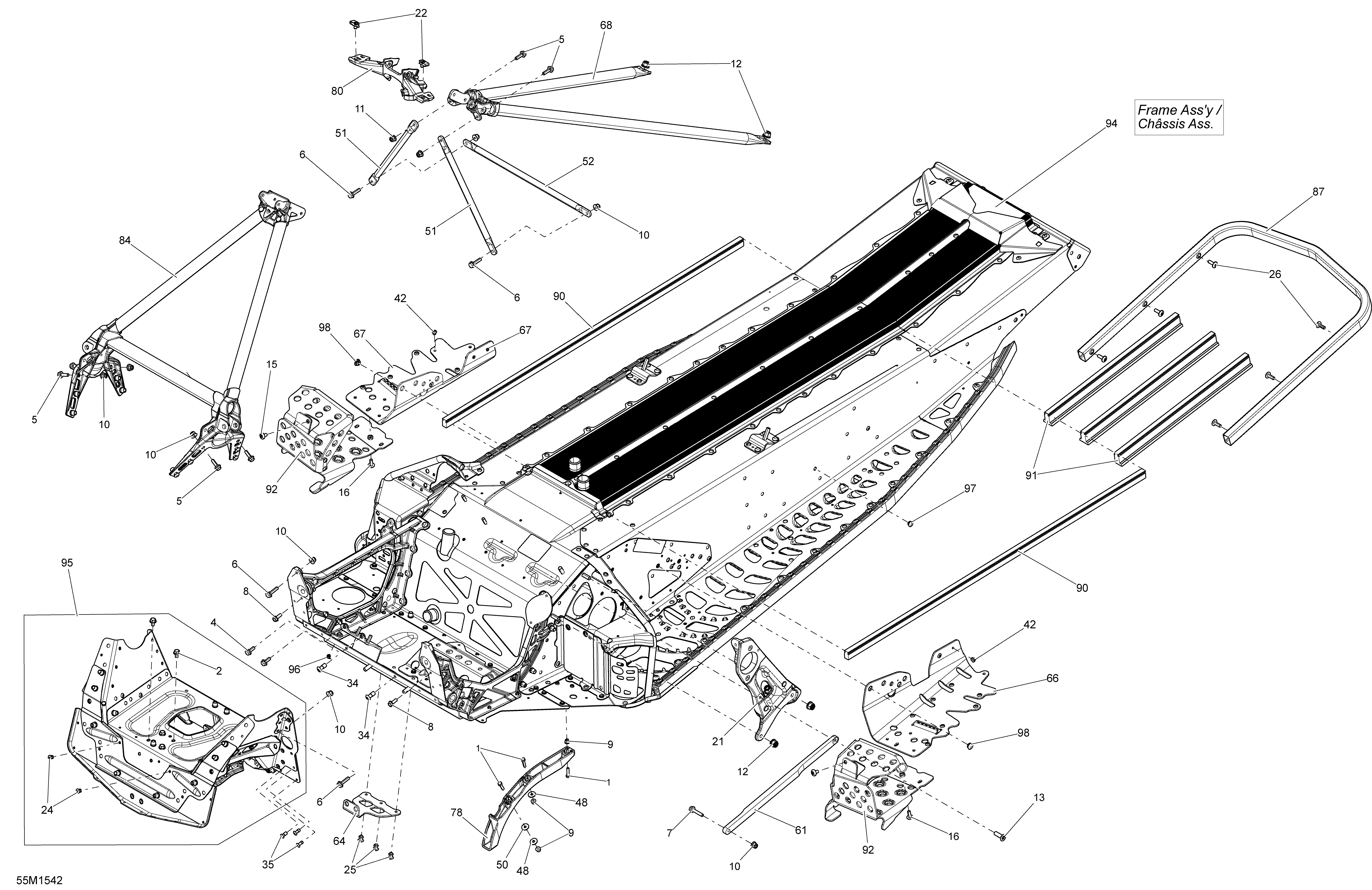

09- Frame And Components _55M1542 для BRP Ski-Doo MXZ X-RS 600HOE XS RS - 2015
-
№АртикулНазвание
-
1207152044 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
2207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
4207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
5207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
7207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
8210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
9233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
12233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13250000143 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
15250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
16250000365 Torx Screw M6 X 16Torx Screw M6 X 16
-
21518328346 Pulley SupportPulley Support
-
22250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
24293150144 Stavex RivetStavex Rivet
-
25293150147 Hemlock RivetHemlock Rivet
-
26250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
34293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
35293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
42390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
48391301600 WasherWasher
-
50517124300 WasherWasher
-
51518325114 Upper Column SupportUpper Column Support
-
52518325115 Center Column SupportCenter Column Support
-
61518326118 LinkLink
-
64518326466 Module ReinforcementModule Reinforcement
-
66518327131 LH BracketLH Bracket
-
67518327132 RH BracketRH Bracket
-
68518326559 Rear MemberRear Member
-
78518326973 Front ProtectorFront Protector
-
80518327145 Sub A SupportSub A Support
-
84518327565 Front MemberFront Member
-
87518327637 Black Rear BumperBlack Rear Bumper
-
90518328040 Front ProtectorFront Protector
-
91518328041 Rear ProtectorRear Protector
-
92518328106 RH FootrestRH Footrest
-
92518328107 LH FootrestLH Footrest
-
94415129959 Frame Ass'y, RacingFrame Ass'y, Racing
-
95518328551 S-ModuleS-Module
-
96293730053 Black Dart 5 mmBlack Dart 5 mm
-
97293730047 Black Dart 8 mmBlack Dart 8 mm
-
98293730060 Black Dart 10 mmBlack Dart 10 mm
