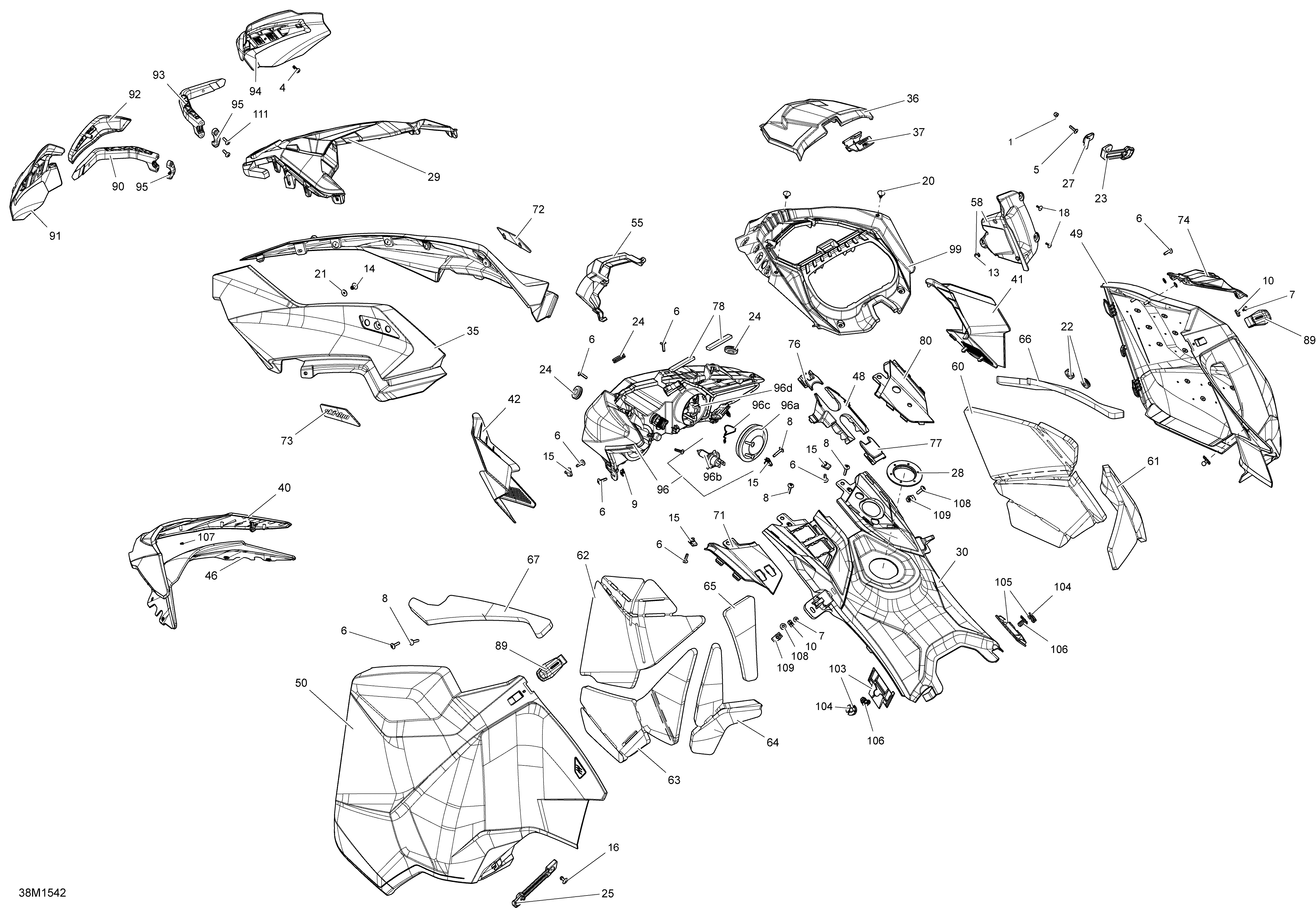

09- Hood _38M1542 для BRP Ski-Doo MXZ X-RS 600HOE XS RS - 2015
-
№АртикулНазвание
-
1233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
4250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
5250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
6250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
7250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
8250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
9250100035 Jack Nut M5Jack Nut M5
-
10250100156 Weld Nut M4Weld Nut M4
-
13275500241 Black CapBlack Cap
-
14293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
15250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
16293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293150170 Pop Rivet 5/32''Pop Rivet 5/32''
-
20414644300 DartDart
-
21517124300 WasherWasher
-
22517302841 GrommetGrommet
-
23517303612 RH Panel LatchRH Panel Latch
-
24517303756 GrommetGrommet
-
25517303808 LH Panel LatchLH Panel Latch
-
27517304221 Latch SupportLatch Support
-
28517304518 Console NutConsole Nut
-
29517304796 Deep Black Center HoodDeep Black Center Hood
-
30517305641 Black Rear ConsoleBlack Rear Console
-
35517305575 Yellow Sunburst RH HoodYellow Sunburst RH Hood
-
35517305576 Yellow Sunburst LH HoodYellow Sunburst LH Hood
-
36517304912 Upper Storage Access CoverUpper Storage Access Cover
-
37517304917 Cover LatchCover Latch
-
40517304922 Short Windshield SupportShort Windshield Support
-
41517304923 RH Air Deflector ConsoleRH Air Deflector Console
-
42517304924 LH Air Deflector ConsoleLH Air Deflector Console
-
48517304970 Console SupportConsole Support
-
49517305508 Black RH PanelBlack RH Panel
-
50517305510 Deep Black LH PanelDeep Black LH Panel
-
55517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
58517305060 Deep Black RH ConsoleDeep Black RH Console
-
60517305082 RH Upper Panel FoamRH Upper Panel Foam
-
61517305085 RH Rear Panel FoamRH Rear Panel Foam
-
62517305086 LH Upper Panel FoamLH Upper Panel Foam
-
63517305087 LH Center Panel FoamLH Center Panel Foam
-
64517305088 LH Lower Panel FoamLH Lower Panel Foam
-
65517305089 LH Rear Panel FoamLH Rear Panel Foam
-
66517305090 RH Rear Hood FoamRH Rear Hood Foam
-
67517305091 LH Rear Hood FoamLH Rear Hood Foam
-
71517305128 Deep Black LH Front ConsoleDeep Black LH Front Console
-
72517305137 RH Hood Filler PlateRH Hood Filler Plate
-
73517305138 LH Hood Filler PlateLH Hood Filler Plate
-
74517305140 RH Panel Vent GridRH Panel Vent Grid
-
76517305147 Deep Black Support Console CapDeep Black Support Console Cap
-
77517305148 Support Console CapSupport Console Cap
-
78517305157 Seal JointSeal Joint
-
80517305183 Deep Black RH Front ConsoleDeep Black RH Front Console
-
89517305279 Panel LatchPanel Latch
-
90517305290 LH ArmLH Arm
-
91517305291 LH DeflectorLH Deflector
-
92517305589 LH CapLH Cap
-
92517305588 RH CapRH Cap
-
93517305293 RH ArmRH Arm
-
94517305294 RH DeflectorRH Deflector
-
95517305296 BrideBride
-
96517305497 Headlamp. Includes 96 To 96dHeadlamp. Includes 96 To 96d
-
96a219400070 CapCap
-
96b515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
96c219800282 Holder BracketHolder Bracket
-
96d219800281 SpringSpring
-
99517305512 Deep Black Indicator SupportDeep Black Indicator Support
-
103517305722 LH Panel Clip Ass'yLH Panel Clip Ass'y
-
104517305723 RingRing
-
105517305724 RH Panel Clip Ass'yRH Panel Clip Ass'y
-
106517305734 PinPin
-
107250100158 Push NutPush Nut
-
108250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
109250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
111250000130 Torx Screw M5 X 20Torx Screw M5 X 20
