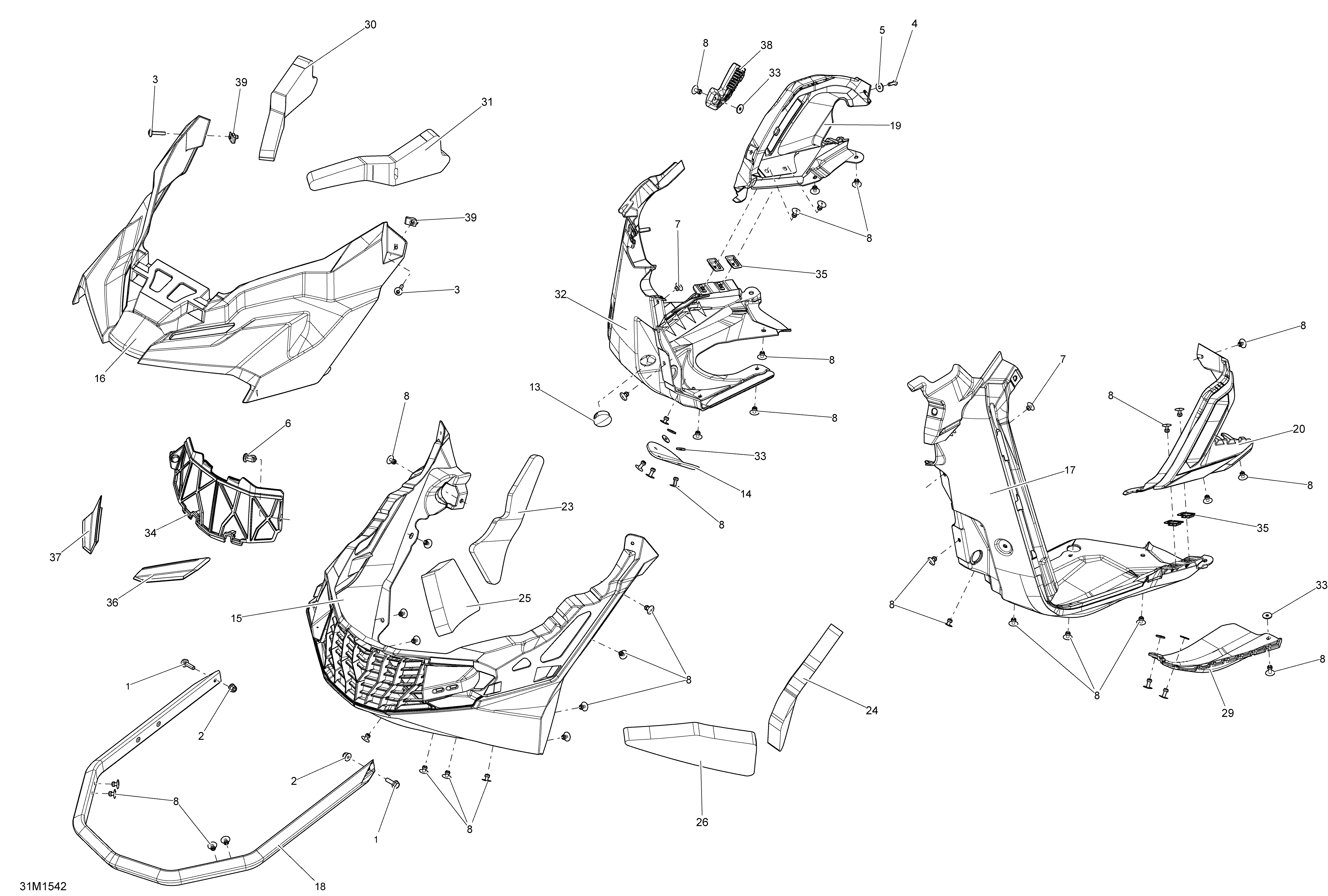

09- Bottom Pan _31M1542 для BRP Ski-Doo MXZ X-RS 600HOE XS RS - 2015
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
4250000652 Socket Screw M5 X 16Socket Screw M5 X 16
-
5250200025 Washer M5Washer M5
-
6293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
7293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
8293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
13414916600 Nylon CapNylon Cap
-
14502006935 Snow DeflectorSnow Deflector
-
15502007404 Yellow Front Bottom PanYellow Front Bottom Pan
-
16502007397 Yellow Bottom Pan CapYellow Bottom Pan Cap
-
17502007254 Deep Black LH Bottom PanDeep Black LH Bottom Pan
-
18502007176 Black Front BumperBlack Front Bumper
-
19502007306 Deep Black RH Side Bottom Pan PanelDeep Black RH Side Bottom Pan Panel
-
20502007304 Deep Black LH Side Bottom Pan PanelDeep Black LH Side Bottom Pan Panel
-
23502007243 RH Bottom Pan Upper FoamRH Bottom Pan Upper Foam
-
24502007244 LH Bottom Pan Upper FoamLH Bottom Pan Upper Foam
-
25502007245 RH Bottom Pan Lower FoamRH Bottom Pan Lower Foam
-
26502007246 LH Bottom Pan Lower FoamLH Bottom Pan Lower Foam
-
29502007261 Guard PlateGuard Plate
-
30502007263 RH Bottom Pan Cap FoamRH Bottom Pan Cap Foam
-
31502007264 LH Bottom Pan Cap FoamLH Bottom Pan Cap Foam
-
32502007253 Deep Black RH Bottom PanDeep Black RH Bottom Pan
-
33517124300 WasherWasher
-
34517305029 Pre-FilterPre-Filter
-
35517305109 Rivet PlateRivet Plate
-
36517305122 LH CapLH Cap
-
37517305123 RH CapRH Cap
-
38517305280 Stopper BumperStopper Bumper
-
39250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
