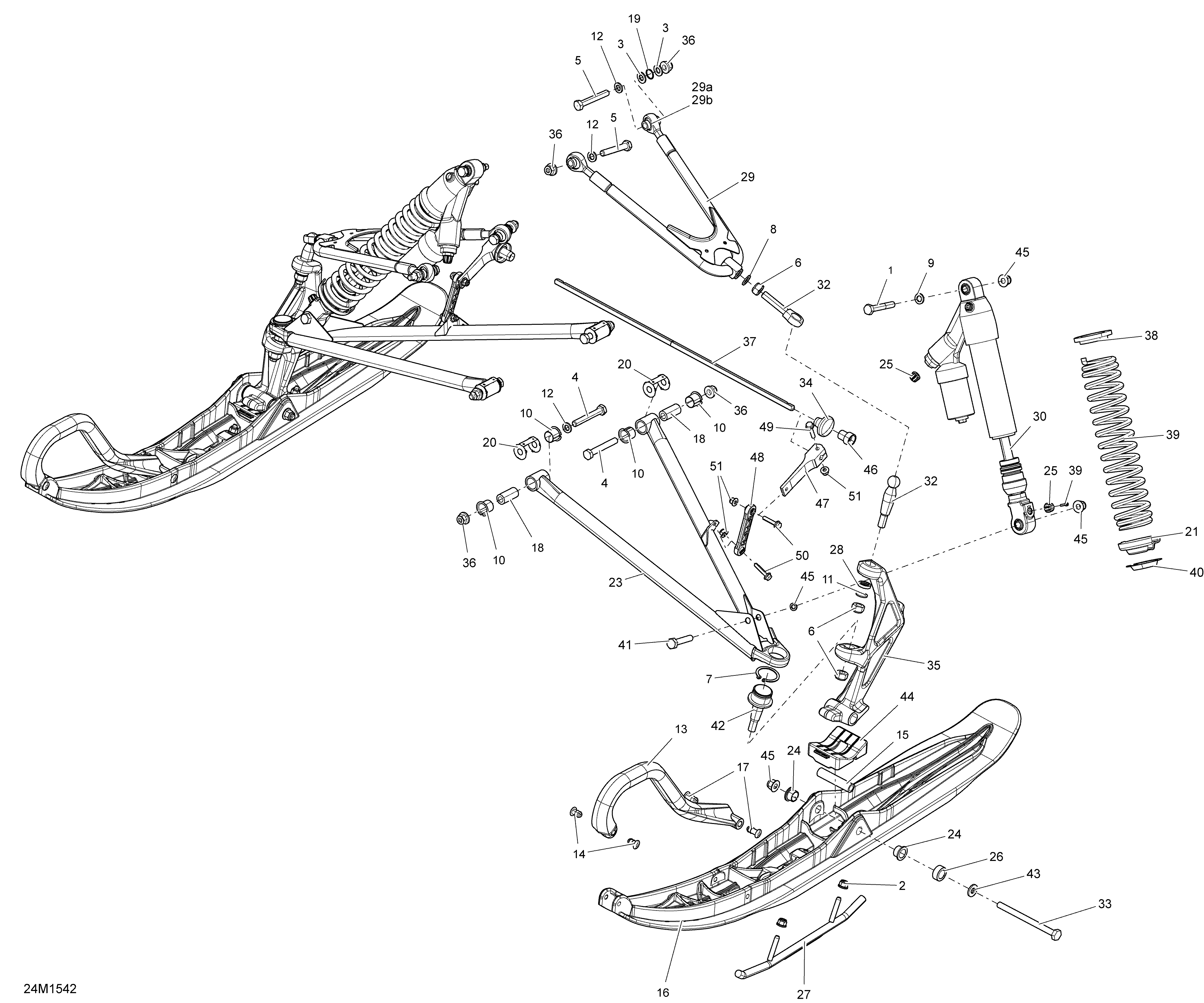

07- Front Suspension And Ski _24M1542 для BRP Ski-Doo MXZ X-RS 600HOE XS RS - 2015
-
№АртикулНазвание
-
1207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
2233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3234001410 Flat Washer 10 mmFlat Washer 10 mm
-
4250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
5250000387 Screw Hex. M10 X 65Screw Hex. M10 X 65
-
6250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
6232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
7293370035 CirclipCirclip
-
8503189276 WasherWasher
-
9503189564 WasherWasher
-
10503191766 CushionCushion
-
11503192491 WasherWasher
-
12503192496 WasherWasher
-
13505073138 Black HandleBlack Handle
-
14505071812 RetainerRetainer
-
15506133300 SpacerSpacer
-
16505072205 Black Pilot Ski 5.7XBlack Pilot Ski 5.7X
-
17505072133 RetainerRetainer
-
18505072401 Aluminum BushingAluminum Bushing
-
19505072448 O-RingO-Ring
-
20505072634 Wear PlateWear Plate
-
21505072635 Spring StopperSpring Stopper
-
23505072654 RH Lower ArmRH Lower Arm
-
23505072655 LH Lower ArmLH Lower Arm
-
24505072690 Leg CushionLeg Cushion
-
25505072753 Adjustment KnobAdjustment Knob
-
26505072807 SpacerSpacer
-
27860201043 Round Carbide RunnerRound Carbide Runner
-
28505073506 SpacerSpacer
-
29505073527 LH Upper ArmLH Upper Arm
-
29505073528 RH Upper ArmRH Upper Arm
-
29505073534 RH Upper Arm. Includes 29 To 29bRH Upper Arm. Includes 29 To 29b
-
29a505073532 Ball JointBall Joint
-
29b732610019 RH Hex. Jam Nut M12RH Hex. Jam Nut M12
-
30505073694 LH Front ShockLH Front Shock
-
30505073695 RH Front ShockRH Front Shock
-
32505073561 Upper Ball JointUpper Ball Joint
-
33250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
34572091300 CapCap
-
35505073362 Black LH Leg SkiBlack LH Leg Ski
-
35505073363 Black RH Leg SkiBlack RH Leg Ski
-
36250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
37505072602 StabilisatorStabilisator
-
38505073537 Deep Black SpringDeep Black Spring
-
39250000644 Allen Screw M3 X 10Allen Screw M3 X 10
-
40706200793 CapCap
-
41207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
42505072682 Lower Ball JointLower Ball Joint
-
43503192496 WasherWasher
-
44505072594 Ski StopperSki Stopper
-
45233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
46505072064 BushingBushing
-
47505072394 Stabilisator LeverStabilisator Lever
-
48505072204 Double Ball Joint LinkDouble Ball Joint Link
-
49207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
50207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
51233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
