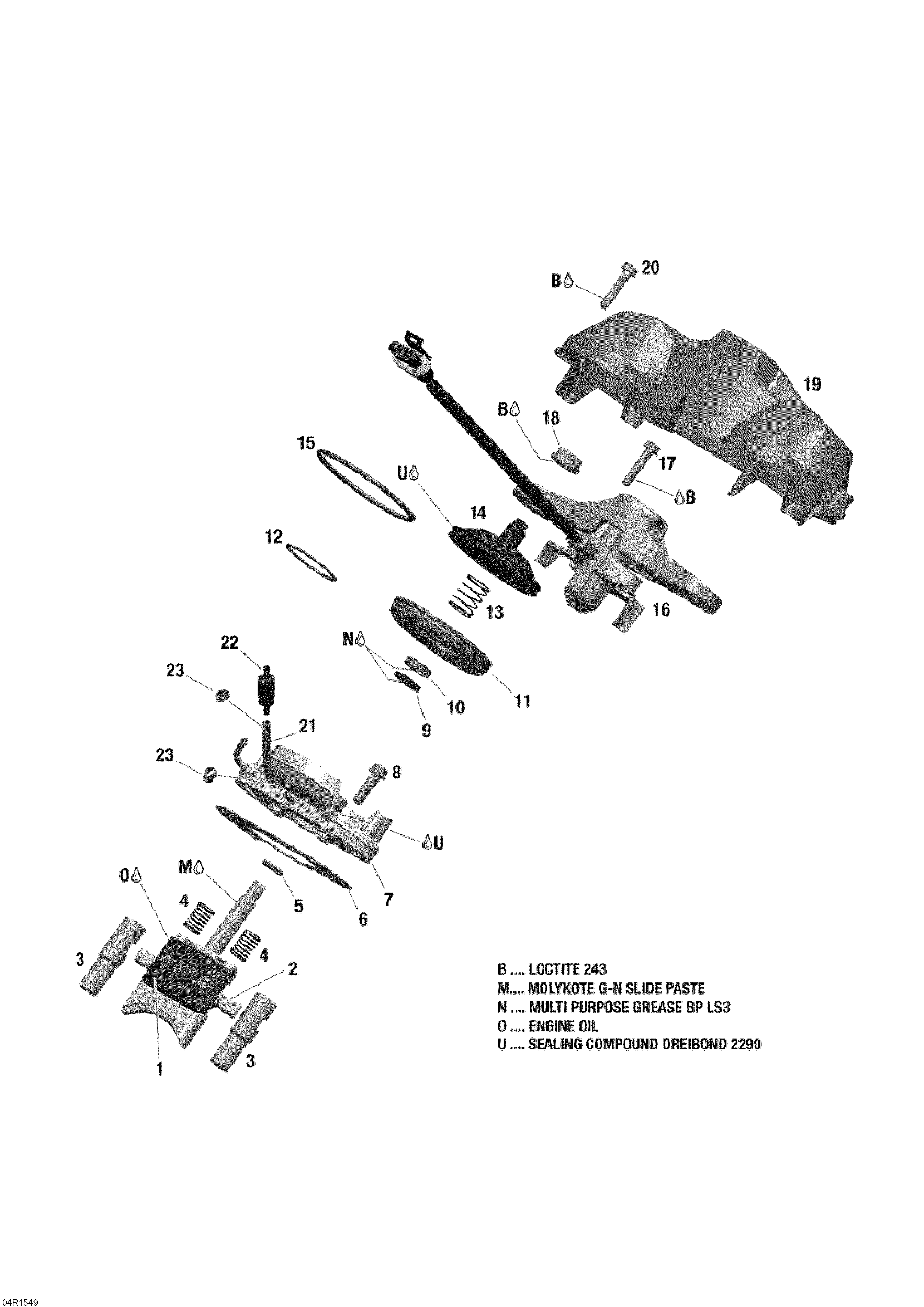

01- RAVE Valve _04R1549 для BRP Ski-Doo Skandic SWT 600 E-TEC - 2015
-
№АртикулНазвание
-
1420854980 Exhaust Valve, UpperExhaust Valve, Upper
-
2420854974 Exhaust Valve, LowerExhaust Valve, Lower
-
3420854990 Exhaust ValveExhaust Valve
-
4420238556 SpringSpring
-
5420931765 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
6420430032 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
7420854888 Valve HousingValve Housing
-
8420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
9420431380 Gasket Ring. Included In Gasket KitGasket Ring. Included In Gasket Kit
-
10420950730 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
11420260725 BellowsBellows
-
12420838255 Hose SpringHose Spring
-
13420238557 SpringSpring
-
14420854442 Valve CoverValve Cover
-
15420939285 Hose SpringHose Spring
-
16420854089 Position SensorPosition Sensor
-
17420841550 Tapping Screw M5 X 22Tapping Screw M5 X 22
-
18420942190 Nut M12 X 1.5Nut M12 X 1.5
-
19420910820 Rave CoverRave Cover
-
20420841550 Tapping Screw M5 X 22Tapping Screw M5 X 22
-
21414413800 Oil HoseOil Hose
-
22404160200 ValveValve
-
23420851508 ClampClamp
