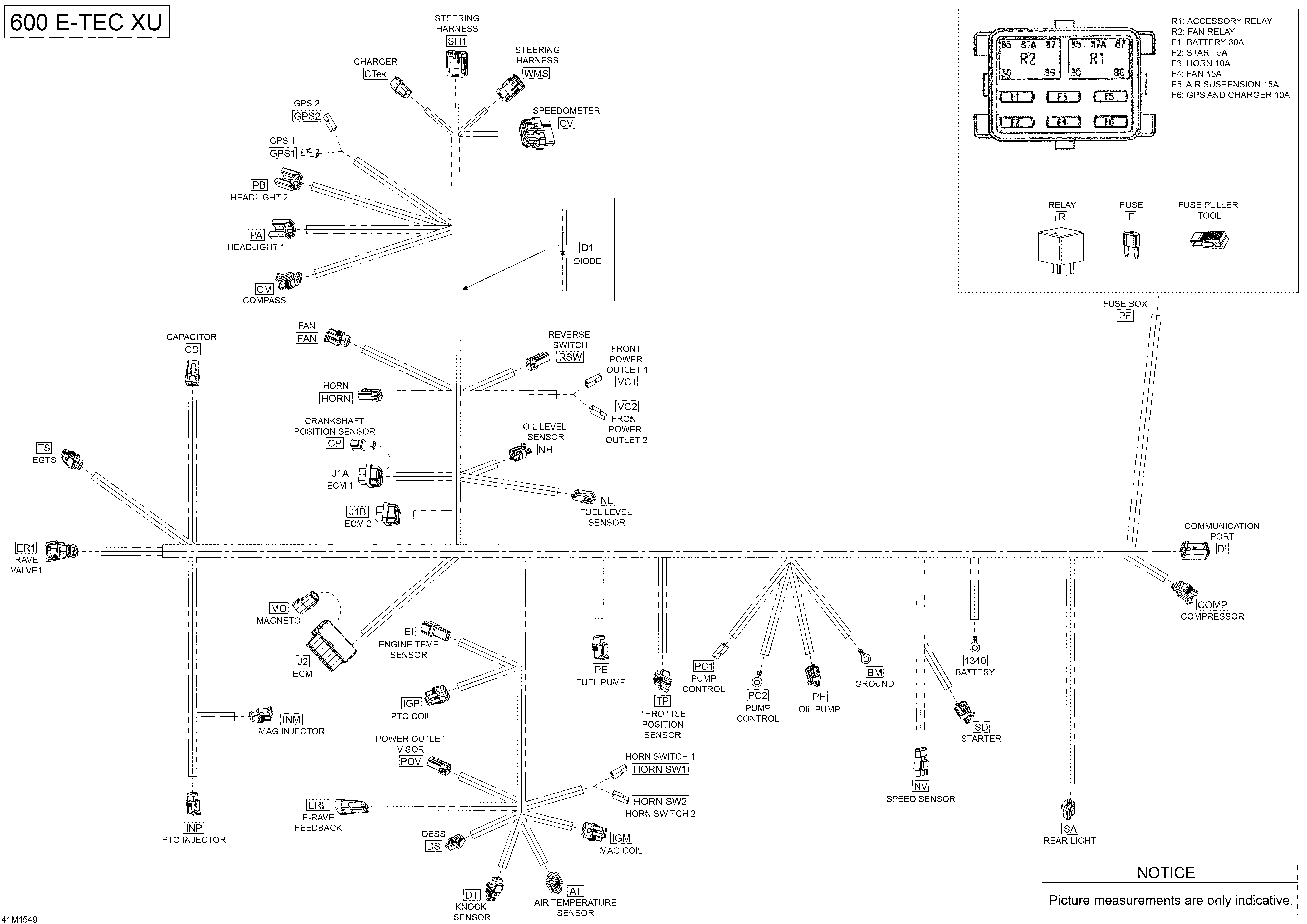

10- Electrical Harness _41M1549 для BRP Ski-Doo Skandic SWT 600 E-TEC - 2015
-
№АртикулНазвание
-
1515177683 Main Harness. Includes 1 To WMSMain Harness. Includes 1 To WMS
-
2515175442 Tubing 6 mmTubing 6 mm
-
2409901700 Tubing 9 mmTubing 9 mm
-
2415079900 Tubing 10 mmTubing 10 mm
-
2409901800 Tubing 13 mmTubing 13 mm
-
2415080000 Tubing 16 mmTubing 16 mm
-
2409901600 Tubing 19 mmTubing 19 mm
-
2409902200 Tubing 25 mmTubing 25 mm
-
1340278000992 Open BarrelOpen Barrel
-
AT515176890 Female Terminal HousingFemale Terminal Housing
-
AT710001164 Female TerminalFemale Terminal
-
AT710001163 Wire SealWire Seal
-
BM278000992 Open BarrelOpen Barrel
-
CD278001673 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
CD515175567 Female TerminalFemale Terminal
-
CD278001671 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
CM409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
CM710001340 Female TerminalFemale Terminal
-
CM515176621 Wire SealWire Seal
-
CM293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
COMP409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
COMP710001340 Female TerminalFemale Terminal
-
COMP515176621 Wire SealWire Seal
-
CP515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
CP278000631 Male TerminalMale Terminal
-
CP409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
CTEK278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
CTEK278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
CTEK515175568 Male TerminalMale Terminal
-
CV515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CV515175802 Retainer BlockRetainer Block
-
CV515175803 Wire SealWire Seal
-
CV515175804 BlockBlock
-
CV515175805 LockLock
-
CV515175806 Female TerminalFemale Terminal
-
CV515175812 PlugPlug
-
CV710000399 Female HousingFemale Housing
-
D1409012700 DiodeDiode
-
DI515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
DI278000632 Female TerminalFemale Terminal
-
DI293000052 Sealing CapSealing Cap
-
DI515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
DS515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
DS515175231 Female TerminalFemale Terminal
-
DT278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
DT278000998 Female TerminalFemale Terminal
-
DT278000999 Wire SealWire Seal
-
EI515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
EI278000631 Male TerminalMale Terminal
-
EI409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
ER1415128500 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
ER1278000998 Female TerminalFemale Terminal
-
ER1415128501 SealSeal
-
ERF710000568 HousingHousing
-
ERF515176164 Male TerminalMale Terminal
-
ERF710000992 ClipClip
-
ERF515176621 Wire SealWire Seal
-
F710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
F710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
F710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
F710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
F710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
FB515177451 Fuse Box CoverFuse Box Cover
-
FB278002824 Case Ass'yCase Ass'y
-
FB278000218 Wire SealWire Seal
-
FB278001065 Wire SealWire Seal
-
FB710000048 Wire SealWire Seal
-
FB278002578 TerminalTerminal
-
FB710000890 Female TerminalFemale Terminal
-
FB710000918 Female TerminalFemale Terminal
-
FAN409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FAN278001014 Female TerminalFemale Terminal
-
FAN515176621 Wire SealWire Seal
-
GPS1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
GPS1409010100 Female TerminalFemale Terminal
-
GPS2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
GPS2409010100 Female TerminalFemale Terminal
-
HORN515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
HORN515175231 Female TerminalFemale Terminal
-
IGM409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
IGM278001014 Female TerminalFemale Terminal
-
IGM515176621 Wire SealWire Seal
-
IGP409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
IGP278001014 Female TerminalFemale Terminal
-
IGP515176621 Wire SealWire Seal
-
INM409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
INM278001014 Female TerminalFemale Terminal
-
INM515176621 Wire SealWire Seal
-
INM293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
INP409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
INP278001014 Female TerminalFemale Terminal
-
INP515176621 Wire SealWire Seal
-
INP293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
J1A515176342 Female Terminal Housing, 34 CircuitsFemale Terminal Housing, 34 Circuits
-
J1A515176348 Female TerminalFemale Terminal
-
J1A515176541 Female TerminalFemale Terminal
-
J1A515176345 PlugPlug
-
J1B515176341 Female Terminal Housing, 26 CircuitsFemale Terminal Housing, 26 Circuits
-
J1B515176348 Female TerminalFemale Terminal
-
J1B515176541 Female TerminalFemale Terminal
-
J1B515176345 PlugPlug
-
J2515176340 Female Terminal Housing, 16 CircuitsFemale Terminal Housing, 16 Circuits
-
J2415128499 Female TerminalFemale Terminal
-
J2278000998 Female TerminalFemale Terminal
-
J2415128501 SealSeal
-
MO515175668 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
MO278000631 Male TerminalMale Terminal
-
MO278000735 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
NE515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
NE515175232 Male TerminalMale Terminal
-
NH278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
NH710001119 Female TerminalFemale Terminal
-
NV710000568 HousingHousing
-
NV515176164 Male TerminalMale Terminal
-
NV710000992 ClipClip
-
NV515176621 Wire SealWire Seal
-
PA515176908 Female HousingFemale Housing
-
PA515176909 TerminalTerminal
-
PB515176908 Female HousingFemale Housing
-
PB515176909 TerminalTerminal
-
PC1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
PC1409010100 Female TerminalFemale Terminal
-
PC2278000992 Open BarrelOpen Barrel
-
PE409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
PE278001014 Female TerminalFemale Terminal
-
PE515176621 Wire SealWire Seal
-
PH278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
PH710001119 Female TerminalFemale Terminal
-
POV515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
POV515175231 Female TerminalFemale Terminal
-
R515176774 Relay, 30 AMPRelay, 30 AMP
-
RSW515176296 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
RSW515175231 Female TerminalFemale Terminal
-
SA515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SA515175231 Female TerminalFemale Terminal
-
SD278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
SD278001114 Female TerminalFemale Terminal
-
SH1710001929 Housing, PackardHousing, Packard
-
SW1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
SW1409010100 Female TerminalFemale Terminal
-
SW2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
SW2409010100 Female TerminalFemale Terminal
-
TP278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
TP278000998 Female TerminalFemale Terminal
-
TS278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
TS278000998 Female TerminalFemale Terminal
-
TS278000999 Wire SealWire Seal
-
VC1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
VC1409010100 Female TerminalFemale Terminal
-
VC2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
VC2409010100 Female TerminalFemale Terminal
-
WMS710001927 HousingHousing
