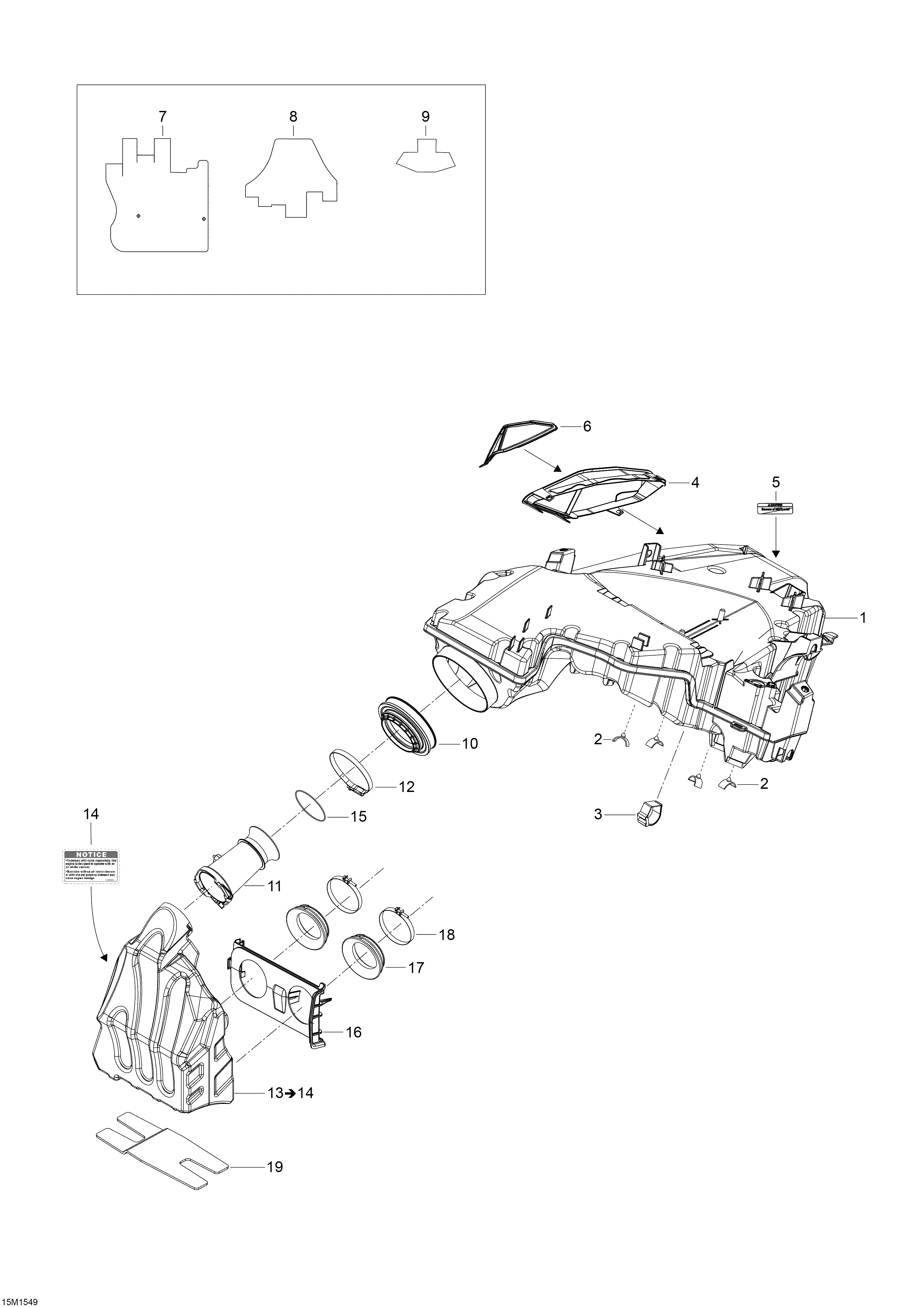

02- Air Intake System _15M1549 для BRP Ski-Doo Skandic SWT 600 E-TEC - 2015
-
№АртикулНазвание
-
1508000790 Chamber Ass'yChamber Ass'y
-
2508000537 StopperStopper
-
3508000532 Velcro StripVelcro Strip
-
4508000756 AdaptorAdaptor
-
5516004651 Caution Label, Air IntakeCaution Label, Air Intake
-
6508000609 Air FilterAir Filter
-
7508000675 Heat ShieldHeat Shield
-
8508000676 Heat ShieldHeat Shield
-
9508000677 Heat ShieldHeat Shield
-
10508000548 BootBoot
-
11508000662 FluteFlute
-
12514052983 Norma Gear ClampNorma Gear Clamp
-
13508000660 Primary Chamber Ass'y. Includes 12 To 14Primary Chamber Ass'y. Includes 12 To 14
-
14516005876 Notice Decal, Air Intake SilencerNotice Decal, Air Intake Silencer
-
15293300115 O-RingO-Ring
-
16508000613 Plate AdapterPlate Adapter
-
17508000614 Air Intake AdapterAir Intake Adapter
-
18508000346 Gemi ClampGemi Clamp
-
19508000739 Insulated FoamInsulated Foam
