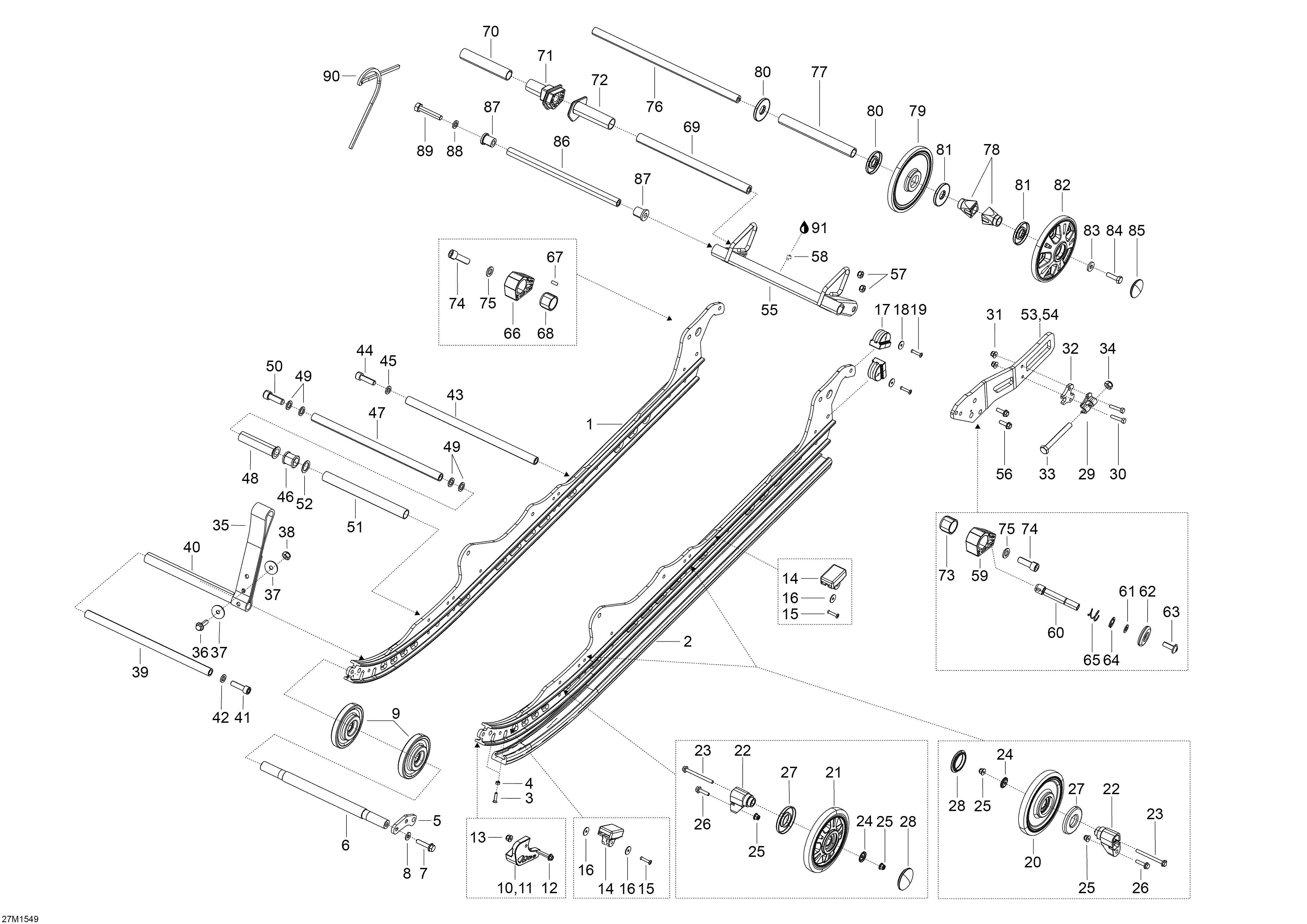

08- Rear Suspension A_27M1549 для BRP Ski-Doo Skandic SWT 600 E-TEC - 2015
-
№АртикулНазвание
-
1503193397 RunnerRunner
-
2503192618 Black Slider, 154''Black Slider, 154''
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192612 PlatePlate
-
6503193053 Front Wheel ShaftFront Wheel Shaft
-
7207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
8503189157 WasherWasher
-
9503192611 Black Wheel Ass'y, 100 mmBlack Wheel Ass'y, 100 mm
-
10503192610 RH ProtectorRH Protector
-
11503192609 LH ProtectorLH Protector
-
12207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14503190576 Rubber StopperRubber Stopper
-
15293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
16503191273 WasherWasher
-
17503191291 Rubber StopperRubber Stopper
-
18293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
19503191273 WasherWasher
-
20503191311 Black Wheel Ass'y, 147 mmBlack Wheel Ass'y, 147 mm
-
21503191152 Deep Black Wheel Ass'y, 147 mmDeep Black Wheel Ass'y, 147 mm
-
22503193894 Casted SupportCasted Support
-
23207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
24503191820 Wheel Cup M6Wheel Cup M6
-
25233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
26207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
27503190434 Labyrinth SealLabyrinth Seal
-
28503192771 Black Wheel CapBlack Wheel Cap
-
29503192583 TensionerTensioner
-
30207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
31233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
32503193250 SpacerSpacer
-
33230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
34233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
35503192360 Stopper StrapStopper Strap
-
36207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
37224081301 Flat WasherFlat Washer
-
38233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
39503192623 Axle StrapAxle Strap
-
40503192679 SpacerSpacer
-
41205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
42503189564 WasherWasher
-
43503191418 Axle StrapAxle Strap
-
44205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
45503189564 WasherWasher
-
46503189271 CushionCushion
-
47503193967 ShaftShaft
-
48503191259 Center BushingCenter Bushing
-
49503189276 WasherWasher
-
50205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
51503191421 SpacerSpacer
-
52503189273 WasherWasher
-
53503192893 Runner Pivot RHRunner Pivot RH
-
54503192892 Runner Pivot LHRunner Pivot LH
-
55503191414 Welded PivotWelded Pivot
-
56207682534 Hex. Flanged ScrewHex. Flanged Screw
-
57232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
58408200700 Grease FittingGrease Fitting
-
59503192426 LH BlocLH Bloc
-
60503192437 RodeRode
-
61234051410 Flat Washer M5Flat Washer M5
-
62503192438 HandleHandle
-
63250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
64293370068 CirclipCirclip
-
65503192436 Compression SpringCompression Spring
-
66503192427 RH BlocRH Bloc
-
67250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
68503189488 Block GuideBlock Guide
-
69503191711 Cam AxleCam Axle
-
70503191713 SpacerSpacer
-
71503191190 RH Spring CamRH Spring Cam
-
72503191668 LH Spring CamLH Spring Cam
-
73503189488 Block GuideBlock Guide
-
74205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
75503189148 WasherWasher
-
76503191408 Rear AxleRear Axle
-
77503193051 SpacerSpacer
-
78503190428 Rear Wheel SpacerRear Wheel Spacer
-
79503192140 Black Wheel Ass'y, 165 mmBlack Wheel Ass'y, 165 mm
-
80503190682 Labyrinth SealLabyrinth Seal
-
81503190434 Labyrinth SealLabyrinth Seal
-
82503192128 Deep Black Wheel Ass'y, 165 mmDeep Black Wheel Ass'y, 165 mm
-
83503190439 WasherWasher
-
84250000019 Hex. Screw With NylonHex. Screw With Nylon
-
85503192771 Black Wheel CapBlack Wheel Cap
-
86503191390 Lower ShaftLower Shaft
-
87503189324 CushionCushion
-
88503192496 WasherWasher
-
89250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
90503192282 Pivot SpringPivot Spring
