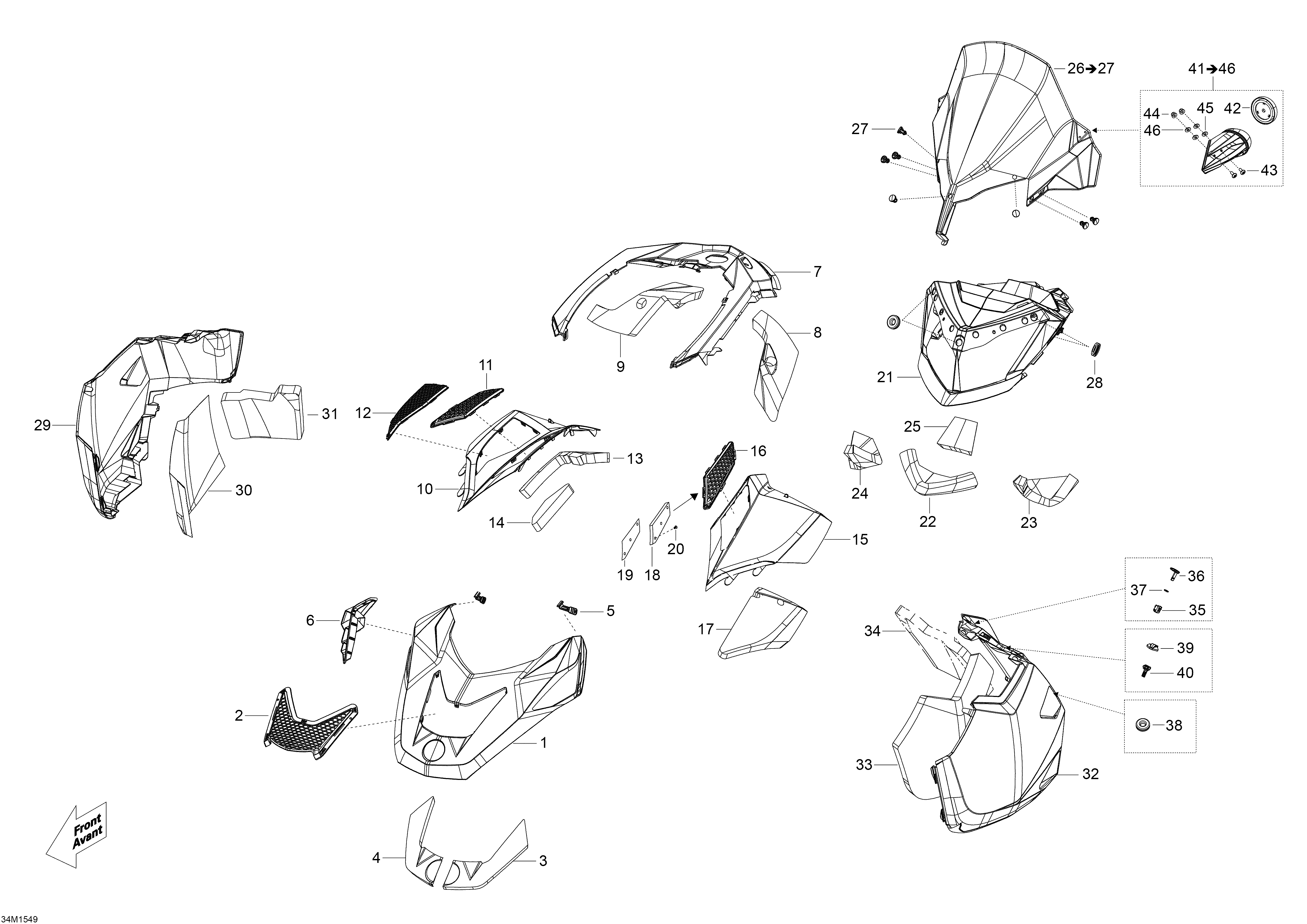

09- Hood _34M1549 для BRP Ski-Doo Skandic SWT 600 E-TEC - 2015
-
№АртикулНазвание
-
1517305523 Yellow HoodYellow Hood
-
2517304843 Hood GrillHood Grill
-
3517304330 Insulator LHInsulator LH
-
4517304214 Insulator RHInsulator RH
-
5517304289 Latch PannelLatch Pannel
-
6517304155 Scoop GrillScoop Grill
-
7517304820 Black ConsoleBlack Console
-
8517305644 InsulatorInsulator
-
9517304318 InsulatorInsulator
-
10517305525 Yellow Side Access Panel RHYellow Side Access Panel RH
-
11517304015 RH Access Panel GrillRH Access Panel Grill
-
12517304016 RH Lower Acces GrillRH Lower Acces Grill
-
13517304311 InsulatorInsulator
-
14517304312 InsulatorInsulator
-
15517305527 Yellow Side Access Panel LHYellow Side Access Panel LH
-
16517303893 LH Access Panel GrillLH Access Panel Grill
-
17517304313 InsulatorInsulator
-
18517305311 InsulatorInsulator
-
19502007312 Grill plateGrill plate
-
20414644300 DartDart
-
21517304272 Indicator SupportIndicator Support
-
22517304314 InsulatorInsulator
-
23517304315 InsulatorInsulator
-
24517304316 InsulatorInsulator
-
25517304319 InsulatorInsulator
-
26860201000 Windshield Ass'y. Includes 26 To 27Windshield Ass'y. Includes 26 To 27
-
27517304744 ButtonButton
-
28517303756 GrommetGrommet
-
29517304328 Black Side Panel-RhBlack Side Panel-Rh
-
30517304709 Foam RightFoam Right
-
31517304310 RH Rear FoamRH Rear Foam
-
32517304329 Black Side Panel-LHBlack Side Panel-LH
-
33517304707 Foam LHFoam LH
-
34517304309 LH Rear FoamLH Rear Foam
-
35517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
36517304296 Quarter-Turn HandleQuarter-Turn Handle
-
37517304538 Locking PlateLocking Plate
-
38517303756 GrommetGrommet
-
39860200239 Black Latch KitBlack Latch Kit
-
40517304573 Latch-PanelLatch-Panel
-
41517305787 RH/LH Mirror Ass'y. Includes 41 To 46RH/LH Mirror Ass'y. Includes 41 To 46
-
42517304629 MirrorMirror
-
43250000721 Torx ScrewTorx Screw
-
44232361493 Domed Nut M6Domed Nut M6
-
45250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
4620117 WasherWasher
