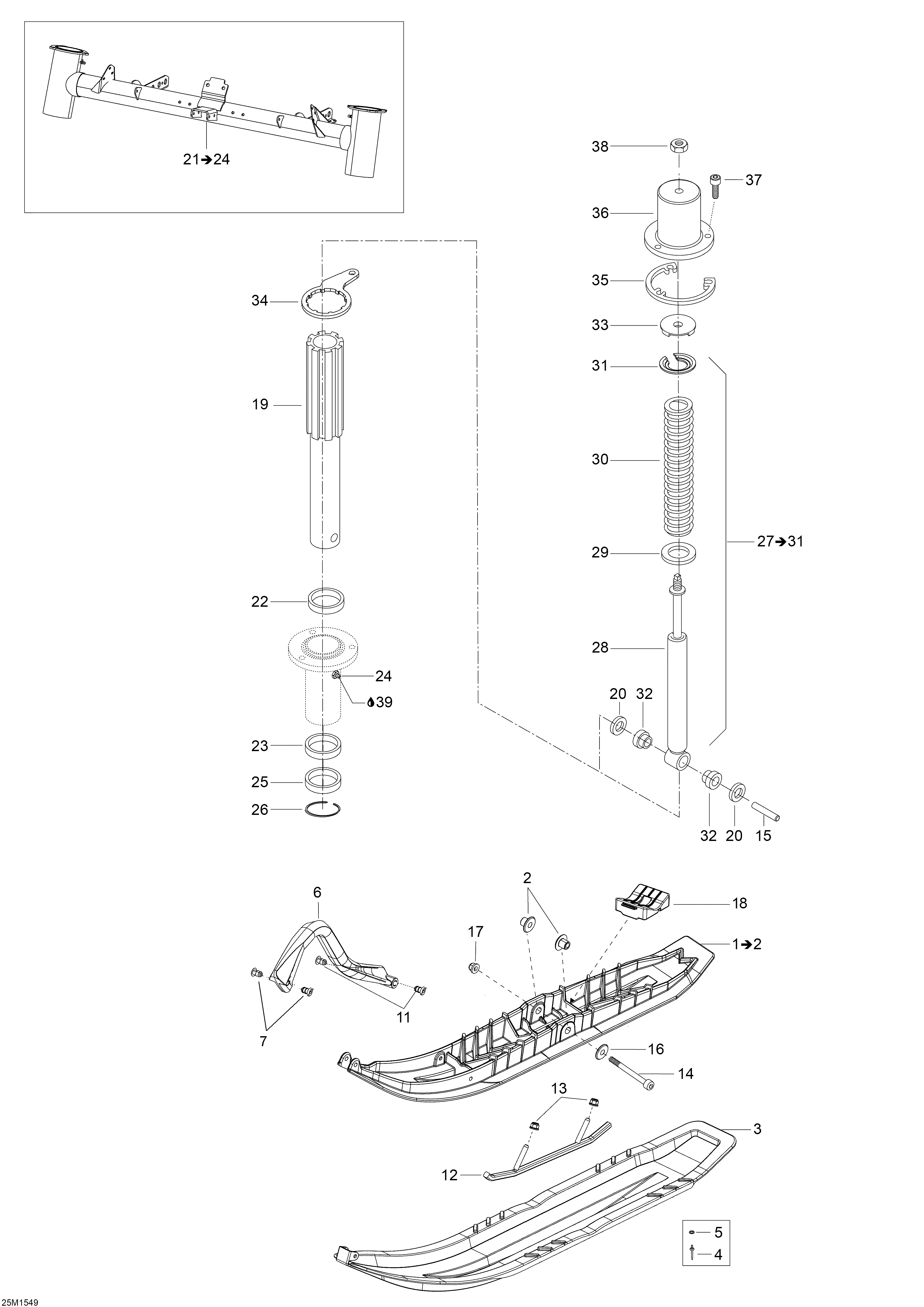

07- Front Suspension _25M1549 для BRP Ski-Doo Skandic SWT 600 E-TEC - 2015
-
№АртикулНазвание
-
1505073227 Black DS Ski 2. Inlcudes 1 To 2Black DS Ski 2. Inlcudes 1 To 2
-
2505071781 CushionCushion
-
3505073448 DS LinerDS Liner
-
4293150206 Pop RivetPop Rivet
-
5234061410 Flat Washer 6 mmFlat Washer 6 mm
-
6505072976 Black HandleBlack Handle
-
7505071812 RetainerRetainer
-
11505072133 RetainerRetainer
-
12860201044 Carbide Runner KitCarbide Runner Kit
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
15505073209 Ski AxleSki Axle
-
16732900049 WasherWasher
-
17233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
18505072594 Ski StopperSki Stopper
-
19505073200 Ski LegSki Leg
-
20505072579 SpacerSpacer
-
21505072984 Ass'y Module S2. Includes 21 To 24Ass'y Module S2. Includes 21 To 24
-
22414803100 Upper CushionUpper Cushion
-
23414803200 Lower CushionLower Cushion
-
24408200700 Grease FittingGrease Fitting
-
25505072696 Seal OilSeal Oil
-
26505072698 CirclipCirclip
-
28505073046 ShockShock
-
29505072578 WasherWasher
-
30505072745 Black SpringBlack Spring
-
31505072619 Spring StopperSpring Stopper
-
32572034500 CushionCushion
-
33605354835 Rubber BumberRubber Bumber
-
34505073203 Steering ArmSteering Arm
-
35505072581 SpacerSpacer
-
36505072874 Suspension Cover LHSuspension Cover LH
-
36505072875 Suspension Cover RHSuspension Cover RH
-
37205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
38233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
