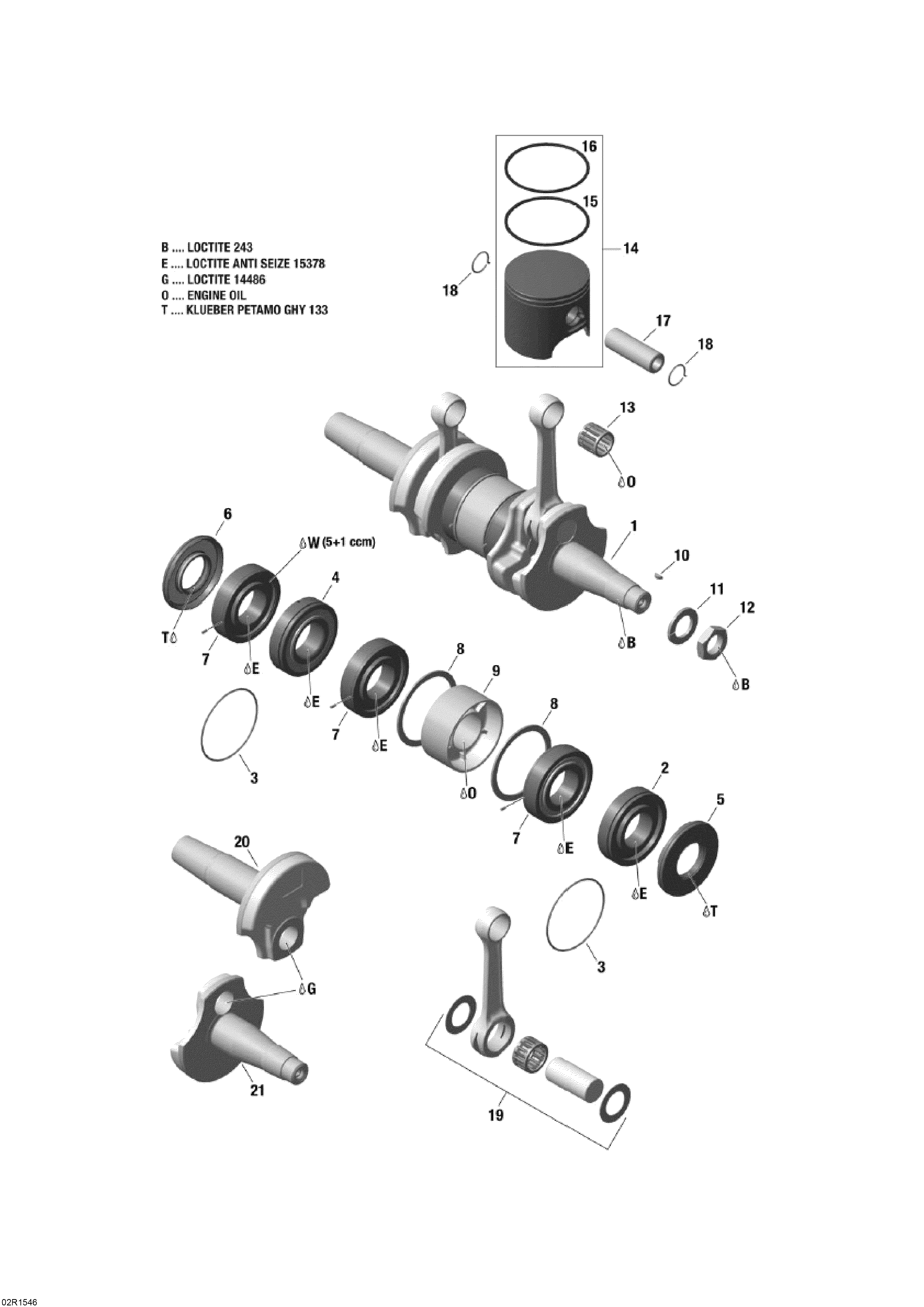

01- Crankshaft _02R1546 для BRP Ski-Doo Skandic WT 550 - 2015

№

Артикул

Название
1

420686042 Crankshaft. Includes 1 To 8

Crankshaft. Includes 1 To 8

140 760 ₽
2

420832571 Ball Bearing

Ball Bearing

19 090 ₽
3

293300022 O-Ring, 64 mm X 2 mm

O-Ring, 64 mm X 2 mm

9 030 ₽
4

420832632 Ball Bearing

Ball Bearing

8 700 ₽
5

420831952 Oil Seal

Oil Seal

11 550 ₽
6

420831955 Oil Seal

Oil Seal

19 460 ₽
7

420832573 Ball Bearing

Ball Bearing

7 060 ₽
8

420927710 Retaining Disk

Retaining Disk

2 610 ₽
9

420850149 Labyrinth Sleeve

Labyrinth Sleeve

2 930 ₽
10

420246055 Woodruff Key

Woodruff Key

230 ₽
11

420945759 Lock Washer, 22 mm

Lock Washer, 22 mm

660 ₽
12

420842239 Hex. Nut, M22 X 1.5

Hex. Nut, M22 X 1.5

1 610 ₽
13

420832445 Needle Bearing

Needle Bearing

5 090 ₽
14

420889050 Piston Ass'y 75.86 mm, Standard. Includes 14 To 16

Piston Ass'y 75.86 mm, Standard. Includes 14 To 16

45 110 ₽
14

420889051 Piston Ass'y 76.11 mm, 1st Oversize. Includes 14 To 16

Piston Ass'y 76.11 mm, 1st Oversize. Includes 14 To 16

27 760 ₽
14

420889052 Piston Assy 76.36 mm, 2nd Oversize. Includes 14 To 16

Piston Assy 76.36 mm, 2nd Oversize. Includes 14 To 16

45 110 ₽
15

420815300 Rectangular Ring, Standard

Rectangular Ring, Standard

9 000 ₽
15

420815301 Rectangular Ring, 1st

Rectangular Ring, 1st

9 000 ₽
15

420815302 Rectangular Ring, 2nd

Rectangular Ring, 2nd

2 370 ₽
16

420815155 Semi-Trapez Ring, Standard

Semi-Trapez Ring, Standard

18 620 ₽
16

420815156 Semi-Trapez Ring, 1st

Semi-Trapez Ring, 1st

18 620 ₽
16

420815157 Semi-Trapez Ring, 2nd

Semi-Trapez Ring, 2nd

4 740 ₽
17

420916407 Piston Pin

Piston Pin

6 690 ₽
18

420845106 Piston Circlip. Included In Gasket Kit

Piston Circlip. Included In Gasket Kit

2 410 ₽
19

420889068 Rod Repair Kit

Rod Repair Kit

114 100 ₽
20

420819181 Crankshaft PTO Side

Crankshaft PTO Side

23 810 ₽
21

420819213 Half Crankshaft (MAG)

Half Crankshaft (MAG)

9 960 ₽
