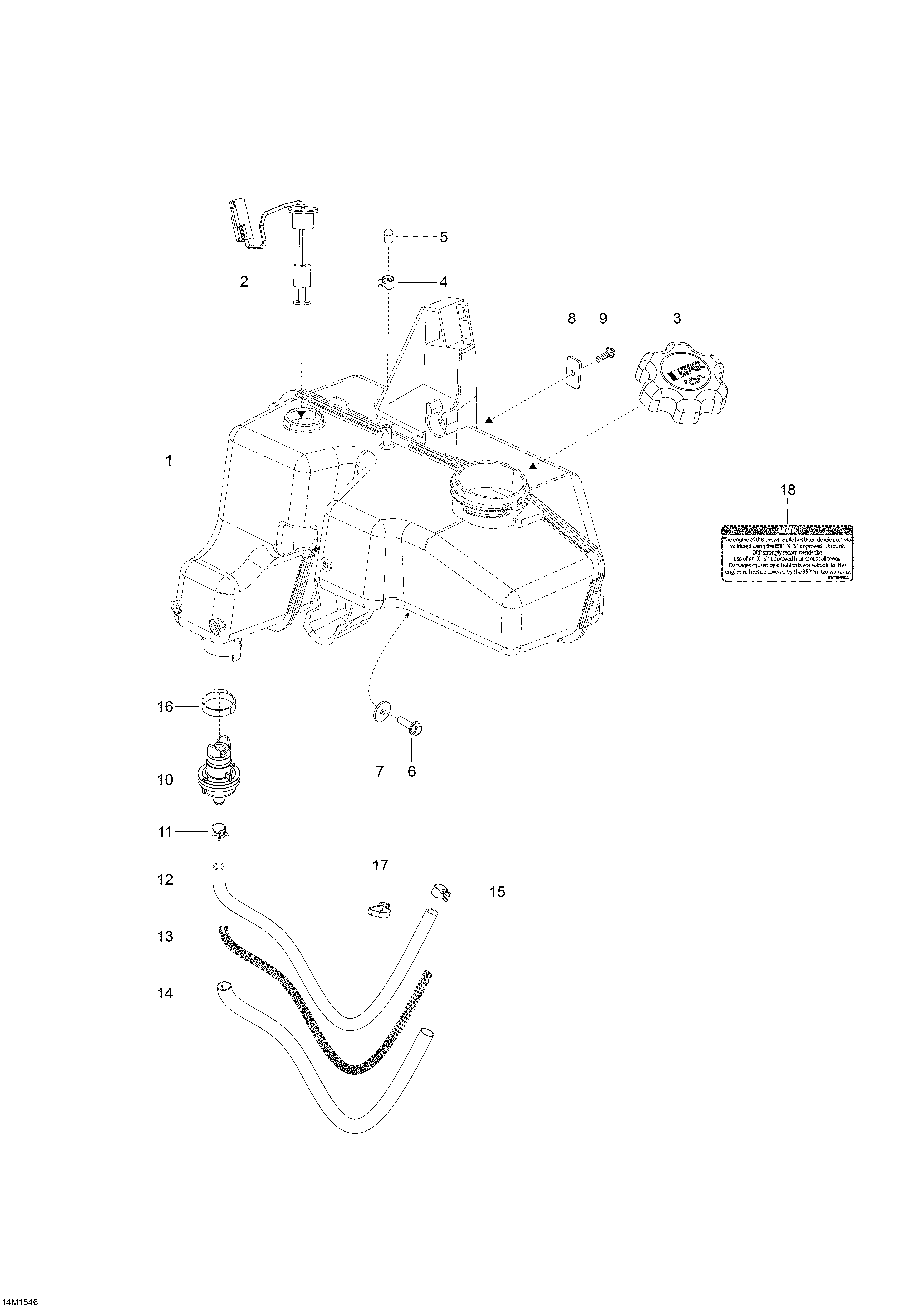

02- Oil System _14M1546 для BRP Ski-Doo Skandic WT 550 - 2015
-
№АртикулНазвание
-
1519000255 Oil TankOil Tank
-
2515176978 Level SensorLevel Sensor
-
3519000273 CapCap
-
4293650043 Oetiker Gear ClampOetiker Gear Clamp
-
5519000216 CapCap
-
6250000331 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
7224061201 Flat WasherFlat Washer
-
8519000179 BracketBracket
-
9241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
10519000242 Oil FilterOil Filter
-
11414415200 Spring ClampSpring Clamp
-
12415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
13519000196 SpringSpring
-
14415079900 Tubing 10 mmTubing 10 mm
-
15414420700 Spring ClampSpring Clamp
-
16293650099 Crimp ClampCrimp Clamp
-
17414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
18516006904 Warning DecalWarning Decal
