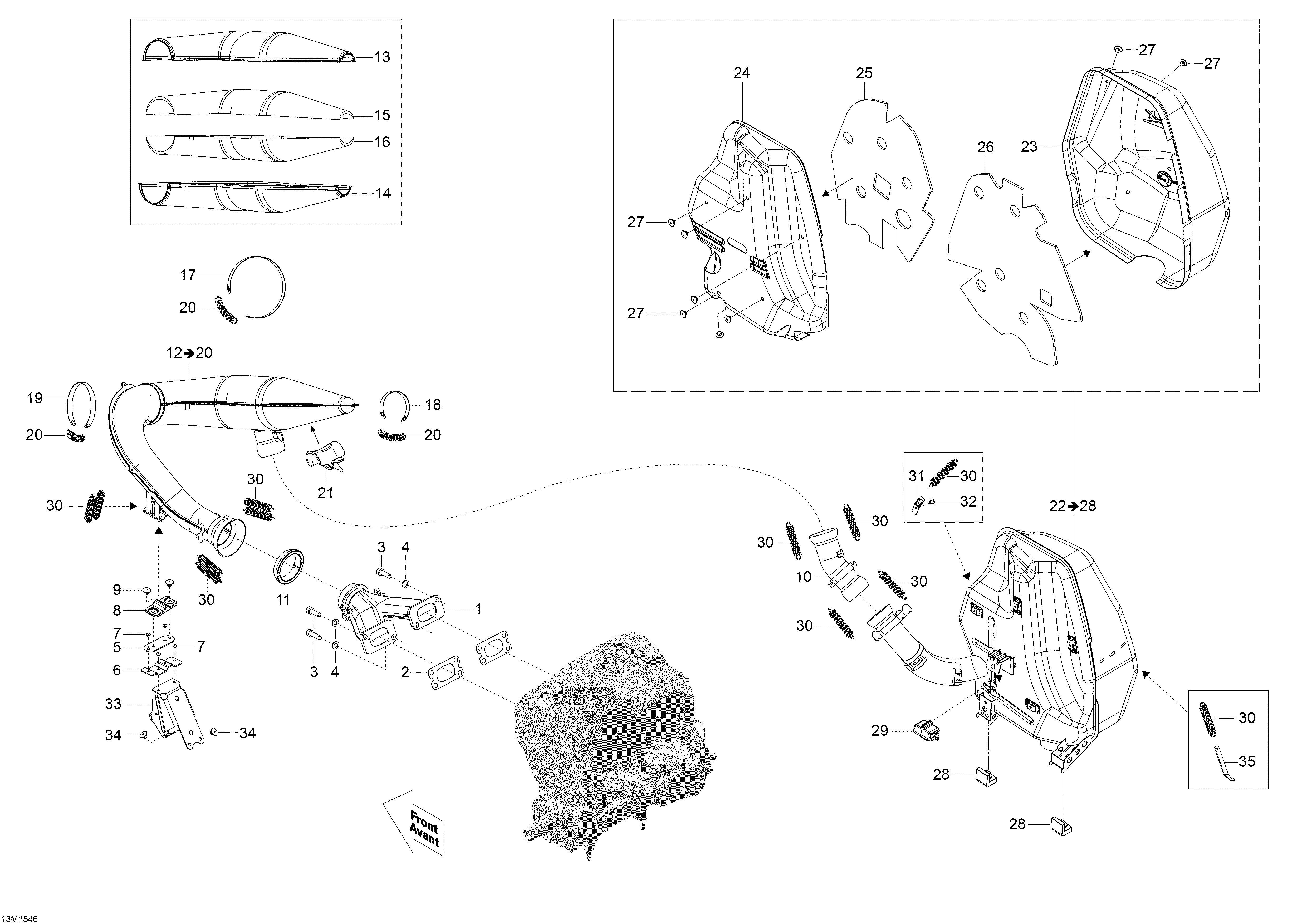

01- Exhaust System _13M1546 для BRP Ski-Doo Skandic WT 550 - 2015
-
№АртикулНазвание
-
1420673065 Exhaust ManifoldExhaust Manifold
-
2420831849 Gasket 1.0 mmGasket 1.0 mm
-
3205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
4250200111 WasherWasher
-
5514055275 Support PlateSupport Plate
-
6514055270 SupportSupport
-
7390909200 Avex RivetAvex Rivet
-
8514054617 BumperBumper
-
9293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
10514054411 Exhaust ElbowExhaust Elbow
-
11514053644 Exhaust GasketExhaust Gasket
-
12514054414 Tuned Pipe Ass'y. Includes 12 To 20Tuned Pipe Ass'y. Includes 12 To 20
-
13514054208 Rear Upper Half-enveloppeRear Upper Half-enveloppe
-
14514054210 Rear Lower Half EnvellopeRear Lower Half Envellope
-
15514054244 Upper Insulating WoolUpper Insulating Wool
-
16514054243 Lower Insulating WoolLower Insulating Wool
-
17514053502 Retaining StrapRetaining Strap
-
18514053492 Retaining StrapRetaining Strap
-
19514053498 Retaining StrapRetaining Strap
-
20514053643 SpringSpring
-
21514054513 BumperBumper
-
22514055055 Muffler Ass'y. Includes 22 To 28Muffler Ass'y. Includes 22 To 28
-
23514054984 RH DeflectorRH Deflector
-
24514055069 LH DeflectorLH Deflector
-
25514054421 LH Insulated WoolLH Insulated Wool
-
26514054711 RH Insulating WoolRH Insulating Wool
-
27390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
28514054529 Lower StopperLower Stopper
-
29514054606 Upper StopperUpper Stopper
-
30415107100 SpringSpring
-
31514054391 Spring BracketSpring Bracket
-
32390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
33514054767 Exhaust Muffler SupportExhaust Muffler Support
-
34293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
35514054846 Spring BracketSpring Bracket
