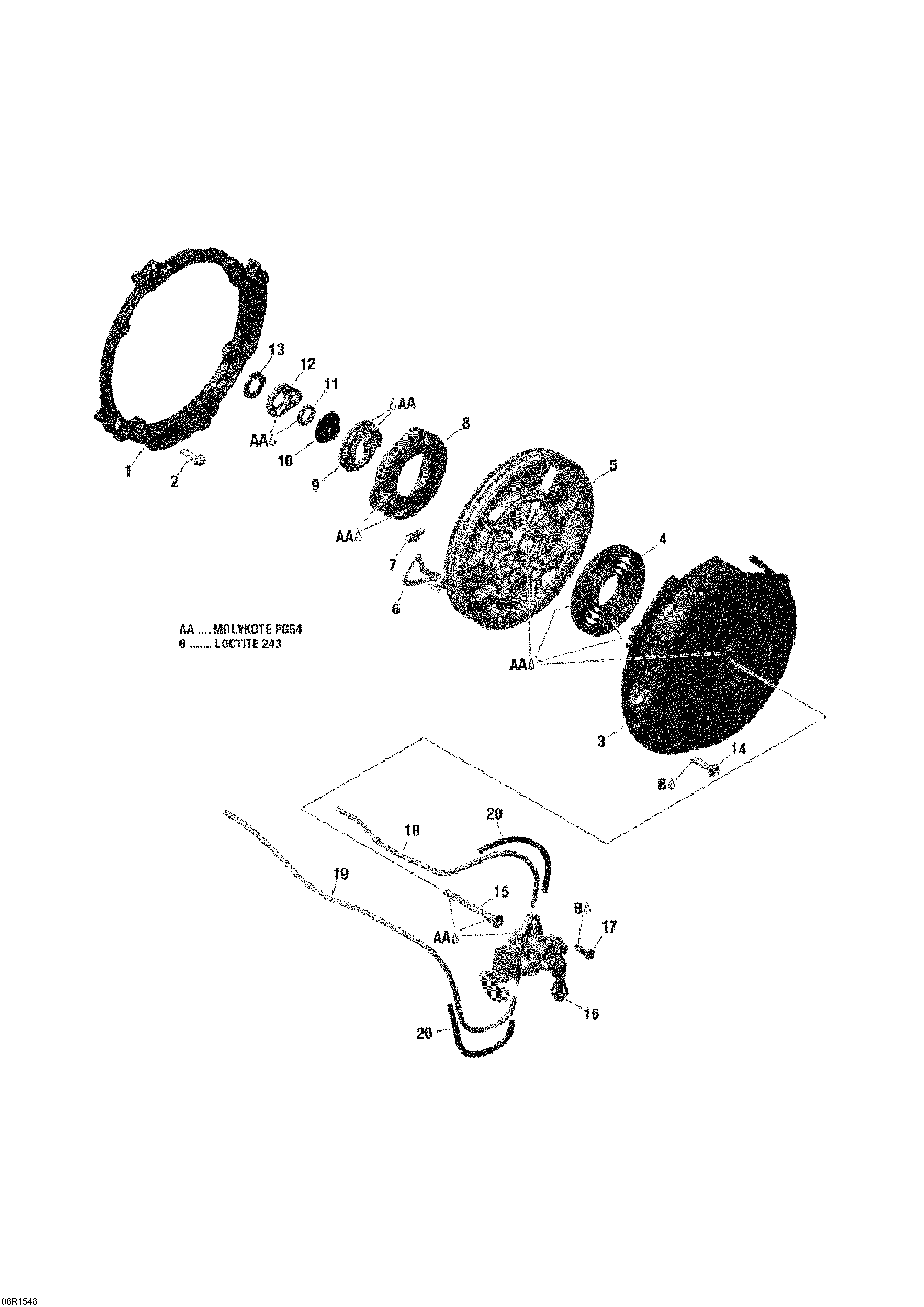

04- Rewind Starter And Oil Pump _06R1546 для BRP Ski-Doo Skandic WT 550 - 2015
-
№АртикулНазвание
-
1420810955 Flange ConnectorFlange Connector
-
2420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
-420890175 Rewing Starter Ass'y. Includes 3 To 12Rewing Starter Ass'y. Includes 3 To 12
-
4420939115 Rewind SpringRewind Spring
-
5420852480 Rope SheaveRope Sheave
-
6412500200 Starter Rope, MeterStarter Rope, Meter
-
7420852070 Key ClampKey Clamp
-
8420852296 PawlPawl
-
9420852640 Pawl LockPawl Lock
-
10420847926 Stage SleeveStage Sleeve
-
11420250400 O-RingO-Ring
-
12420852520 Lock RingLock Ring
-
13420845560 Locking ElementLocking Element
-
14420940431 ScrewScrew
-
15420820090 Oil Pump ShaftOil Pump Shaft
-
16420892291 Oil PumpOil Pump
-
17420841971 ScrewScrew
-
18414413800 Oil HoseOil Hose
-
19414413800 Oil HoseOil Hose
-
20420960728 Isolation LineIsolation Line
