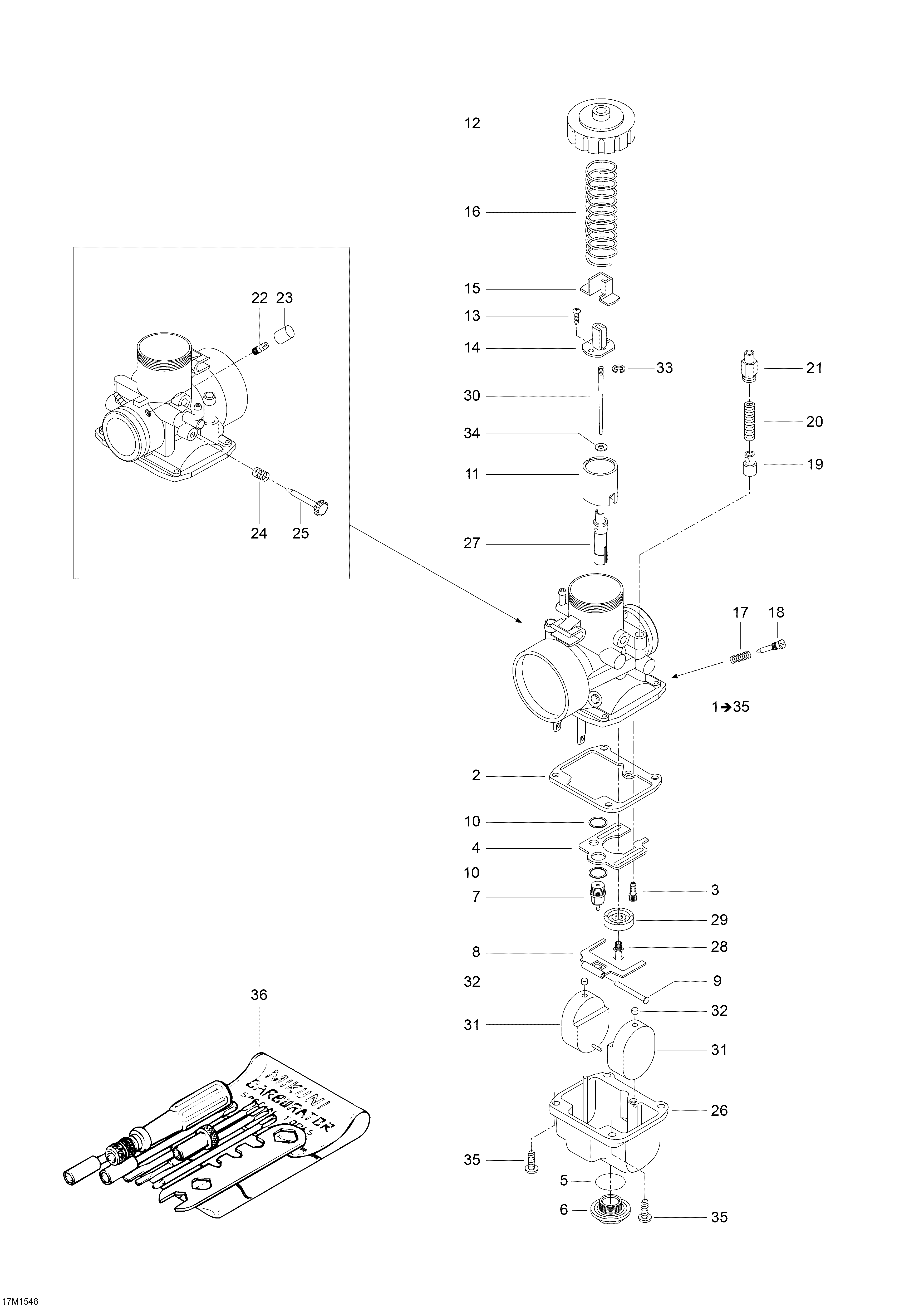

02- Carburetor _17M1546 для BRP Ski-Doo Skandic WT 550 - 2015
-
№АртикулНазвание
-
1403138814 Carburetor VM30-219, PTO. PTO Side, Includes 1 To 35Carburetor VM30-219, PTO. PTO Side, Includes 1 To 35
-
1403138813 Carburetor VM30-218, MAG. MAG Side, Includes 1 To 35Carburetor VM30-218, MAG. MAG Side, Includes 1 To 35
-
2404104200 GasketGasket
-
3404102700 Pilot Jet 35. PTO SidePilot Jet 35. PTO Side
-
5404107300 O-RingO-Ring
-
6404107400 Drain Plug ScrewDrain Plug Screw
-
7404147500 Needle Valve 1.2Needle Valve 1.2
-
8404107600 Float LeverFloat Lever
-
9404103300 Lever PinLever Pin
-
10404101600 Seat WasherSeat Washer
-
11404128400 Piston Valve 2.5Piston Valve 2.5
-
12404103700 CoverCover
-
13404121300 Screw With WasherScrew With Washer
-
15404122100 CoverCover
-
16404154800 SpringSpring
-
17404101800 SpringSpring
-
18404102300 Air ScrewAir Screw
-
19404162130 Plunger Ass'y. PTO SidePlunger Ass'y. PTO Side
-
19404162130 Plunger Ass'y. MAG SidePlunger Ass'y. MAG Side
-
20404162131 Spring. PTO SideSpring. PTO Side
-
20404162131 Spring. MAG SideSpring. MAG Side
-
21404162132 Guide Holder. PTO SideGuide Holder. PTO Side
-
21404162138 Guide Holder. MAG SideGuide Holder. MAG Side
-
22404153400 NippleNipple
-
23404156600 CapCap
-
24404101700 SpringSpring
-
25404109700 Idle Speed ScrewIdle Speed Screw
-
26404162133 Float Body. PTO SideFloat Body. PTO Side
-
26404162133 Float Body. MAG SideFloat Body. MAG Side
-
27404162124 Needle JetNeedle Jet
-
28404112300 Main Jet MJ 200. PTO SideMain Jet MJ 200. PTO Side
-
28404119000 Main Jet 190. MAG SideMain Jet 190. MAG Side
-
30404162113 Needle, J8-6BFY46Needle, J8-6BFY46
-
32404105800 CapCap
-
33404152400 E-RingE-Ring
-
34404117000 PackingPacking
-
35404102000 Screw With Lock WasherScrew With Lock Washer
-
36404112000 Tool KitTool Kit
