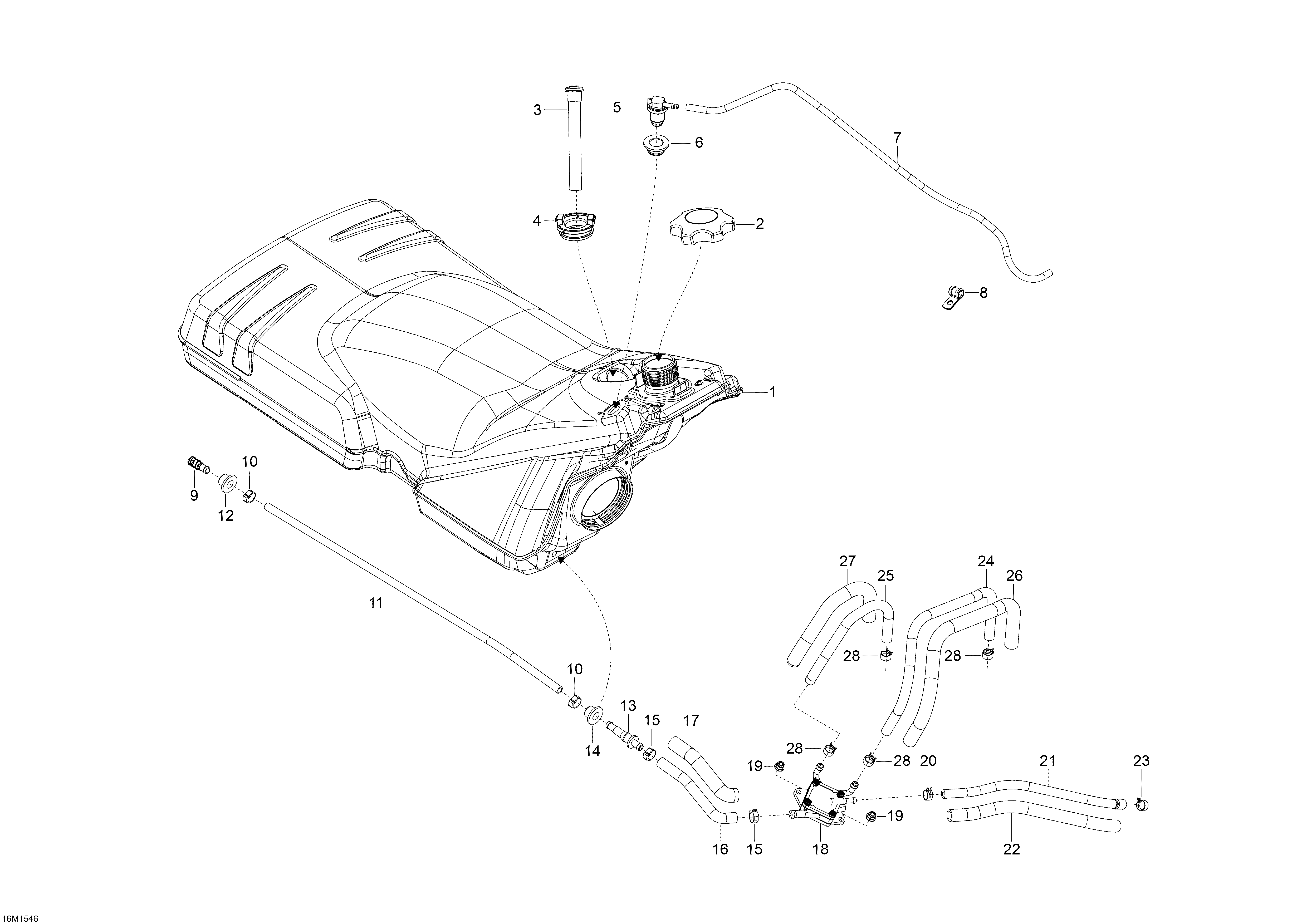

02- Fuel System _16M1546 для BRP Ski-Doo Skandic WT 550 - 2015
-
№АртикулНазвание
-
1513033632 Fuel TankFuel Tank
-
2513033720 Fuel Tank Cap. Model-North AmericaFuel Tank Cap. Model-North America
-
2513033723 Fuel Tank Cap. Model-EuropeFuel Tank Cap. Model-Europe
-
3513033538 Fuel SensorFuel Sensor
-
4293720058 GrommetGrommet
-
5513033188 Check ValveCheck Valve
-
6513033596 GrommetGrommet
-
7415080200 Hose, PolyurethaneHose, Polyurethane
-
8715900250 Hose ClipHose Clip
-
9414872100 Fuel FilterFuel Filter
-
10513033010 Norma Spring ClampNorma Spring Clamp
-
11513033332 HoseHose
-
12280000674 GrommetGrommet
-
13414872700 Male ConnectorMale Connector
-
14513033435 GrommetGrommet
-
15293650053 Crimp ClampCrimp Clamp
-
16513033626 Molded Hose - 3/8 I.D.Molded Hose - 3/8 I.D.
-
17415080000 Tubing 16 mmTubing 16 mm
-
18403901813 Fuel PumpFuel Pump
-
19233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20414415200 Spring ClampSpring Clamp
-
21513033553 Formed HoseFormed Hose
-
22415080000 Tubing 16 mmTubing 16 mm
-
23513033029 Universal Spring ClampUniversal Spring Clamp
-
24415129492 HoseHose
-
25415129492 HoseHose
-
26415080000 Tubing 16 mmTubing 16 mm
-
27415080000 Tubing 16 mmTubing 16 mm
-
28513033029 Universal Spring ClampUniversal Spring Clamp
