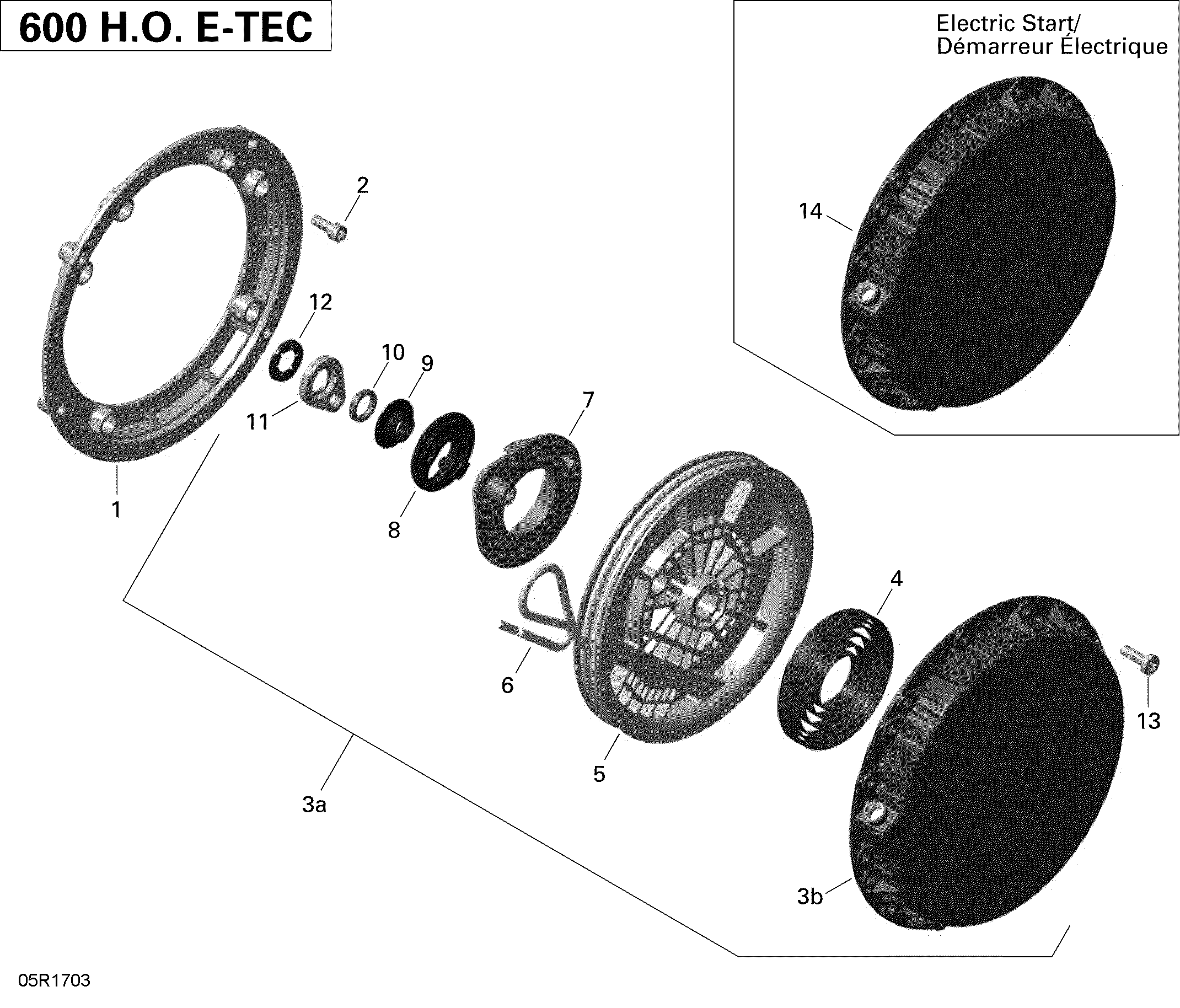

04- Rewind Starter - 600HO E-TEC для BRP Ski-Doo RENEGADE - 2-STROKE - 600HO E-TEC - 2017

№

Артикул

Название
1

420810868 Flange Connector

Flange Connector

7 450 ₽
2

420241236 Socket Head Screw M6 X 16

Socket Head Screw M6 X 16

280 ₽
3a

420892619 Rewind Starter Ass'y. Includes 3a to 12, Manual Start

Rewind Starter Ass'y. Includes 3a to 12, Manual Start

15 450 ₽
3b

420910256 Starter Housing. Manual Start

Starter Housing. Manual Start

29 720 ₽
4

420939115 Rewind Spring. Manual Start

Rewind Spring. Manual Start

4 900 ₽
5

420852288 Rope Sheave. Manual Start

Rope Sheave. Manual Start

13 300 ₽
6

412500200 Starter Rope, Meter. Manual Start

Starter Rope, Meter. Manual Start

2 710 ₽
7

420852633 Pawl. Manual Start

Pawl. Manual Start

4 530 ₽
8

420852640 Pawl Lock. Manual Start

Pawl Lock. Manual Start

2 610 ₽
9

420847926 Stage Sleeve. Manual Start

Stage Sleeve. Manual Start

4 830 ₽
10

420250407 O-Ring. Manual Start

O-Ring. Manual Start

620 ₽
11

420852520 Lock Ring. Manual Start

Lock Ring. Manual Start

2 770 ₽
12

420845560 Locking Element. Manual Start

Locking Element. Manual Start

670 ₽
13

420941256 Hex. Collar Screw

Hex. Collar Screw

610 ₽
14

420910254 Cover. Electrical Start

Cover. Electrical Start

2 930 ₽
