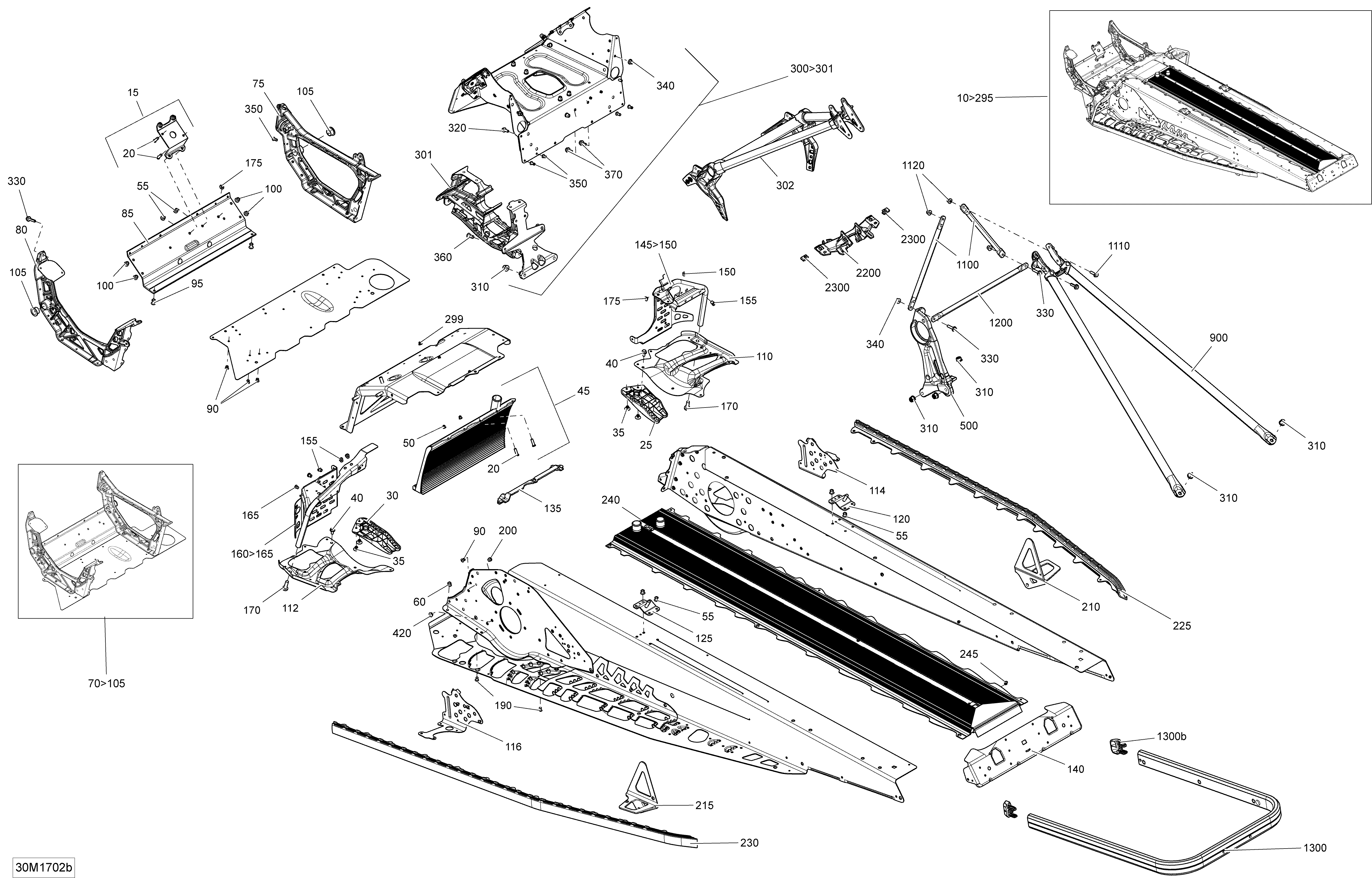

09- Frame - 137 Except Backcountry_Backcountry X для BRP Ski-Doo RENEGADE - 2-STROKE - 600HO E-TEC - 2017
-
№АртикулНазвание
-
10>295415130125 Frame Ass'y RENEGADE XS Black. Package Adrenaline, X - Model Black. Includes 1 to 295Frame Ass'y RENEGADE XS Black. Package Adrenaline, X - Model Black. Includes 1 to 295
-
10>295415130120 Frame Ass'y RENEGADE XS Orange. Package Adrenaline, X - Model Orange. Includes 1 to 295Frame Ass'y RENEGADE XS Orange. Package Adrenaline, X - Model Orange. Includes 1 to 295
-
10>295415130127 Frame Ass'y ENDURO XS Black, 137''. Package Enduro. Includes 1 to 295Frame Ass'y ENDURO XS Black, 137''. Package Enduro. Includes 1 to 295
-
10>295415130126 Frame Ass'y RENEGADE XRS Black, 137''. Package XRS - Model Black. Includes 1 to 295Frame Ass'y RENEGADE XRS Black, 137''. Package XRS - Model Black. Includes 1 to 295
-
10>295415130119 Frame Ass'y RENEGADE XRS Silver, 137''. Package XRS - Model Hyper Silver. Includes 1 to 295Frame Ass'y RENEGADE XRS Silver, 137''. Package XRS - Model Hyper Silver. Includes 1 to 295
-
15>20518325943 MAG Engine Support. Includes 15 to 20MAG Engine Support. Includes 15 to 20
-
20250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
25518325782 RH Deflector, Black PolypropyleneRH Deflector, Black Polypropylene
-
30518325783 LH Deflector, Black PolypropyleneLH Deflector, Black Polypropylene
-
35293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
40207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
45518326485 Front RadiatorFront Radiator
-
50293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
55293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
60293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
70>105518327509 E Module. Includes 70 to 105E Module. Includes 70 to 105
-
75518326795 RH MemberRH Member
-
80518326796 LH MemberLH Member
-
85518326198 Front MemberFront Member
-
90293150144 Stavex RivetStavex Rivet
-
95293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
100293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
105505073317 Leg CushionLeg Cushion
-
110518326937 RH Reinforcement, Running BoardRH Reinforcement, Running Board
-
112518326938 LH Reinforcement, Running BoardLH Reinforcement, Running Board
-
116518326617 LH Front Suspension Retainer. Package XRSLH Front Suspension Retainer. Package XRS
-
118518326616 RH Front Suspension Retainer. Package XRSRH Front Suspension Retainer. Package XRS
-
120518325973 RH Rear BaseRH Rear Base
-
125518325974 LH Rear BaseLH Rear Base
-
130250300038 Clinch StudClinch Stud
-
135518326656 SealSeal
-
140518327105 Rear CapRear Cap
-
145>150518328940 RH Stirup. Includes 145 to 150RH Stirup. Includes 145 to 150
-
150390909200 Avex RivetAvex Rivet
-
155293450268 Insert M5 X 0.8Insert M5 X 0.8
-
160>165518328528 LH Stirup. Includes 160 to 165LH Stirup. Includes 160 to 165
-
165390909200 Avex RivetAvex Rivet
-
170250000752 Torx Screw M8 X 1.25 X 25, Scotch GripTorx Screw M8 X 1.25 X 25, Scotch Grip
-
175293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
190390909100 Avex RivetAvex Rivet
-
200293150146 Henrob RivetHenrob Rivet
-
215518326954 RH Suspension BracketRH Suspension Bracket
-
220518326955 LH Suspension BracketLH Suspension Bracket
-
225518327200 RH Roller. Package XRSRH Roller. Package XRS
-
225518327093 RH Roller. Except Package XRSRH Roller. Except Package XRS
-
230518328429 LH Roller. Package EnduroLH Roller. Package Enduro
-
230518327201 LH Roller. Package XRSLH Roller. Package XRS
-
230518327094 LH Roller. Package Adrenaline, XLH Roller. Package Adrenaline, X
-
240>245518327588 Rear Radiator 137''. Includes 240 to 245Rear Radiator 137''. Includes 240 to 245
-
245293150144 Stavex RivetStavex Rivet
-
296293150144 Stavex Rivet. Except Package XRSStavex Rivet. Except Package XRS
-
298293150174 Hemlock Rivet, 6.4 mm. Except Package XRSHemlock Rivet, 6.4 mm. Except Package XRS
-
300>301518328320 Cross Member S Module. Except Package XRS. Includes 300 to 301Cross Member S Module. Except Package XRS. Includes 300 to 301
-
300>301518328322 Cross Member S Module. Package XRS. Includes 300 to 301Cross Member S Module. Package XRS. Includes 300 to 301
-
301518327487 Front Suspension SupportFront Suspension Support
-
302518327565 Front MemberFront Member
-
310233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
320250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
330207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
340233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
350293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
360293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
420293730053 Black Dart 5 mmBlack Dart 5 mm
-
420293730047 Black Dart 8 mmBlack Dart 8 mm
-
420293730060 Black Dart 10 mmBlack Dart 10 mm
-
420293730053 Black Dart 5 mmBlack Dart 5 mm
-
500518327133 Driven Pulley SupportDriven Pulley Support
-
500a518327460 Driven Pulley SupportDriven Pulley Support
-
900518326559 Rear MemberRear Member
-
1100518325114 Upper Lateral Column SupportUpper Lateral Column Support
-
1110207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1120233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1200518325115 Center Column SupportCenter Column Support
-
1300518325481 Black Rear Bumper 137''. Except Package XRSBlack Rear Bumper 137''. Except Package XRS
-
1300518326979 Black Rear Bumper 137''. Package XRSBlack Rear Bumper 137''. Package XRS
-
1340520000840 Black CapBlack Cap
-
1700>1700a518326973 Front Tunnel Protector. Includes 1700 to 1700aFront Tunnel Protector. Includes 1700 to 1700a
-
1700a517124300 WasherWasher
-
1710293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
2000860200267 Tunnel Protector Kit. with Ice RipperTunnel Protector Kit. with Ice Ripper
-
2100860200267 Tunnel Protector Kit. with Ice RipperTunnel Protector Kit. with Ice Ripper
-
2200518327145 Sub A SupportSub A Support
-
2300250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
6000250000779 Torx Screw M6 X 1.0 X 18, Scotch GripTorx Screw M6 X 1.0 X 18, Scotch Grip
-
6001224061201 Flat WasherFlat Washer
