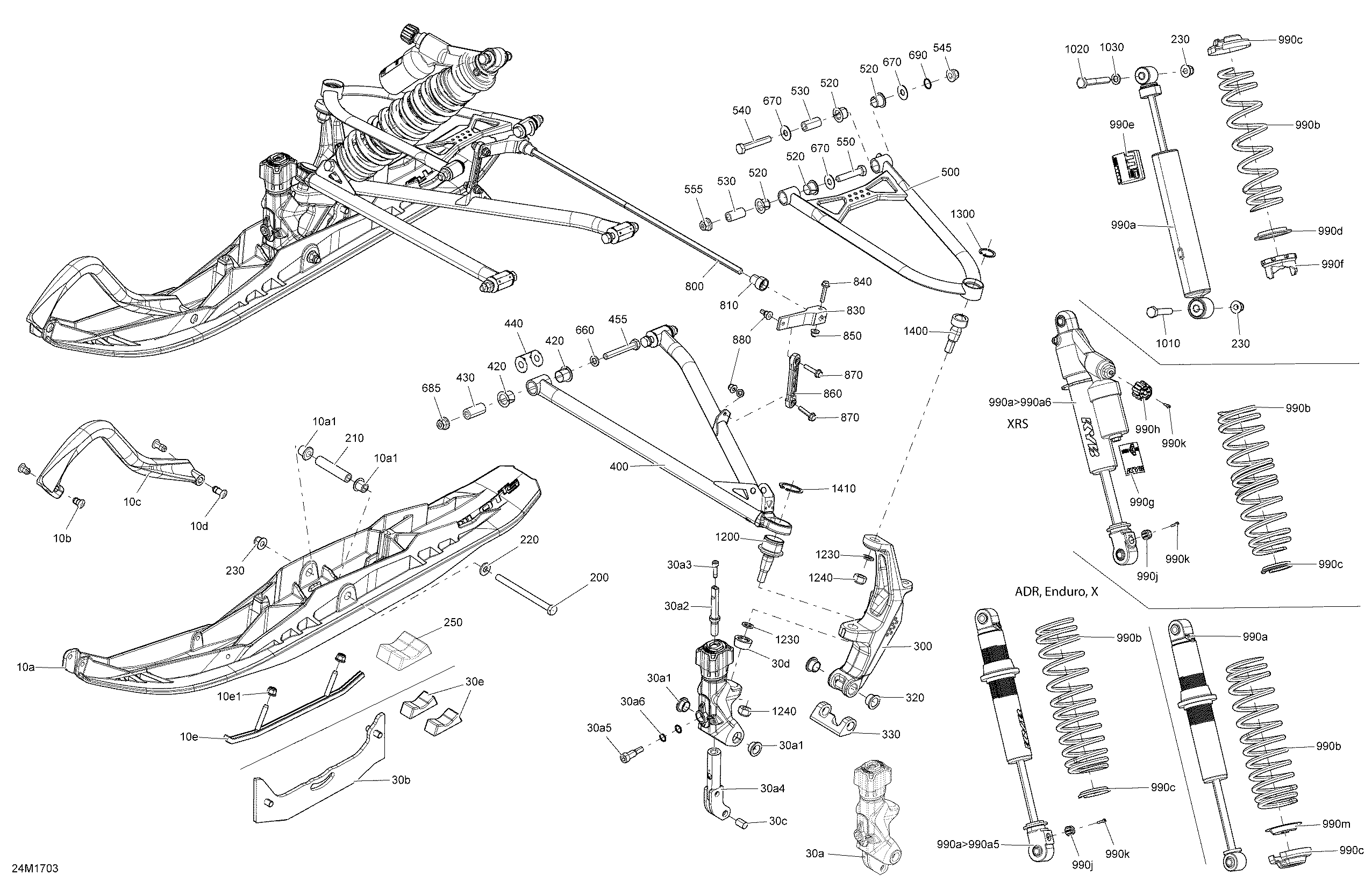

07- Front Suspension And Ski для BRP Ski-Doo RENEGADE - 2-STROKE - 600HO E-TEC - 2017
-
№АртикулНазвание
-
10a>10a1505073227 Black DS 2 Ski. X-RS (MDHB, UMHK). Includes 10a to 10a1Black DS 2 Ski. X-RS (MDHB, UMHK). Includes 10a to 10a1
-
10a>10a1505073511 Orange DS 2 Ski. X-RS (MDHA, UMHE). Includes 10a to 10a1Orange DS 2 Ski. X-RS (MDHA, UMHE). Includes 10a to 10a1
-
10a>10a1505072854 Deep Black LH Pilot 5.7 Ski. Package Adrenaline, X , X-RS (UMHF, UMHH) without Adjustable Ski Pilot TS. Includes 10a to 10a1Deep Black LH Pilot 5.7 Ski. Package Adrenaline, X , X-RS (UMHF, UMHH) without Adjustable Ski Pilot TS. Includes 10a to 10a1
-
10a>10a1505072855 Deep Black RH Pilot 5.7 Ski. Package Adrenaline, X , X-RS (UMHF, UMHH) without Adjustable Ski Pilot TS. Includes 10a to 10a1Deep Black RH Pilot 5.7 Ski. Package Adrenaline, X , X-RS (UMHF, UMHH) without Adjustable Ski Pilot TS. Includes 10a to 10a1
-
10a>10a1505073786 Deep Black LH Pilot TS Ski. Package Enduro, X, X-RS (UMHG, UMHJ) with Adjustable Ski Pilot TS. Includes 10a to 10a1Deep Black LH Pilot TS Ski. Package Enduro, X, X-RS (UMHG, UMHJ) with Adjustable Ski Pilot TS. Includes 10a to 10a1
-
10a>10a1505073796 Deep Black RH Pilot TS Ski. Package Enduro, X, X-RS (UMHG, UMHJ) with Adjustable Ski Pilot TS. Includes 10a to 10a1Deep Black RH Pilot TS Ski. Package Enduro, X, X-RS (UMHG, UMHJ) with Adjustable Ski Pilot TS. Includes 10a to 10a1
-
10a>10a1505074071 Orange Crush LH Pilot 5.7 Ski. X-RS (UMHA, UMHC). Includes 10a to 10a1Orange Crush LH Pilot 5.7 Ski. X-RS (UMHA, UMHC). Includes 10a to 10a1
-
10a>10a1505074072 Orange Crush RH Pilot 5.7 Ski. X-RS (UMHA, UMHC). Includes 10a to 10a1Orange Crush RH Pilot 5.7 Ski. X-RS (UMHA, UMHC). Includes 10a to 10a1
-
10a>10a1505074067 Orange Crush LH Pilot TS Ski. X-RS (UMHB, UMHD). Includes 10a to 10a1Orange Crush LH Pilot TS Ski. X-RS (UMHB, UMHD). Includes 10a to 10a1
-
10a>10a1505074068 Orange Crush RH Pilot TS Ski. X-RS (UMHB, UMHD). Includes 10a to 10a1Orange Crush RH Pilot TS Ski. X-RS (UMHB, UMHD). Includes 10a to 10a1
-
10a1505071781 Ski BushingSki Bushing
-
10b505071812 Retainer 17mm longRetainer 17mm long
-
10c505070963 Black Handle. Adrenaline, Enduro, XBlack Handle. Adrenaline, Enduro, X
-
10c505070963 Black Handle. X-RS (UMHF, UMHG, UMHH, UMHJ)Black Handle. X-RS (UMHF, UMHG, UMHH, UMHJ)
-
10c505073152 Full Moon Handle. X-RS (MDHA, UMHE)Full Moon Handle. X-RS (MDHA, UMHE)
-
10c505071556 Full Moon Handle. X-RS (UMHA, UMHB, UMHC, UMHD)Full Moon Handle. X-RS (UMHA, UMHB, UMHC, UMHD)
-
10d505072133 Retainer 23mm LongRetainer 23mm Long
-
10e>10e1860201044 Carbide Runner Kit (Square Runner). Adrenaline, X, X-RS (MDHA, MDHB) without Adjustable Ski Pilot TS. Includes 10e to 10e1Carbide Runner Kit (Square Runner). Adrenaline, X, X-RS (MDHA, MDHB) without Adjustable Ski Pilot TS. Includes 10e to 10e1
-
10e>10e1860201220 Carbide Runner Kit (Rond Runner). X-RS (UMHA, UMHC, UMHF, UMHH) without Adjustable Ski Pilot TS. Includes 10e to 10e1Carbide Runner Kit (Rond Runner). X-RS (UMHA, UMHC, UMHF, UMHH) without Adjustable Ski Pilot TS. Includes 10e to 10e1
-
10e1233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
30a>30a6505073789 Black LH Support. With Adjustable Ski Pilot TS. Includes 30a to 30a6Black LH Support. With Adjustable Ski Pilot TS. Includes 30a to 30a6
-
30a>30a6505073792 Black RH Support. With Adjustable Ski Pilot TS. Includes 30a to 30a6Black RH Support. With Adjustable Ski Pilot TS. Includes 30a to 30a6
-
30a1505073773 Bushing. With Adjustable Ski Pilot TSBushing. With Adjustable Ski Pilot TS
-
30a2505073771 Shaft. With Adjustable Ski Pilot TSShaft. With Adjustable Ski Pilot TS
-
30a3205562560 Socket Head Screw M6 X 25, Scotch Grip. With Adjustable Ski Pilot TSSocket Head Screw M6 X 25, Scotch Grip. With Adjustable Ski Pilot TS
-
30a4505073761 Tip. With Adjustable Ski Pilot TSTip. With Adjustable Ski Pilot TS
-
30a5505073767 Screw. With Adjustable Ski Pilot TSScrew. With Adjustable Ski Pilot TS
-
30a6293300013 O-Ring. With Adjustable Ski Pilot TSO-Ring. With Adjustable Ski Pilot TS
-
30b860201178 Carbide Runner Kit, Ajustable TS Ski. With Adjustable Ski Pilot TSCarbide Runner Kit, Ajustable TS Ski. With Adjustable Ski Pilot TS
-
30c505073782 Pin. With Adjustable Ski Pilot TSPin. With Adjustable Ski Pilot TS
-
30d505073772 Black Rubber Grommet. With Adjustable Ski Pilot TSBlack Rubber Grommet. With Adjustable Ski Pilot TS
-
30e505073788 Ski Stopper. With Adjustable Ski Pilot TSSki Stopper. With Adjustable Ski Pilot TS
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210506133300 SpacerSpacer
-
220503192496 WasherWasher
-
230233201464 Hex. Elast. Flanged Nut M10 x 1.5. ALLHex. Elast. Flanged Nut M10 x 1.5. ALL
-
250505072594 Ski Stopper. Adrenaline, Backcountry, X, X-RS EURSki Stopper. Adrenaline, Backcountry, X, X-RS EUR
-
300505073807 Black LH Ski Leg. Package Adrenaline, Enduro, X (UAHA, UAHB, UAHC, UAHD, UWHA, UWHB, UWHC, UWHD) , X-RS (UMHF, UMHG, UMHH, UMHJ, UMHK, MDHB)Black LH Ski Leg. Package Adrenaline, Enduro, X (UAHA, UAHB, UAHC, UAHD, UWHA, UWHB, UWHC, UWHD) , X-RS (UMHF, UMHG, UMHH, UMHJ, UMHK, MDHB)
-
300505073808 Black RH Ski Leg. Package Adrenaline, Enduro, X (UAHA, UAHB, UAHC, UAHD, UWHA, UWHB, UWHC, UWHD) , X-RS (UMHF, UMHG, UMHH, UMHJ, UMHK, MDHB)Black RH Ski Leg. Package Adrenaline, Enduro, X (UAHA, UAHB, UAHC, UAHD, UWHA, UWHB, UWHC, UWHD) , X-RS (UMHF, UMHG, UMHH, UMHJ, UMHK, MDHB)
-
300505073867 White LH Ski Leg. X (UAHE, UAHF, UAHG, UAHH, UWHE, UWHF, UWHG, UWHH)White LH Ski Leg. X (UAHE, UAHF, UAHG, UAHH, UWHE, UWHF, UWHG, UWHH)
-
300505073868 White RH Ski Leg. X (UAHE, UAHF, UAHG, UAHH, UWHE, UWHF, UWHG, UWHH)White RH Ski Leg. X (UAHE, UAHF, UAHG, UAHH, UWHE, UWHF, UWHG, UWHH)
-
300505073774 Clear LH Ski Leg. X-RS (UMHA, UMHB, UMHC, UMHD, UMHE, MDHA)Clear LH Ski Leg. X-RS (UMHA, UMHB, UMHC, UMHD, UMHE, MDHA)
-
300505073775 Clear RH Ski Leg. X-RS (UMHA, UMHB, UMHC, UMHD, UMHE, MDHA)Clear RH Ski Leg. X-RS (UMHA, UMHB, UMHC, UMHD, UMHE, MDHA)
-
320505072690 Leg BushingLeg Bushing
-
330505073779 Leg Stopper. Units without Adjustable Ski Pilot TSLeg Stopper. Units without Adjustable Ski Pilot TS
-
400505073426 RH Lower Arm 42'', Black EpoxyRH Lower Arm 42'', Black Epoxy
-
400505073420 LH Lower Arm 42'', Black EpoxyLH Lower Arm 42'', Black Epoxy
-
420505072208 BushingBushing
-
430505072209 BushingBushing
-
440505072634 Wear PlateWear Plate
-
455250000291 Screw Hex. M10 X 1.25 X 70Screw Hex. M10 X 1.25 X 70
-
500505073412 LH Upper Arm 42'', Black EpoxyLH Upper Arm 42'', Black Epoxy
-
500505073416 RH Upper Arm 42'', Black EpoxyRH Upper Arm 42'', Black Epoxy
-
520505072250 BushingBushing
-
530505072143 BushingBushing
-
540250000290 Screw Hex. M10 X 1.25 X 60Screw Hex. M10 X 1.25 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250000289 Screw Hex. M10 X 1.25 X 50Screw Hex. M10 X 1.25 X 50
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
685250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505072602 StabilisatorStabilisator
-
810505072064 BushingBushing
-
830505072394 Stabilisator LeverStabilisator Lever
-
840207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505072204 Double Ball Joint LinkDouble Ball Joint Link
-
870207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
990a505073699 Front Shock. Adrenaline, EnduroFront Shock. Adrenaline, Enduro
-
990a>990a5505073702 Front Shock. X. Includes 990a to 990a5Front Shock. X. Includes 990a to 990a5
-
990a>990a6505073613 RH Front Shock. X-RS. Includes 990a to 990a6RH Front Shock. X-RS. Includes 990a to 990a6
-
990a>990a6505073612 LH Front Shock. X-RS. Includes 990a to 990a6LH Front Shock. X-RS. Includes 990a to 990a6
-
990a1415093807 O-Ring. X-RSO-Ring. X-RS
-
990a1414888312 O-Ring. XO-Ring. X
-
990a2415093806 Piston Ring. X-RSPiston Ring. X-RS
-
990a2503189308 Piston Ring. XPiston Ring. X
-
990a3505070398 Air Valve. X, X-RSAir Valve. X, X-RS
-
990a4505070399 Screw. X, X-RSScrew. X, X-RS
-
990a5505070400 O-Ring. X, X-RSO-Ring. X, X-RS
-
990a6415093804 O-Ring. X-RSO-Ring. X-RS
-
990b505072760 Deep Black Spring. X-RSDeep Black Spring. X-RS
-
990b505072537 Deep Black Spring. Adrenaline, EnduroDeep Black Spring. Adrenaline, Enduro
-
990b505072741 Deep Black Spring. XDeep Black Spring. X
-
990c706200881 Spring Stopper. Adrenaline, EnduroSpring Stopper. Adrenaline, Enduro
-
990c503194270 Spring Stopper. X, X-RSSpring Stopper. X, X-RS
-
990g516005534 Shock Adjustment Decal. X-RSShock Adjustment Decal. X-RS
-
990h503193033 Shock Adjuster Knob. X-RSShock Adjuster Knob. X-RS
-
990j505072753 Adjustment Knob. X, X-RSAdjustment Knob. X, X-RS
-
990k205031060 Socket Screw M3 X 0.5 x 10. X, X-RSSocket Screw M3 X 0.5 x 10. X, X-RS
-
990m706200785 Cap. Adrenaline, EnduroCap. Adrenaline, Enduro
-
1010207005554 Hex Screw M10 X 1.5 X 55. ALLHex Screw M10 X 1.5 X 55. ALL
-
1020207006544 Hex. Screw M10 X 1.5 X 65. ALLHex. Screw M10 X 1.5 X 65. ALL
-
1030503189564 Washer. ALLWasher. ALL
-
1200505073636 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12 X 1.25Hex Elastic Nut M12 X 1.25
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370035 CirclipCirclip
