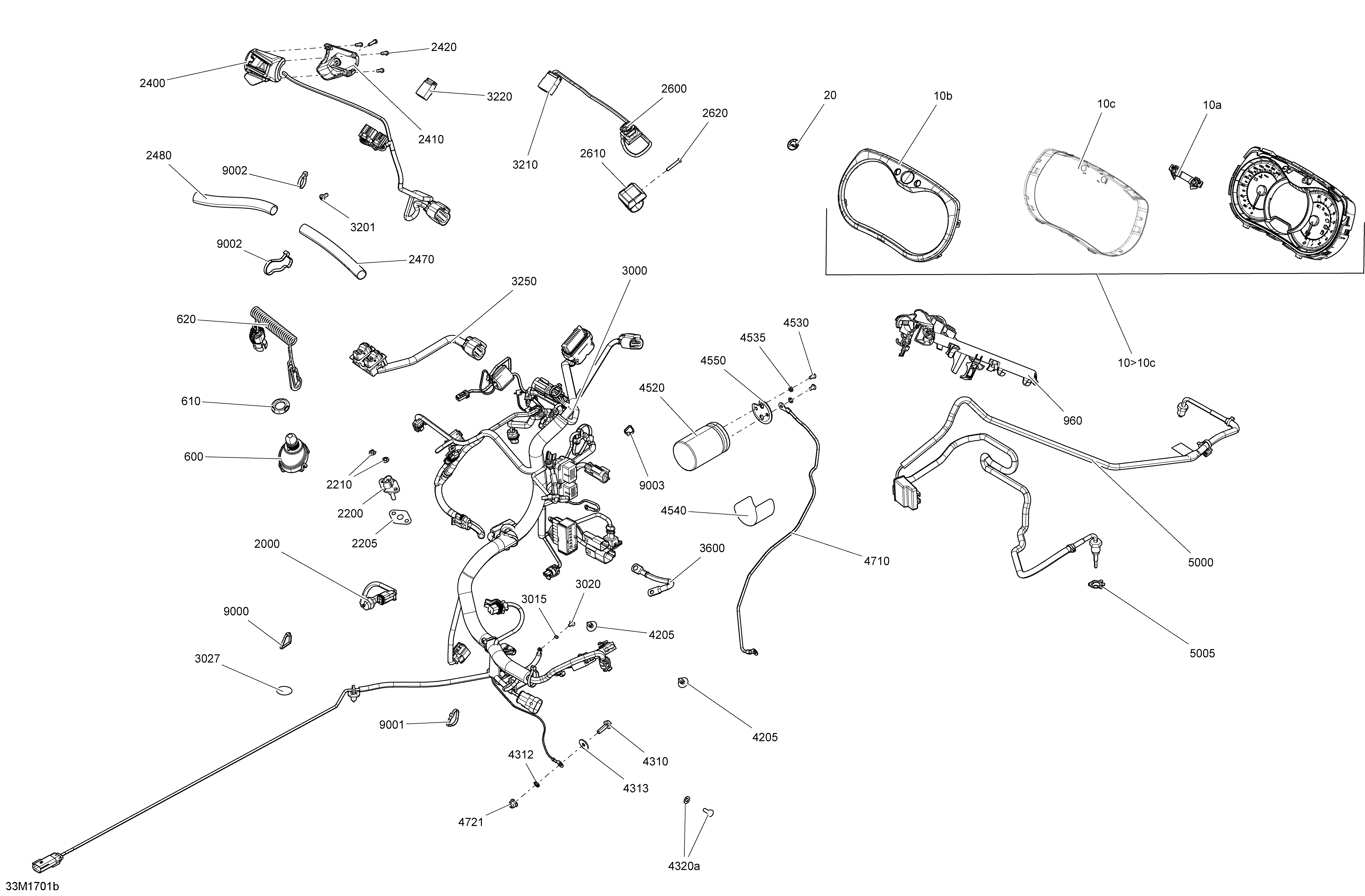

10- Electrical System - with Manual Start для BRP Ski-Doo RENEGADE - 2-STROKE - 600HO E-TEC - 2017
-
№АртикулНазвание
-
10>10c515177910 Speedometer. Package Backcountry X, XRS, X. Includes 10 to 10cSpeedometer. Package Backcountry X, XRS, X. Includes 10 to 10c
-
10>10c515177914 Speedometer. Package Backcountry, Adrenaline. Includes 10 to 10cSpeedometer. Package Backcountry, Adrenaline. Includes 10 to 10c
-
10a415129355 Speedometer ButtonSpeedometer Button
-
10b415129348 Gauge Ring. Package Backcountry X, XRS, XGauge Ring. Package Backcountry X, XRS, X
-
10b415129370 Gauge Ring. Package Backcountry, AdrenalineGauge Ring. Package Backcountry, Adrenaline
-
10c415129349 LensLens
-
20516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
600515178225 DESS SwitchDESS Switch
-
610278002963 Safety NutSafety Nut
-
620515178286 Grey - RF Key Ass'yGrey - RF Key Ass'y
-
960515177134 Connector PlateConnector Plate
-
2000515177813 Temperature SensorTemperature Sensor
-
2200515176366 Air Temperature SensorAir Temperature Sensor
-
2205508000769 SealSeal
-
2210389804300 Push NutPush Nut
-
2400515178197 LH Switch Housing. Package Backcountry X, XRS, XLH Switch Housing. Package Backcountry X, XRS, X
-
2400515178198 LH Housing. Package Backcountry, AdrenalineLH Housing. Package Backcountry, Adrenaline
-
2410515177147 Housing PlateHousing Plate
-
2420250000671 Torx ScrewTorx Screw
-
2470415129879 Protector TubeProtector Tube
-
2480415129879 Protector TubeProtector Tube
-
2600515177362 Kill SwitchKill Switch
-
2610515177310 Kill Switch SupportKill Switch Support
-
2620250000263 Torx Screw #8-18Torx Screw #8-18
-
3000515177985 Main Harness. Engine 800R E-TECMain Harness. Engine 800R E-TEC
-
3015234141601 Lock Washer 4 mmLock Washer 4 mm
-
3020250000741 Screw-Torx Button Head M4 X 8Screw-Torx Button Head M4 X 8
-
3027518325560 Adhesive PatchAdhesive Patch
-
3201250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
3210515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
3220515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
3600515177289 Ground WireGround Wire
-
4205414644300 DartDart
-
4310207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4312234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
4313250200082 Flat WasherFlat Washer
-
4320a250000282 Battery Bolt KitBattery Bolt Kit
-
4320a250000282 Battery Bolt KitBattery Bolt Kit
-
4520515177272 CapacitorCapacitor
-
4530250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
4535250200026 Lock washerLock washer
-
4540516008155 English DecalEnglish Decal
-
4550515177193 CapCap
-
4721233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
5000515177758 Module. Package BackCountry, BackCountry XModule. Package BackCountry, BackCountry X
-
5000515177759 MODULE. Package X, XRS, AdrenalineMODULE. Package X, XRS, Adrenaline
-
5005514055100 Tab LockTab Lock
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9001293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9002414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9003293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9004293750009 Tie-Rap 173 mmTie-Rap 173 mm
