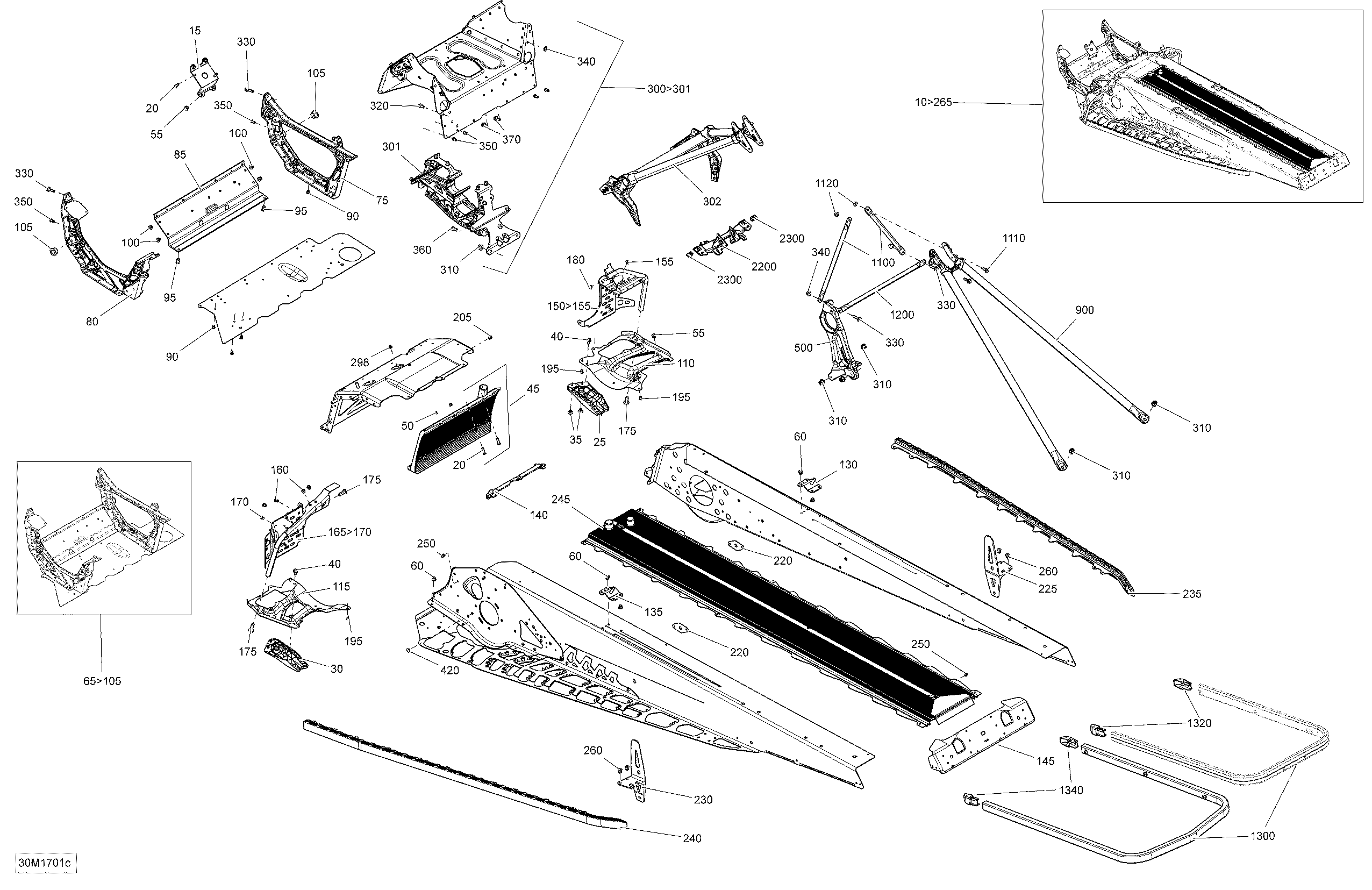

09- Frame - 146 Backcountry_Backcountry X для BRP Ski-Doo RENEGADE - 2-STROKE - 600HO E-TEC - 2017
-
№АртикулНазвание
-
10>265415130132 Orange - Frame Ass'y 146. Model Orange Crush. Includes 10 to 265Orange - Frame Ass'y 146. Model Orange Crush. Includes 10 to 265
-
10>265415130133 Black - Frame Ass'y 146. Model Black. Includes 10 to 265Black - Frame Ass'y 146. Model Black. Includes 10 to 265
-
15>20518325943 MAG Engine Support. Includes 15 to 20MAG Engine Support. Includes 15 to 20
-
20250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
25518325782 RH Deflector, Black PolypropyleneRH Deflector, Black Polypropylene
-
30518325783 LH Deflector, Black PolypropyleneLH Deflector, Black Polypropylene
-
35293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
40207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
45518326485 Front RadiatorFront Radiator
-
50293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
55293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
60293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
65>105518327567 E Module. Includes 65 to 105E Module. Includes 65 to 105
-
75518326795 RH MemberRH Member
-
80518326796 LH MemberLH Member
-
85518326198 Front MemberFront Member
-
90293150144 Stavex RivetStavex Rivet
-
95293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
100293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
105505073317 Leg CushionLeg Cushion
-
110518326937 RH Reinforcement, Running BoardRH Reinforcement, Running Board
-
115518326938 LH Reinforcement, Running BoardLH Reinforcement, Running Board
-
130518325973 RH Rear BaseRH Rear Base
-
135518325974 LH Rear BaseLH Rear Base
-
140518326656 SealSeal
-
145518327105 Rear CapRear Cap
-
150>155518328940 RH Stirup. Includes 150 to 155RH Stirup. Includes 150 to 155
-
155390909200 Avex RivetAvex Rivet
-
160293450268 Insert M5 X 0.8Insert M5 X 0.8
-
165>170518328528 LH Stirup. Includes 165 to 170LH Stirup. Includes 165 to 170
-
170390909200 Avex RivetAvex Rivet
-
175250000752 Torx Screw M8 X 1.25 X 25, Scotch GripTorx Screw M8 X 1.25 X 25, Scotch Grip
-
180293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
160293450268 Insert M5 X 0.8Insert M5 X 0.8
-
195390909100 Avex RivetAvex Rivet
-
250293150144 Stavex RivetStavex Rivet
-
205293150146 Henrob RivetHenrob Rivet
-
225518327470 RH Suspension BracketRH Suspension Bracket
-
230518327471 LH Suspension BracketLH Suspension Bracket
-
235518327472 RH RollerRH Roller
-
240518327473 LH RollerLH Roller
-
245>250518326728 Rear Radiator Ass'y, 146''. Includes 245 to 250Rear Radiator Ass'y, 146''. Includes 245 to 250
-
250293150144 Stavex RivetStavex Rivet
-
260293150147 Hemlock RivetHemlock Rivet
-
298390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
301>302518328320 Cross Member S Module. Includes 301 to 302Cross Member S Module. Includes 301 to 302
-
301518327487 Front Suspension SupportFront Suspension Support
-
302518327565 Front MemberFront Member
-
310233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
320250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
330207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
340233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
350293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
360293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
420293730053 Black Dart 5 mmBlack Dart 5 mm
-
420293730047 Black Dart 8 mmBlack Dart 8 mm
-
420293730060 Black Dart 10 mmBlack Dart 10 mm
-
500518327133 Driven Pulley SupportDriven Pulley Support
-
900518326559 Rear MemberRear Member
-
1100518325114 Upper Lateral Column SupportUpper Lateral Column Support
-
1110207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1120233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1200518325115 Center Column SupportCenter Column Support
-
1300518326599 Black Rear Bumper, 146''. Model North AmericaBlack Rear Bumper, 146''. Model North America
-
1300518327664 Black Rear Bumper, 146''. Model EuropeBlack Rear Bumper, 146''. Model Europe
-
1320520000965 Black RH Cap. Model EuropeBlack RH Cap. Model Europe
-
1320520000964 Black LH Cap. Model EuropeBlack LH Cap. Model Europe
-
1340520000840 Black Cap. Model North AmericaBlack Cap. Model North America
-
2200518327145 Sub A SupportSub A Support
-
2300250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
6000250000779 Torx Screw M6 X 1.0 X 18, Scotch GripTorx Screw M6 X 1.0 X 18, Scotch Grip
-
6001224061201 Flat WasherFlat Washer
