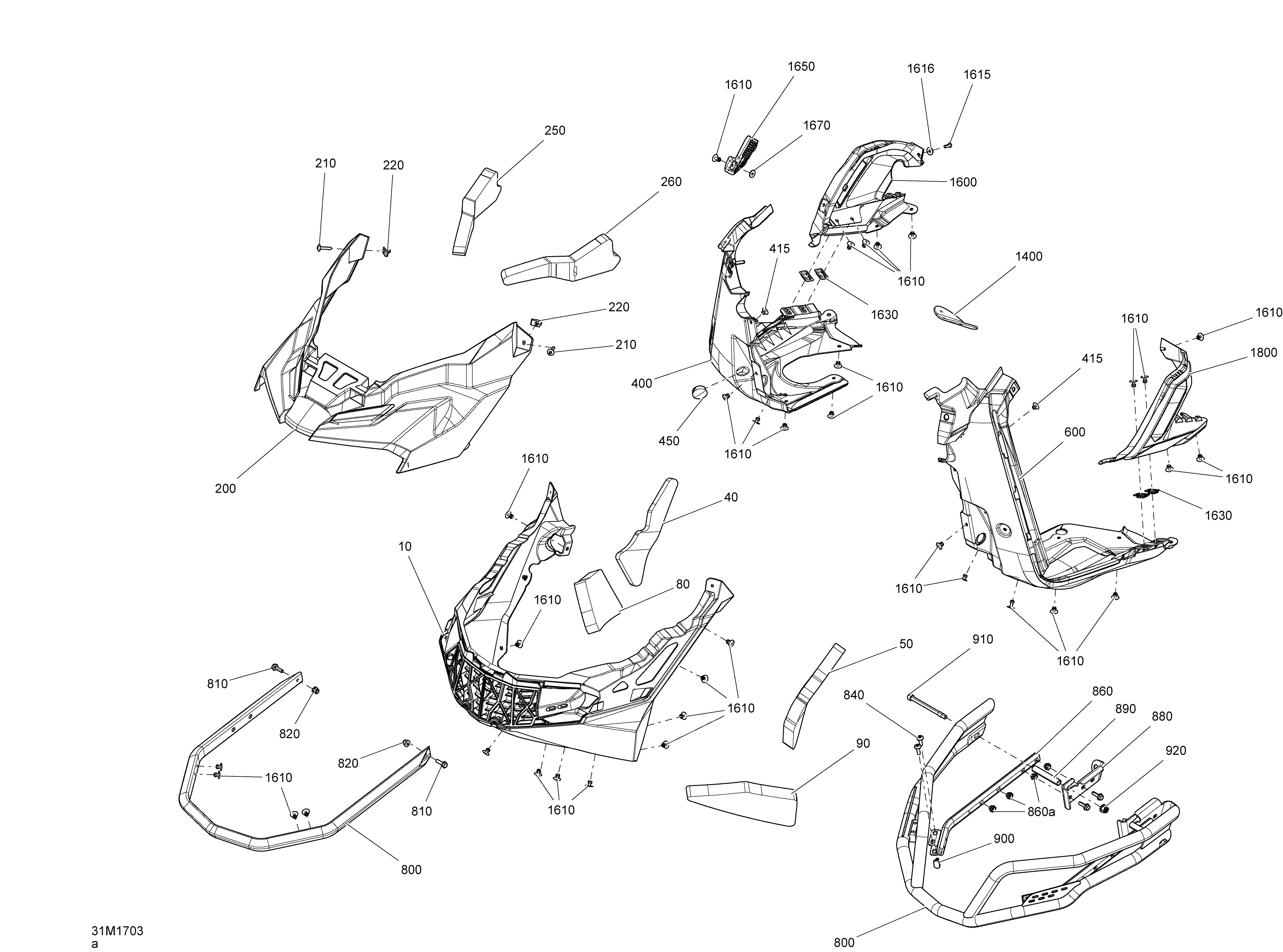

09- Bottom Pan для BRP Ski-Doo RENEGADE - 2-STROKE - 600HO E-TEC - 2017
-
№АртикулНазвание
-
10502007172 Black Front Bottom Pan. Model BlackBlack Front Bottom Pan. Model Black
-
10502007654 Orange Front Bottom Pan. Model OrangeOrange Front Bottom Pan. Model Orange
-
40502007243 RH Bottom Pan Upper FoamRH Bottom Pan Upper Foam
-
50502007244 LH Bottom Pan Upper FoamLH Bottom Pan Upper Foam
-
80502007245 RH Bottom Pan Lower FoamRH Bottom Pan Lower Foam
-
90502007246 LH Bottom Pan Lower FoamLH Bottom Pan Lower Foam
-
200502007173 Black Bottom Pan Cap. Package Adrenaline, X, XRS, BackCountryBlack Bottom Pan Cap. Package Adrenaline, X, XRS, BackCountry
-
200502007481 Black Bottom Pan Cap. Package EnduroBlack Bottom Pan Cap. Package Enduro
-
200502007332 Grey Bottom Pan Cap. Package XRSGrey Bottom Pan Cap. Package XRS
-
200502007656 Orange Bottom Pan Cap. Package Adrenaline, BackCountryOrange Bottom Pan Cap. Package Adrenaline, BackCountry
-
200502007518 White Bottom Pan Cap. Package XWhite Bottom Pan Cap. Package X
-
210250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
220250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
250502007263 RH Bottom Pan Cap FoamRH Bottom Pan Cap Foam
-
260502007264 LH Bottom Pan Cap FoamLH Bottom Pan Cap Foam
-
400502007340 Black RH Bottom PanBlack RH Bottom Pan
-
415293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
450414916600 Black Nylon CapBlack Nylon Cap
-
600502007175 Black LH Bottom PanBlack LH Bottom Pan
-
800502007176 Black Front Bumper. Except Package EnduroBlack Front Bumper. Except Package Enduro
-
800502007490 Black Front Bumper. Package EnduroBlack Front Bumper. Package Enduro
-
810207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
820233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
840250000721 Torx Screw. Package EnduroTorx Screw. Package Enduro
-
860>860a502007493 Tube. Package Enduro. Includes 860 to 860aTube. Package Enduro. Includes 860 to 860a
-
860a293450232 Insert M6 X 1.0Insert M6 X 1.0
-
880502007496 LH Plate. Package EnduroLH Plate. Package Enduro
-
880502007497 RH Plate. Package EnduroRH Plate. Package Enduro
-
890502007498 Pipe. Package EnduroPipe. Package Enduro
-
900502007499 Black Rubber Cap. Package EnduroBlack Rubber Cap. Package Enduro
-
910250000833 Socket Screw M8 X 1.25. Package EnduroSocket Screw M8 X 1.25. Package Enduro
-
920233281464 Elastic Flange Nut M8. Package EnduroElastic Flange Nut M8. Package Enduro
-
1400502006935 Snow DeflectorSnow Deflector
-
1600502007297 Black - RH Side Bottom Pan Panel. Package Adrenaline, Enduro, X, XRSBlack - RH Side Bottom Pan Panel. Package Adrenaline, Enduro, X, XRS
-
1600502007306 Black - RH Side Bottom Pan Panel. Package BackCountryBlack - RH Side Bottom Pan Panel. Package BackCountry
-
1600502007659 Hyper Silver - RH Side Bottom Pan Panel. Package XRSHyper Silver - RH Side Bottom Pan Panel. Package XRS
-
1610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1615250000652 Socket Screw M5 X .80 X 16Socket Screw M5 X .80 X 16
-
1616250200025 Washer M5Washer M5
-
1630517305109 Rivet PlateRivet Plate
-
1650517305280 Stopper BumperStopper Bumper
-
1670517124300 WasherWasher
-
1800502007298 Black - LH Side Bottom Pan Panel. Package Adrenaline, Enduro, X, XRSBlack - LH Side Bottom Pan Panel. Package Adrenaline, Enduro, X, XRS
-
1800502007304 Black - LH Side Bottom Pan Panel. Package BackCountryBlack - LH Side Bottom Pan Panel. Package BackCountry
-
1800502007660 Hyper Silver - LH Side Bottom Pan Panel. Package XRSHyper Silver - LH Side Bottom Pan Panel. Package XRS
