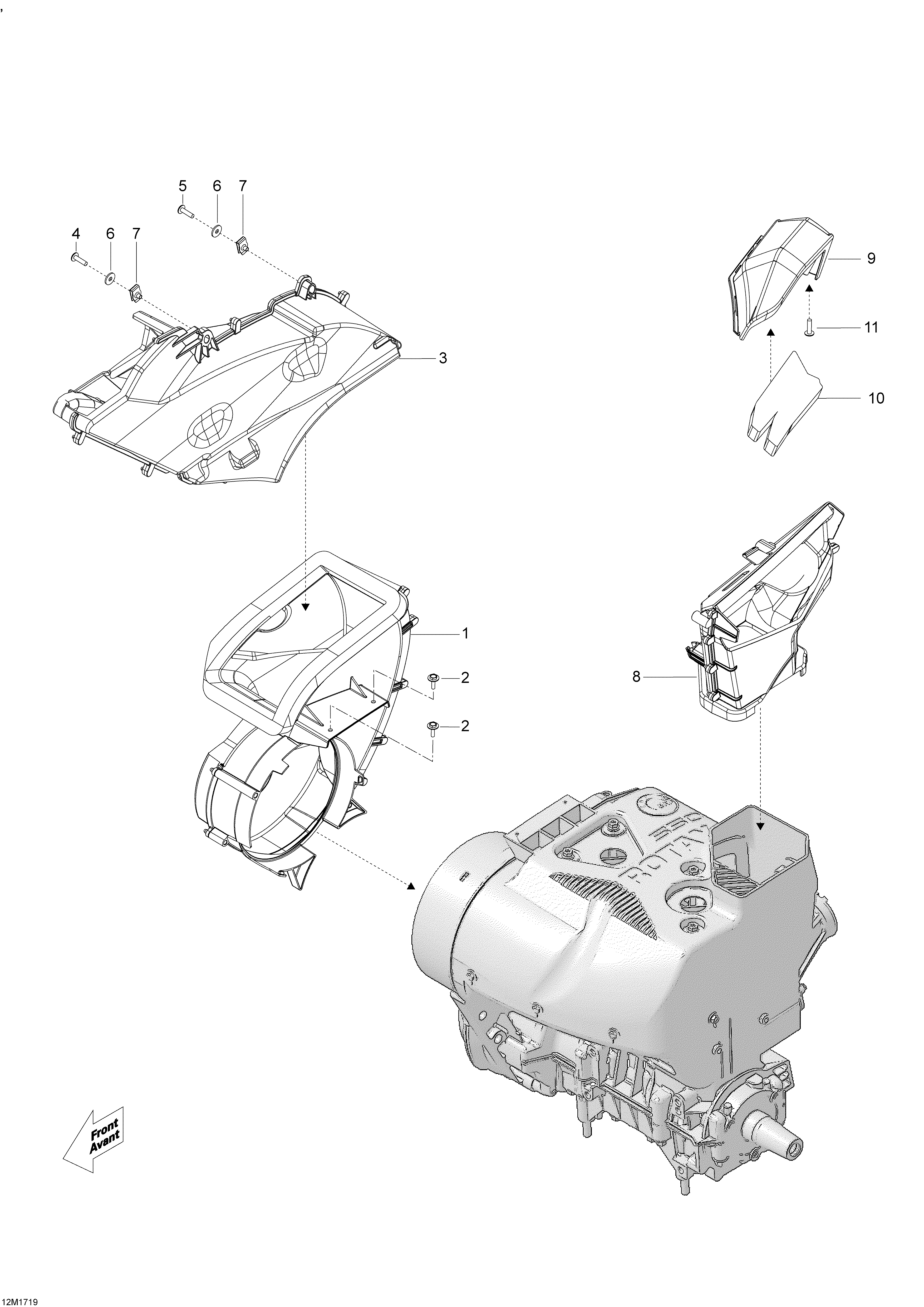

01- Cooling System для BRP Ski-Doo TUNDRA - 2-STROKE - WT Europe - 2017
-
№АртикулНазвание
-
1509000840 Inlet DuctInlet Duct
-
2250000725 Screw M4 X 16Screw M4 X 16
-
3509000684 Chamber Ass'yChamber Ass'y
-
4250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
5250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
6391301600 WasherWasher
-
7250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
8509000683 Duct-Outlet Ass'yDuct-Outlet Ass'y
-
9509000687 Air Out DeflecAir Out Deflec
-
10509000831 Foam-InFoam-In
-
11293700048 Screw Plastofast Mp 6 X 16 PzScrew Plastofast Mp 6 X 16 Pz
