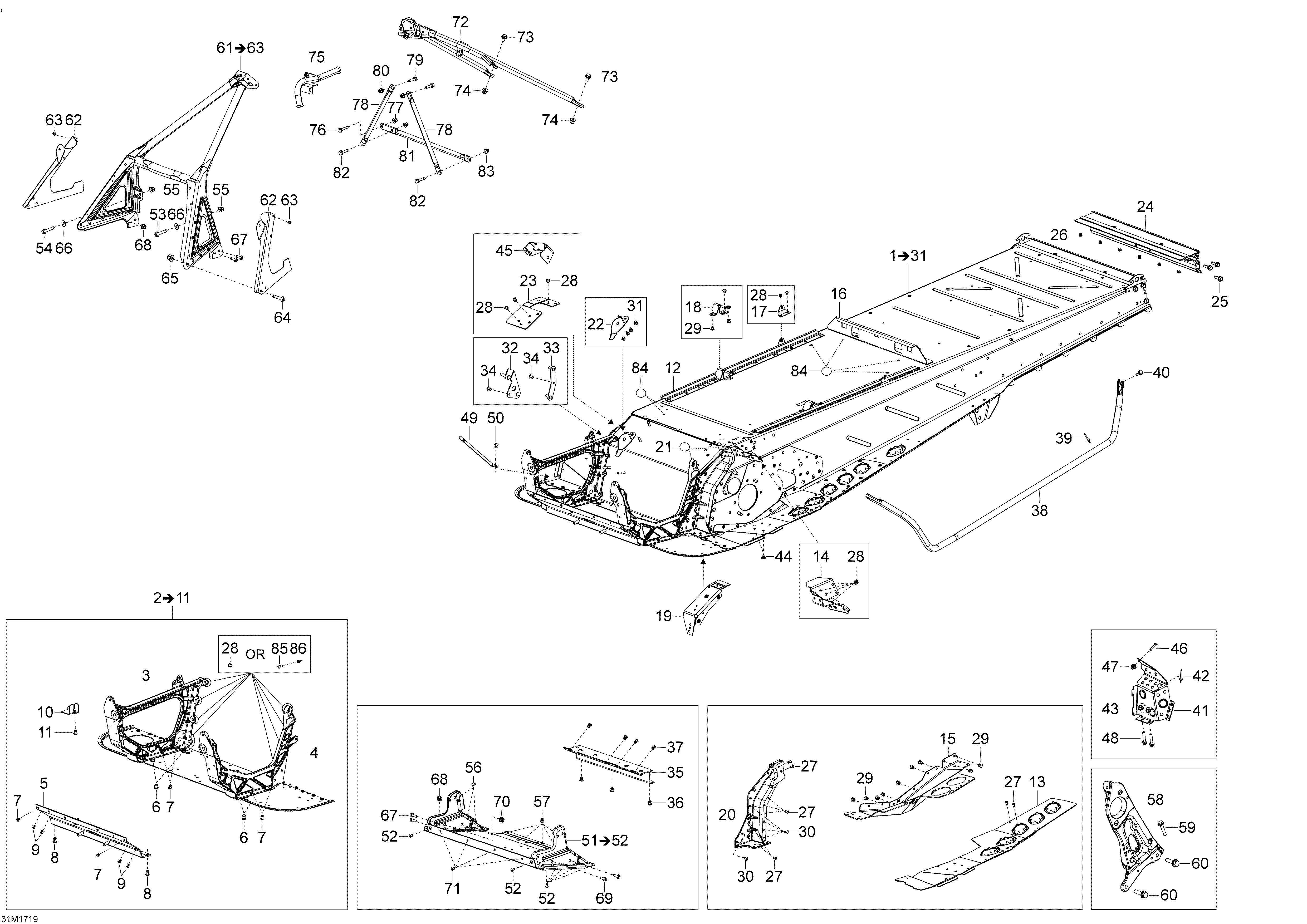

09- Frame для BRP Ski-Doo TUNDRA - 2-STROKE - WT Europe - 2017
-
№АртикулНазвание
-
1518329362 Frame. Includes 1 To 31Frame. Includes 1 To 31
-
2518328817 Module E. Includes 2 To 11Module E. Includes 2 To 11
-
3518326795 RH MemberRH Member
-
4518325558 LH MemberLH Member
-
5518325818 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 Avex RivetAvex Rivet
-
8293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
9293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10518328433 Muffler SupportMuffler Support
-
11293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
12518326107 Fastening railFastening rail
-
13518328846 Black - LH FootrestBlack - LH Footrest
-
13518328847 Black - RH FootrestBlack - RH Footrest
-
14605355235 Fastening BracketFastening Bracket
-
15518328016 LH Drive Axle CoverLH Drive Axle Cover
-
15518328017 RH Drive Axle CoverRH Drive Axle Cover
-
16518325986 Battery support plateBattery support plate
-
17518329164 Seat Box BracketSeat Box Bracket
-
18518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
18518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
19518326430 Clinch nut plateClinch nut plate
-
20518325524 Frame Corner LHFrame Corner LH
-
20518328024 Frame Corner RHFrame Corner RH
-
21518325560 Adhesive PatchAdhesive Patch
-
22518326520 Rh.SupportRh.Support
-
23518327877 Chain Case SupportChain Case Support
-
24518328748 Rear ProfileRear Profile
-
25207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
26293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
27390909100 Avex RivetAvex Rivet
-
28390909200 Avex RivetAvex Rivet
-
29293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
30293150183 RivetRivet
-
31293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
32518328028 Chain Case Counter Plate FrontChain Case Counter Plate Front
-
33518328029 Chain Case Counter Plate RearChain Case Counter Plate Rear
-
34390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
35518326719 Engine SupportEngine Support
-
36293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
37390909200 Avex RivetAvex Rivet
-
38518326963 Footboard Support Tube, LHFootboard Support Tube, LH
-
38518326964 Footboard Support Tube, RHFootboard Support Tube, RH
-
39390909100 Avex RivetAvex Rivet
-
40207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
41518328881 LH Toe HookLH Toe Hook
-
41518328882 RH Toe HookRH Toe Hook
-
42390909200 Avex RivetAvex Rivet
-
43605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
44414644300 DartDart
-
45518327878 Fastening BracketFastening Bracket
-
46207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
47233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
48250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
49514054846 Spring BracketSpring Bracket
-
50390909200 Avex RivetAvex Rivet
-
51518326213 S Module. Includes 51 To 52S Module. Includes 51 To 52
-
52390909200 Avex RivetAvex Rivet
-
53207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
54207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
55233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
56390909100 Avex RivetAvex Rivet
-
57390909200 Avex RivetAvex Rivet
-
58518328434 Pulley SupportPulley Support
-
59207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
60207583086 Flanged Hex. Screw M8 X 30, Scotch GripFlanged Hex. Screw M8 X 30, Scotch Grip
-
61518327004 Front Member Assy. Includes 61 To 63Front Member Assy. Includes 61 To 63
-
62502007077 Bumper Fastener LHBumper Fastener LH
-
62502007078 Bumper Fastener RHBumper Fastener RH
-
63390909200 Avex RivetAvex Rivet
-
64207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
65233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
66224061201 Flat WasherFlat Washer
-
67207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
68233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
69207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
70233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
71390909200 Avex RivetAvex Rivet
-
72518329105 Upper Support TubeUpper Support Tube
-
73207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
74232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
75512060920 Guide Tube RERGuide Tube RER
-
76207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
77233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
78518325114 Upper Column SupportUpper Column Support
-
79207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
80233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
81518327876 Upper ColumnUpper Column
-
82207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
83233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
84518325560 Adhesive PatchAdhesive Patch
-
85207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
86233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
