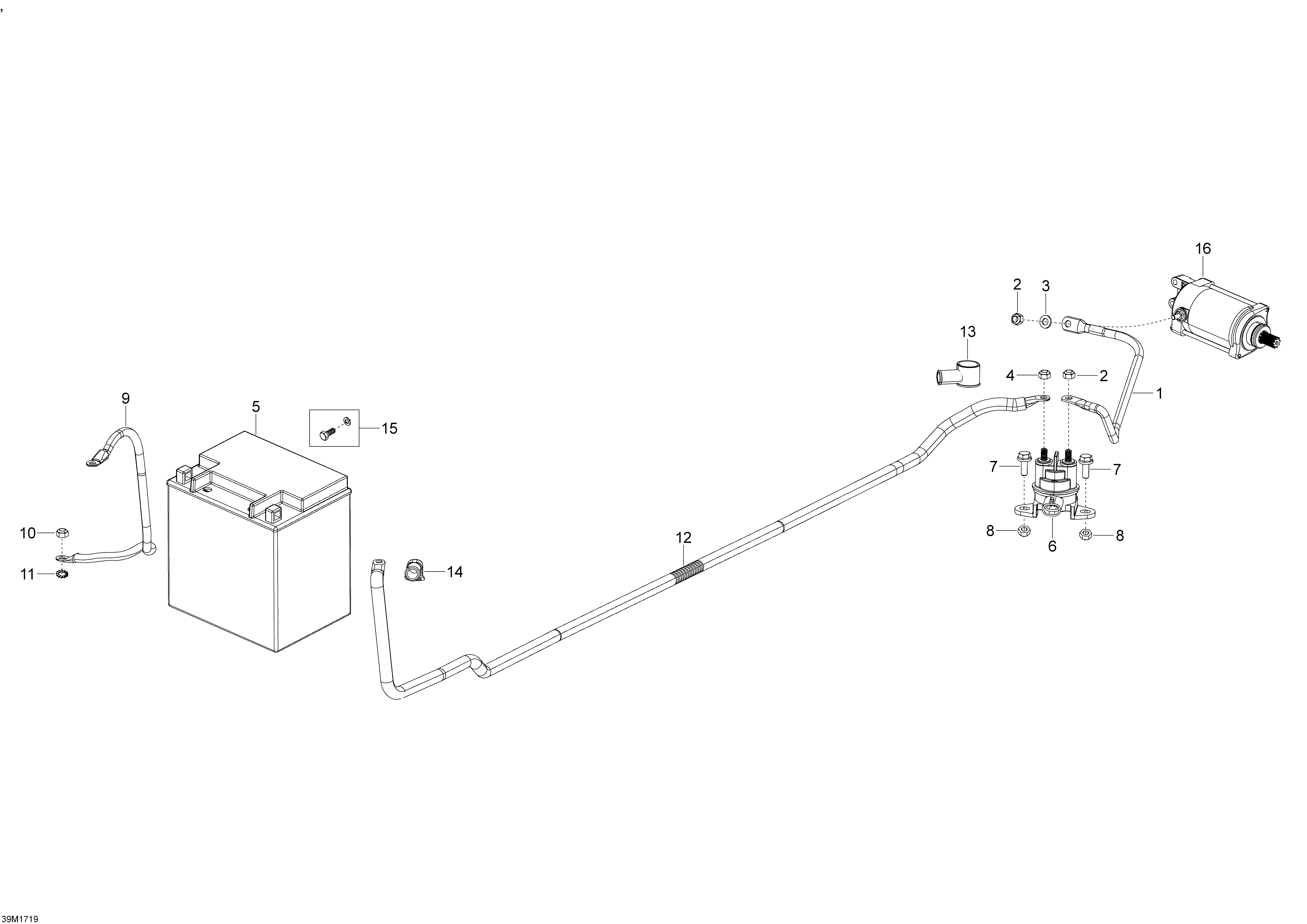

10- Battery And Starter для BRP Ski-Doo TUNDRA - 2-STROKE - WT Europe - 2017
-
№АртикулНазвание
-
1515177605 Battery WireBattery Wire
-
2232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
3234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
6278003012 Starter RelayStarter Relay
-
7207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9515176780 Ground WireGround Wire
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
12515176967 Battery CableBattery Cable
-
13710000495 Protector CapProtector Cap
-
14710000495 Protector CapProtector Cap
-
15250000282 Battery Bolt KitBattery Bolt Kit
-
16515178187 Electric StarterElectric Starter
