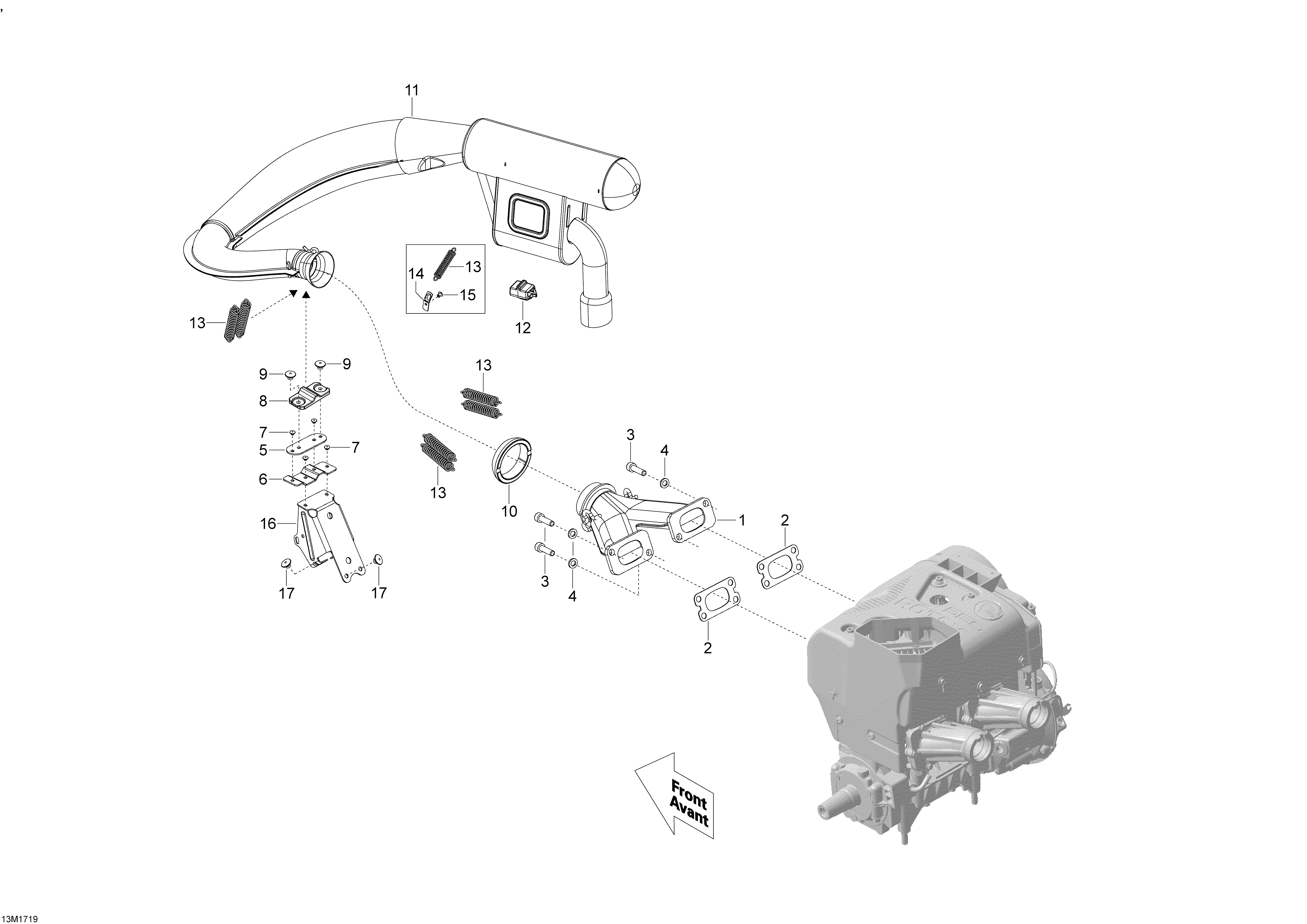

01- Exhaust System для BRP Ski-Doo TUNDRA - 2-STROKE - WT Europe - 2017
-
№АртикулНазвание
-
1420673065 Exhaust ManifoldExhaust Manifold
-
2420831849 Gasket 1.0 mmGasket 1.0 mm
-
3205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
4250200111 WasherWasher
-
8514054617 BumperBumper
-
9293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
10514053644 Exhaust GasketExhaust Gasket
-
11514055126 Calibrated Tube Ass'yCalibrated Tube Ass'y
-
12514054606 Upper StopperUpper Stopper
-
13415107100 SpringSpring
-
14514054391 Spring BracketSpring Bracket
-
15390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
16514054767 Exhaust Muffler SupportExhaust Muffler Support
-
17293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
