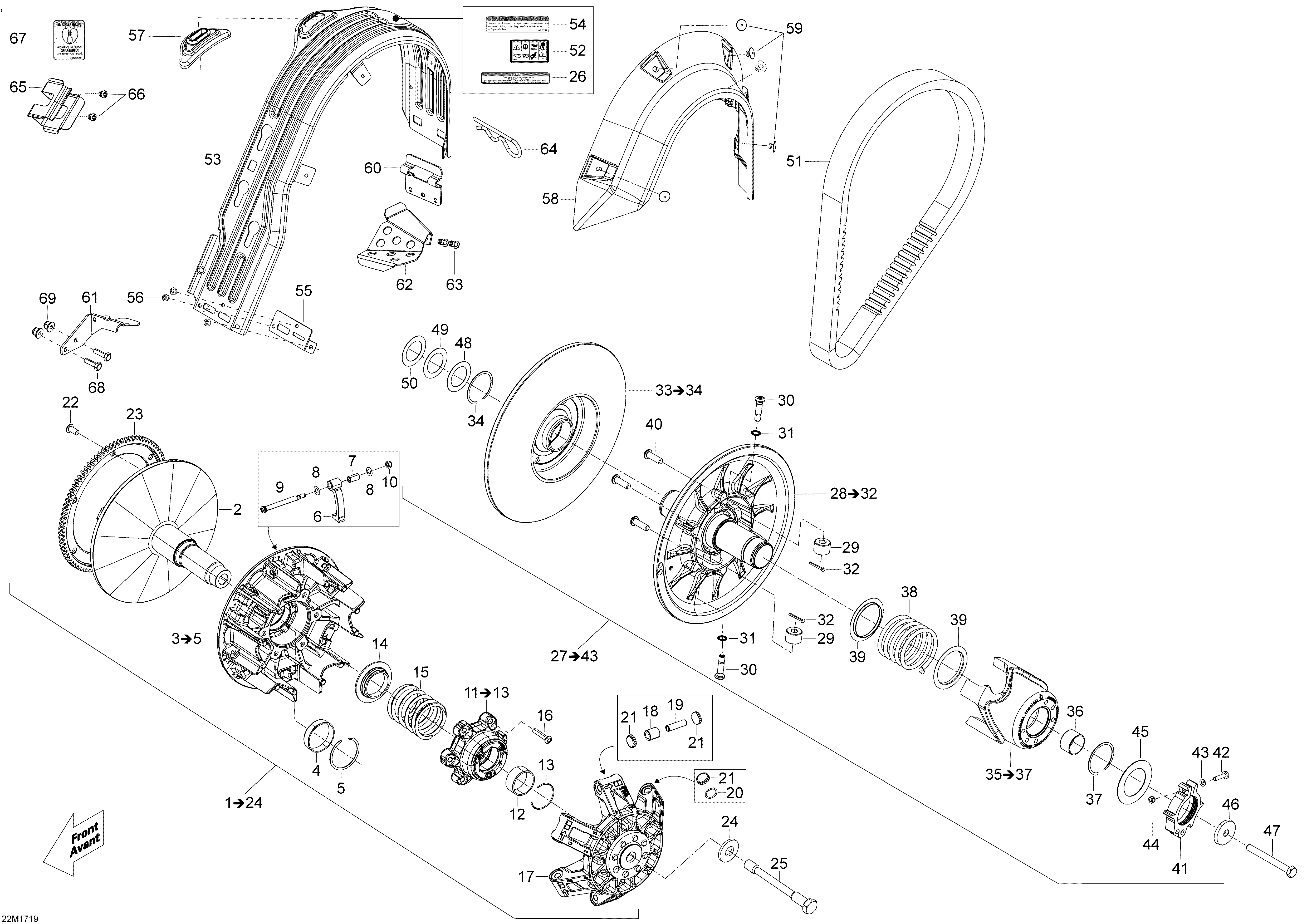

05- Pulley System для BRP Ski-Doo TUNDRA - 2-STROKE - WT Europe - 2017
-
№АртикулНазвание
-
2417224097 Fixed Flange Ass'yFixed Flange Ass'y
-
3417224101 Sliding Flange Ass'y. Includes 3 To 5Sliding Flange Ass'y. Includes 3 To 5
-
4417222758 BushingBushing
-
5293370037 CirclipCirclip
-
6417223604 Ramp 700 Ass'yRamp 700 Ass'y
-
8417223255 Thrust WasherThrust Washer
-
9417223694 Ramp AxleRamp Axle
-
10232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
11417223907 Spring Cover Ass'y. Includes 11 To 13Spring Cover Ass'y. Includes 11 To 13
-
13293370065 CirclipCirclip
-
14417223752 Seat SpringSeat Spring
-
15417223748 Spring ClutchSpring Clutch
-
16250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
17417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
18417223767 RollerRoller
-
19417223257 Roller AxleRoller Axle
-
20293300185 O-RingO-Ring
-
21417223919 Slider ShoeSlider Shoe
-
22250000706 Torx Button Head Screw M8 X 16Torx Button Head Screw M8 X 16
-
23417223476 Crown Gear LaunchCrown Gear Launch
-
24250200144 Conical Spring Washer M14Conical Spring Washer M14
-
25417300432 Pulley Drive BoltPulley Drive Bolt
-
26516005503 Decal, EnglishDecal, English
-
28417127392 Fixe Flange Ass'y. Includes 28 To 32Fixe Flange Ass'y. Includes 28 To 32
-
29417127016 RollerRoller
-
30417127294 Pivot StudPivot Stud
-
31250200009 Lock Washer 8 mmLock Washer 8 mm
-
32250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
33417127366 Slider Flange Ass'y. Includes 33 To 34Slider Flange Ass'y. Includes 33 To 34
-
34293370049 CirclipCirclip
-
35417127367 Cam Ass'y. Includes 35 To 37Cam Ass'y. Includes 35 To 37
-
36417127318 BushingBushing
-
37293370049 Circlip. Includes 38 to 43Circlip. Includes 38 to 43
-
38417127061 SpringSpring
-
39417127116 Swivel AbutmentSwivel Abutment
-
40250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
41415129604 Calibration Ass'yCalibration Ass'y
-
42205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
43234051410 Flat Washer M5Flat Washer M5
-
44232551414 Elastic Stop Nut M5. Includes 44 to 45Elastic Stop Nut M5. Includes 44 to 45
-
45417127155 Washer. Includes 46 to 47Washer. Includes 46 to 47
-
46517302322 Strength WasherStrength Washer
-
47207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
48417300252 Spacer. (Adjustment Part, Use If Needed)Spacer. (Adjustment Part, Use If Needed)
-
49417300265 Spacer. (Adjustment Part, Use If Needed)Spacer. (Adjustment Part, Use If Needed)
-
50504112000 Shim. (Adjustment Part, Use If Needed)Shim. (Adjustment Part, Use If Needed)
-
51414860700 Drive BeltDrive Belt
-
52516003919 Warning DecalWarning Decal
-
53417300382 Belt GuardBelt Guard
-
54516006900 Security Label, Belt GuardSecurity Label, Belt Guard
-
55417300380 ReinforcementReinforcement
-
56390909200 Avex RivetAvex Rivet
-
57417300381 GuideGuide
-
58417300356 Side ProtectorSide Protector
-
59293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
60417300363 Belt Guard BracketBelt Guard Bracket
-
61417300451 Belt Guard BracketBelt Guard Bracket
-
62518325626 Brake Hose CoverBrake Hose Cover
-
63293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
64114045200 Hair PinHair Pin
-
65517281905 BracketBracket
-
66390909100 Avex RivetAvex Rivet
-
67516005511 Belt Decal, EnglishBelt Decal, English
-
68207162044 Hex. Screw M6 X 20Hex. Screw M6 X 20
-
69233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
