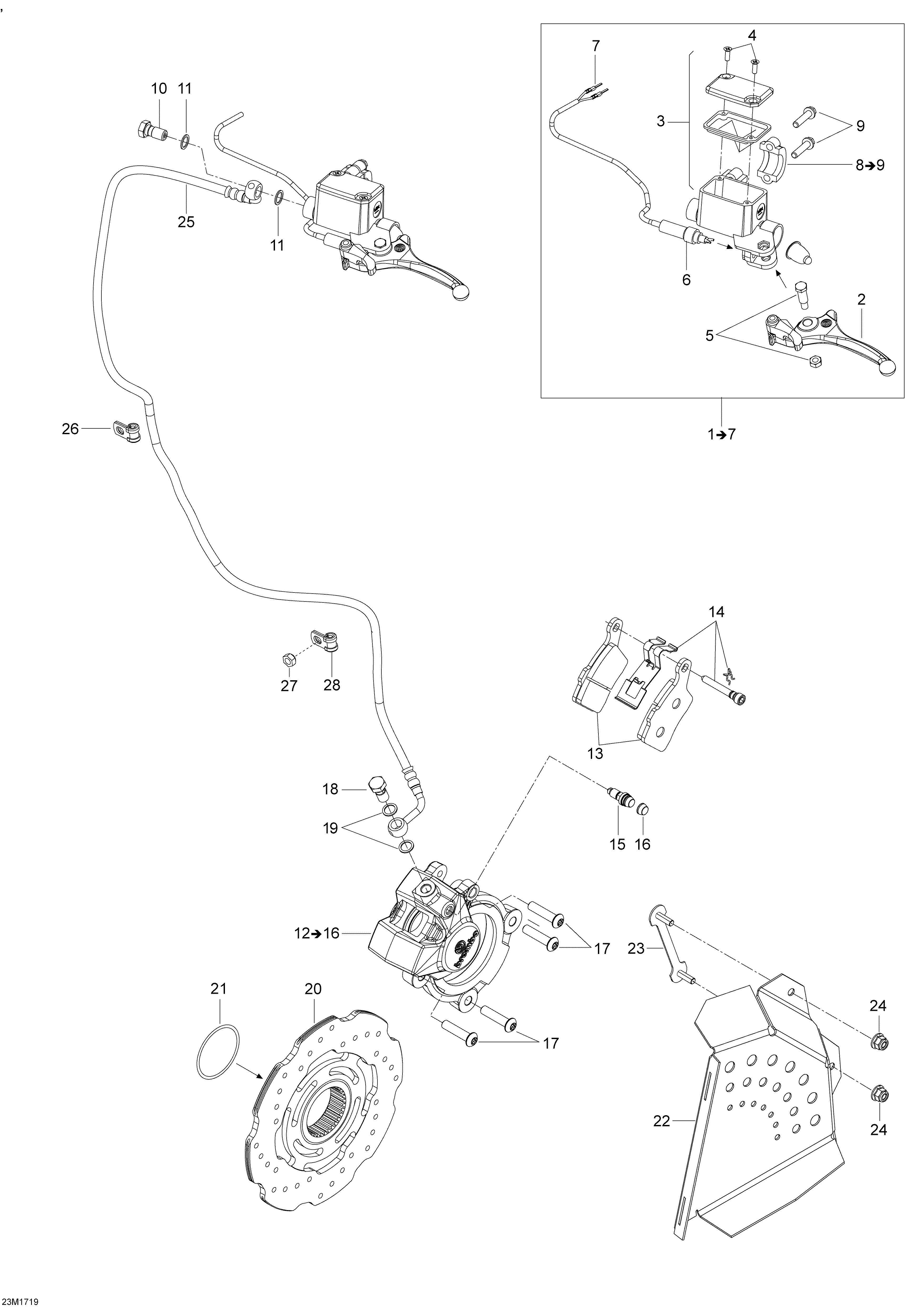

06- Hydraulic Brakes для BRP Ski-Doo TUNDRA - 2-STROKE - WT Europe - 2017
-
№АртикулНазвание
-
1507032598 Master Cylinder Ass'y. Includes 1 To 7Master Cylinder Ass'y. Includes 1 To 7
-
1507032598 Master Cylinder Ass'y. Includes 1 To 7Master Cylinder Ass'y. Includes 1 To 7
-
2507032476 LeverLever
-
2507032476 LeverLever
-
3507032478 Master Cylinder Reservoir Ass'yMaster Cylinder Reservoir Ass'y
-
3507032478 Master Cylinder Reservoir Ass'yMaster Cylinder Reservoir Ass'y
-
4415129356 Screw M4 X 20Screw M4 X 20
-
4415129356 Screw M4 X 20Screw M4 X 20
-
5415030000 Pin Ass'yPin Ass'y
-
5415030000 Pin Ass'yPin Ass'y
-
6507032599 MicroswitchMicroswitch
-
6507032599 MicroswitchMicroswitch
-
7515175232 Male TerminalMale Terminal
-
7515175232 Male TerminalMale Terminal
-
8507032477 Clamp And Screw Kit. Includes 8 To 9Clamp And Screw Kit. Includes 8 To 9
-
8507032477 Clamp And Screw Kit. Includes 8 To 9Clamp And Screw Kit. Includes 8 To 9
-
9250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
9250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
10507032551 Banjo BoltBanjo Bolt
-
10507032551 Banjo BoltBanjo Bolt
-
11705600310 Copper WasherCopper Washer
-
11705600310 Copper WasherCopper Washer
-
12507032602 Brake caliper assembly. Includes 12 To 16Brake caliper assembly. Includes 12 To 16
-
12507032602 Brake caliper assembly. Includes 12 To 16Brake caliper assembly. Includes 12 To 16
-
13507032473 Brake Pads KitBrake Pads Kit
-
13507032473 Brake Pads KitBrake Pads Kit
-
14507032474 Pin, Clip & Spring KitPin, Clip & Spring Kit
-
14507032474 Pin, Clip & Spring KitPin, Clip & Spring Kit
-
15507032475 BleederBleeder
-
15507032475 BleederBleeder
-
17250000764 Hex. Button Head Screw M8 X 35Hex. Button Head Screw M8 X 35
-
17250000764 Hex. Button Head Screw M8 X 35Hex. Button Head Screw M8 X 35
-
18507032551 Banjo BoltBanjo Bolt
-
18507032551 Banjo BoltBanjo Bolt
-
19705600310 Copper WasherCopper Washer
-
19705600310 Copper WasherCopper Washer
-
20507032513 DiskDisk
-
20507032513 DiskDisk
-
21293300134 O-RingO-Ring
-
21293300134 O-RingO-Ring
-
22507032525 Disk ProtectorDisk Protector
-
22507032525 Disk ProtectorDisk Protector
-
23518328661 Counter PlateCounter Plate
-
23518328661 Counter PlateCounter Plate
-
24233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
25507032548 Hose, Steel BraidedHose, Steel Braided
-
25507032548 Hose, Steel BraidedHose, Steel Braided
-
26293650256 ClampClamp
-
26293650256 ClampClamp
-
27233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
28414176000 Open ClampOpen Clamp
-
28414176000 Open ClampOpen Clamp
