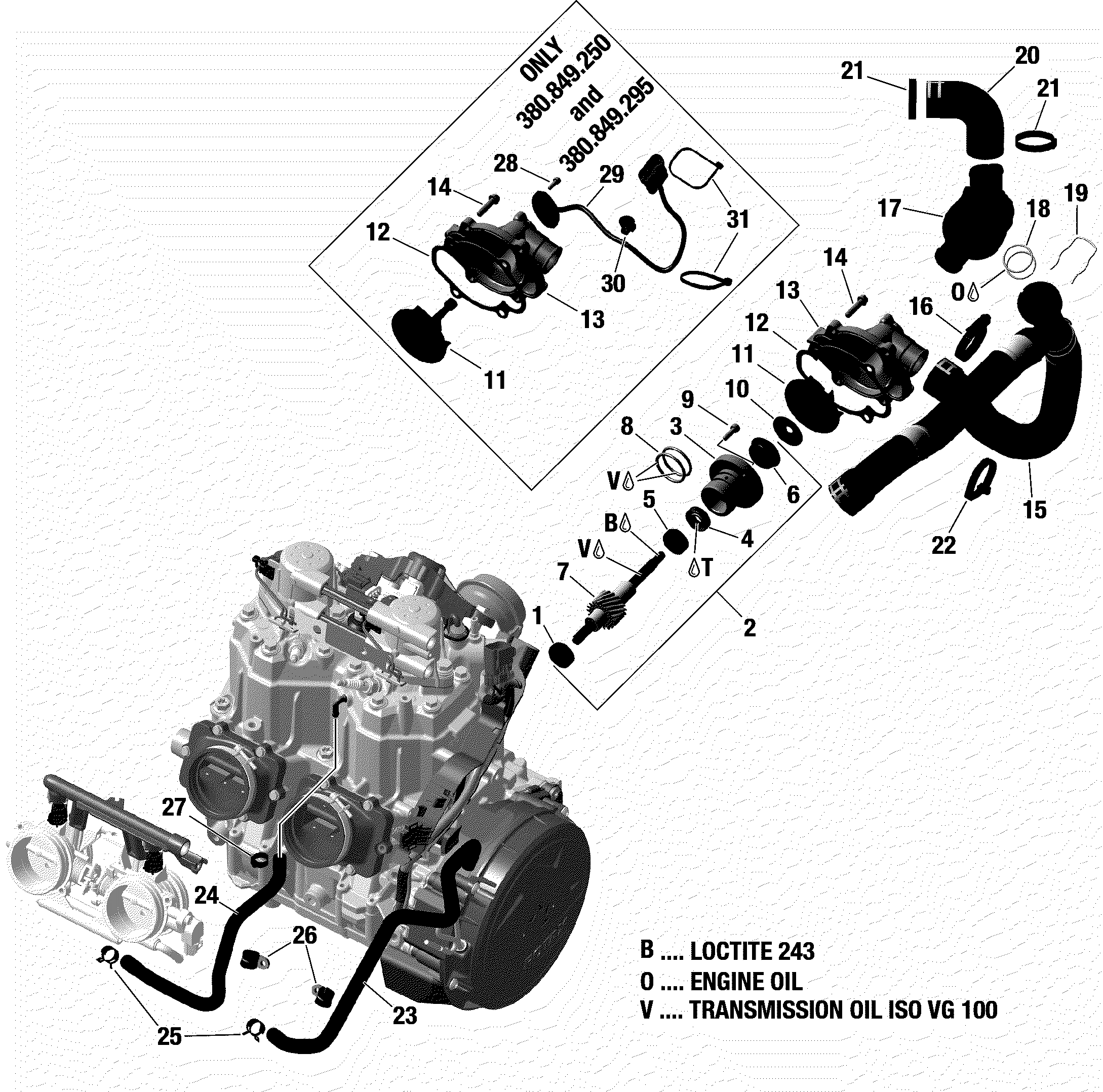

01- Engine Cooling для BRP Ski-Doo 5- RENEGADE 850 E-TEC - 2018
-
№АртикулНазвание
-
1420232100 Ball BearingBall Bearing
-
2>9420891479 Water Pump Shaft. Except SHOT EngineWater Pump Shaft. Except SHOT Engine
-
2>9420891478 Water Pump Shaft. Shot EngineWater Pump Shaft. Shot Engine
-
3420847933 Step CollarStep Collar
-
4420230198 Oil SealOil Seal
-
5420232100 Ball BearingBall Bearing
-
6420650370 Rotary SealRotary Seal
-
8420950890 O-RingO-Ring
-
9420840514 Allen Screw M5 x 16Allen Screw M5 x 16
-
10420944035 Cover WasherCover Washer
-
11420922808 Impeller. Except SHOT EngineImpeller. Except SHOT Engine
-
11420922806 Impeller. Shot EngineImpeller. Shot Engine
-
12420430053 Gasket Cover Water PumpGasket Cover Water Pump
-
13420822285 Water Pump Housing. Except SHOT EngineWater Pump Housing. Except SHOT Engine
-
13420822287 Water Pump Housing. Shot EngineWater Pump Housing. Shot Engine
-
14420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
15420822801 Molded HoseMolded Hose
-
16420251221 Clamp 30-45MMClamp 30-45MM
-
17>18420822833 Thermostat HousingThermostat Housing
-
18420430060 O-ringO-ring
-
19420939344 Spring ClipSpring Clip
-
20420822820 Hose ReturnHose Return
-
21420951123 Clamp 34.9-38.1MMClamp 34.9-38.1MM
-
22420866716 Tie-RapTie-Rap
-
23420201516 Molded HoseMolded Hose
-
24420201512 Molded HoseMolded Hose
-
25420853511 ClampClamp
-
26420851250 ClampClamp
-
27420851458 ClampClamp
-
28420440292 Allen Screw M4 X12. Shot EngineAllen Screw M4 X12. Shot Engine
-
29420864400 Angle Sensor. Shot EngineAngle Sensor. Shot Engine
-
30420951341 Tie-Rap With Mount. Shot EngineTie-Rap With Mount. Shot Engine
