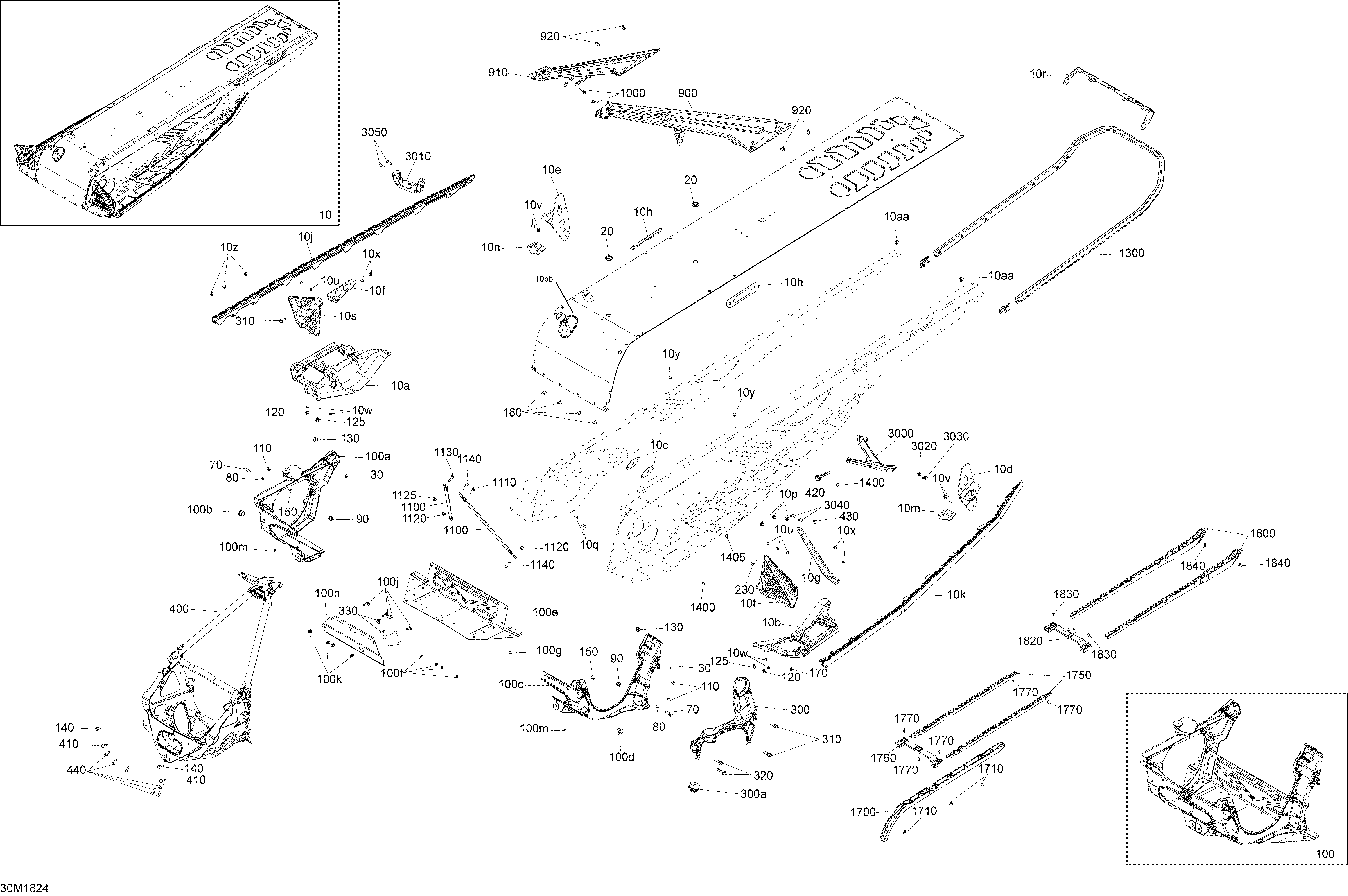

09- Frame Renegade - 850 E-TEC - Package BackCountry X для BRP Ski-Doo 5- RENEGADE 850 E-TEC - 2018
-
№АртикулНазвание
-
10>10bb415130180 Black Tunnel Module 146Black Tunnel Module 146
-
10>10bb415130181 Blue Tunnel Module 146. North America ModelsBlue Tunnel Module 146. North America Models
-
10>10bb415130208 Blue Tunnel Module 146. Europe ModelsBlue Tunnel Module 146. Europe Models
-
10a518328684 RH Footrest ReinforcementRH Footrest Reinforcement
-
10b518328682 LH Footrest ReinforcementLH Footrest Reinforcement
-
10c518326647 Reinforcement PlateReinforcement Plate
-
10d518328467 LH Suspension BracketLH Suspension Bracket
-
10e518328468 RH Suspension BracketRH Suspension Bracket
-
10f518329048 RH Reinforcement FootrestRH Reinforcement Footrest
-
10g518329049 LH Reinforcement FootrestLH Reinforcement Footrest
-
10h518329480 Member Fixation Plate. North America ModelsMember Fixation Plate. North America Models
-
10h518330299 LH Member Fixation Plate. Europe ModelsLH Member Fixation Plate. Europe Models
-
10j518328451 RH RollerRH Roller
-
10k518328452 LH RollerLH Roller
-
10m518329088 LH Reinforcement PlateLH Reinforcement Plate
-
10n518329089 RH Reinforcement PlateRH Reinforcement Plate
-
10p293450232 InsertInsert
-
10q250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10r518328990 Rear CapRear Cap
-
10s518328460 RH FootrestRH Footrest
-
10t518328463 LH FootrestLH Footrest
-
10u293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
10v293150183 RivetRivet
-
10w293150144 Stavex RivetStavex Rivet
-
10x293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10y293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10z293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
10aa293150147 Hemlock RivetHemlock Rivet
-
10bb518330132 Assembly Radiator 146Assembly Radiator 146
-
20293730052 Black PlugBlack Plug
-
30506151252 WasherWasher
-
70250000942 Hex Screw M8 X 30Hex Screw M8 X 30
-
80234081410 Flat Washer 8 mmFlat Washer 8 mm
-
90233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
100518329959 Riveted Module E. Includes 100 to 100mRiveted Module E. Includes 100 to 100m
-
100a518329999 RH Member Ass'y. Includes 100a to 100bRH Member Ass'y. Includes 100a to 100b
-
100b505073317 Leg CushionLeg Cushion
-
100c518329960 LH Member Ass'y. Includes 100c to 100dLH Member Ass'y. Includes 100c to 100d
-
100d505073317 Leg CushionLeg Cushion
-
100e518329844 Bottom PlateBottom Plate
-
100f293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
100g293450268 InsertInsert
-
100h518330100 Front MemberFront Member
-
100j207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100k233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
100m293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
110293150147 Hemlock RivetHemlock Rivet
-
120293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
125293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
130233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
150233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
170293450268 InsertInsert
-
180207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
230207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
300518328693 Brace Ass'y. Includes 300 to 300aBrace Ass'y. Includes 300 to 300a
-
300a512060295 Rubber MountRubber Mount
-
310250001048 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
320207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
330233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
400518329966 S ModuleS Module
-
410250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
420207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
430233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
440207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
900518329077 Black - LH Member. Deep Black ModelsBlack - LH Member. Deep Black Models
-
900518329079 Yellow - LH Member. Sunburst Yellow ModelsYellow - LH Member. Sunburst Yellow Models
-
910518329078 Black - RH Member. Deep Black ModelsBlack - RH Member. Deep Black Models
-
910518329080 Yellow - RH Member. Sunburst Yellow ModelsYellow - RH Member. Sunburst Yellow Models
-
920250000887 Pan Head Torx Screw M8 X 12Pan Head Torx Screw M8 X 12
-
1000250300629 Stud M5 X 20Stud M5 X 20
-
1100518329974 Upper Column SupprtUpper Column Supprt
-
1110207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
1120233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1125233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
1130207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1300518329553 Rear Bumper 146. North America ModelsRear Bumper 146. North America Models
-
1300518329797 146 Hitch Bumper Black. Europe Models146 Hitch Bumper Black. Europe Models
-
1400293730047 Black Dart 8 mmBlack Dart 8 mm
-
1405293730060 Black Dart 10 mmBlack Dart 10 mm
-
1700518329982 Front ProtectorFront Protector
-
1710293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
1750518329994 Rear ProtectorRear Protector
-
1760518329981 Front Support ProtectorFront Support Protector
-
1770250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
1800518329979 Rear ProtectorRear Protector
-
1820520001545 SupportSupport
-
1830250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
1840293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
3000518330358 Black Toe-holdBlack Toe-hold
-
3010518329134 Toe HoldToe Hold
-
3020250000793 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3030207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
3050210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
