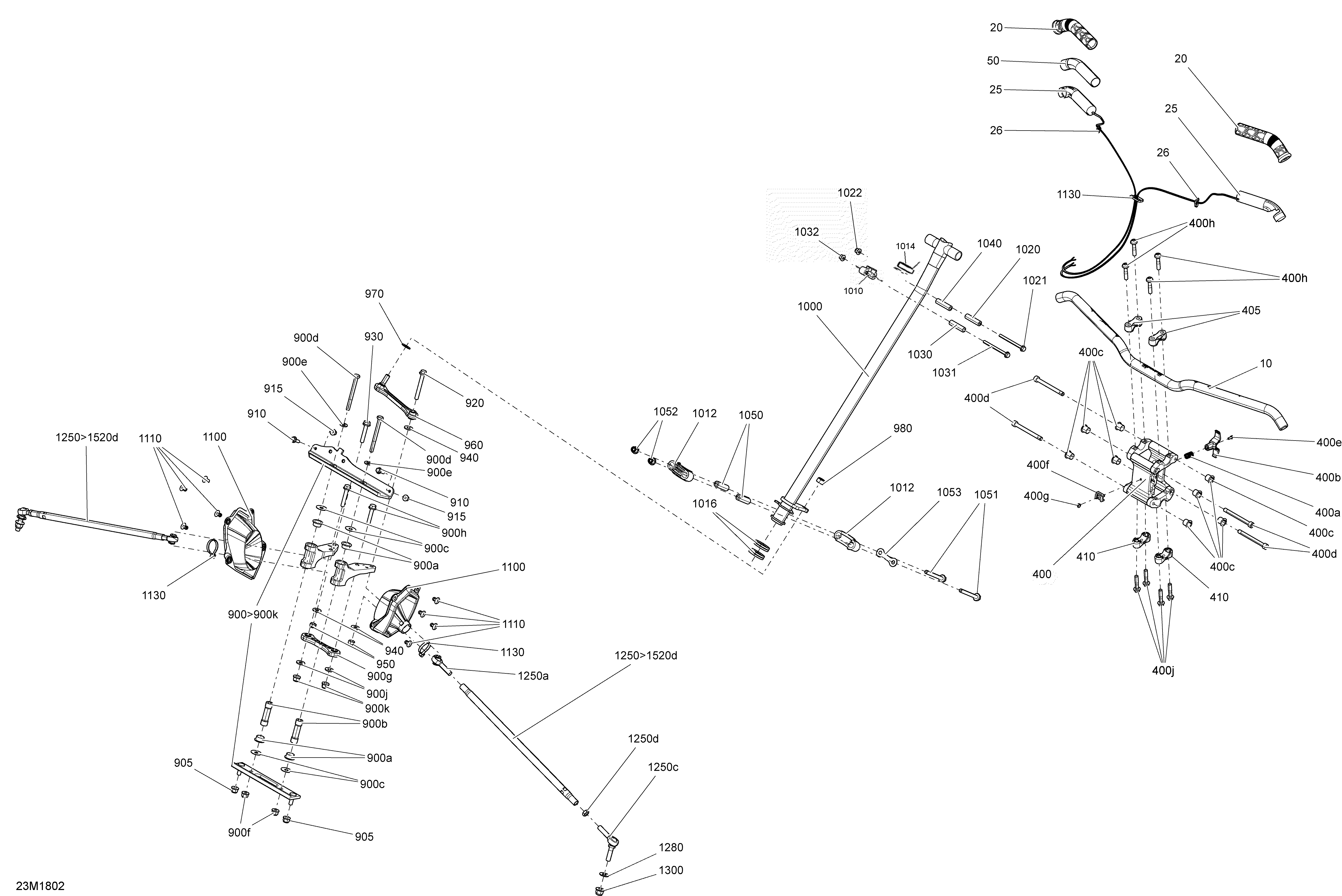

07- Steering Renegade - 850 E-TEC - X & XRS для BRP Ski-Doo 5- RENEGADE 850 E-TEC - 2018
-
№АртикулНазвание
-
10506152825 Handle BarHandle Bar
-
20506152560 Grip 148mmGrip 148mm
-
25506152856 Heated FilmHeated Film
-
50506152548 IsolantIsolant
-
400860201320 Riser Kit. Includes 400 to 400jRiser Kit. Includes 400 to 400j
-
400a506152820 SpringSpring
-
400c506152520 CushionCushion
-
400d205588554 Socket Head Screw M8 X 85Socket Head Screw M8 X 85
-
400f515176795 Tie Rap Mount (screwable)Tie Rap Mount (screwable)
-
400g390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
400h250000904 Button Head Torx Screw M8 X 38Button Head Torx Screw M8 X 38
-
400j250000852 Hexagonal Flange Screw M8 X 1.25 x 60Hexagonal Flange Screw M8 X 1.25 x 60
-
400b506152821 HandleHandle
-
400e205041060 Socket Head Screw M4X 10Socket Head Screw M4X 10
-
402506153028 Steering Stopper. Package XRSSteering Stopper. Package XRS
-
405506152894 SupportSupport
-
410506152894 SupportSupport
-
450506152992 WasherWasher
-
900506152917 Steering Linkage Ass'y. Includes 900 to 900kSteering Linkage Ass'y. Includes 900 to 900k
-
900a503194671 BushingBushing
-
900b506152792 Swivel PivotSwivel Pivot
-
900c503191800 WasherWasher
-
900d207088544 Hex. Screw M8 X 85Hex. Screw M8 X 85
-
900e503192494 WasherWasher
-
900f233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
900g506152755 Ball JointBall Joint
-
900h207684586 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
900j506151245 WasherWasher
-
900k233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
903506153008 Steering StopperSteering Stopper
-
905233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
910207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
915233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
920207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
930207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
940506151245 WasherWasher
-
950232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
960506152753 Ball JointBall Joint
-
970506152582 WasherWasher
-
980232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
1000506152777 Main Tube. Package XMain Tube. Package X
-
1000506153026 Main Tube. Package XRSMain Tube. Package XRS
-
1010506152219 Upper Half HousingUpper Half Housing
-
1012506153048 Lower Half-HousingLower Half-Housing
-
1014506152292 Upper Vibration RingUpper Vibration Ring
-
1016506152518 Lower Vibration RingLower Vibration Ring
-
1020506152297 Housing BushingHousing Bushing
-
1021207667554 Screw Hex Flange M6 X 75Screw Hex Flange M6 X 75
-
1022233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1030506152297 Housing BushingHousing Bushing
-
1031207667554 Screw Hex Flange M6 X 75Screw Hex Flange M6 X 75
-
1032233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1040506152297 Housing BushingHousing Bushing
-
1050506152937 Housing BushingHousing Bushing
-
1051207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
1052233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
1053506152938 Stopper PlateStopper Plate
-
1100506153037 BootBoot
-
1110293150008 Pop Rivet 3/16''Pop Rivet 3/16''
-
1130414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1250506153058 Rod Ass'y. Includes 1250 to 1250dRod Ass'y. Includes 1250 to 1250d
-
1250a506152344 LH Ball JointLH Ball Joint
-
1250b250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
1250c506152684 RH Thread Ball JointRH Thread Ball Joint
-
1250d732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
1280506152582 WasherWasher
-
1300233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
