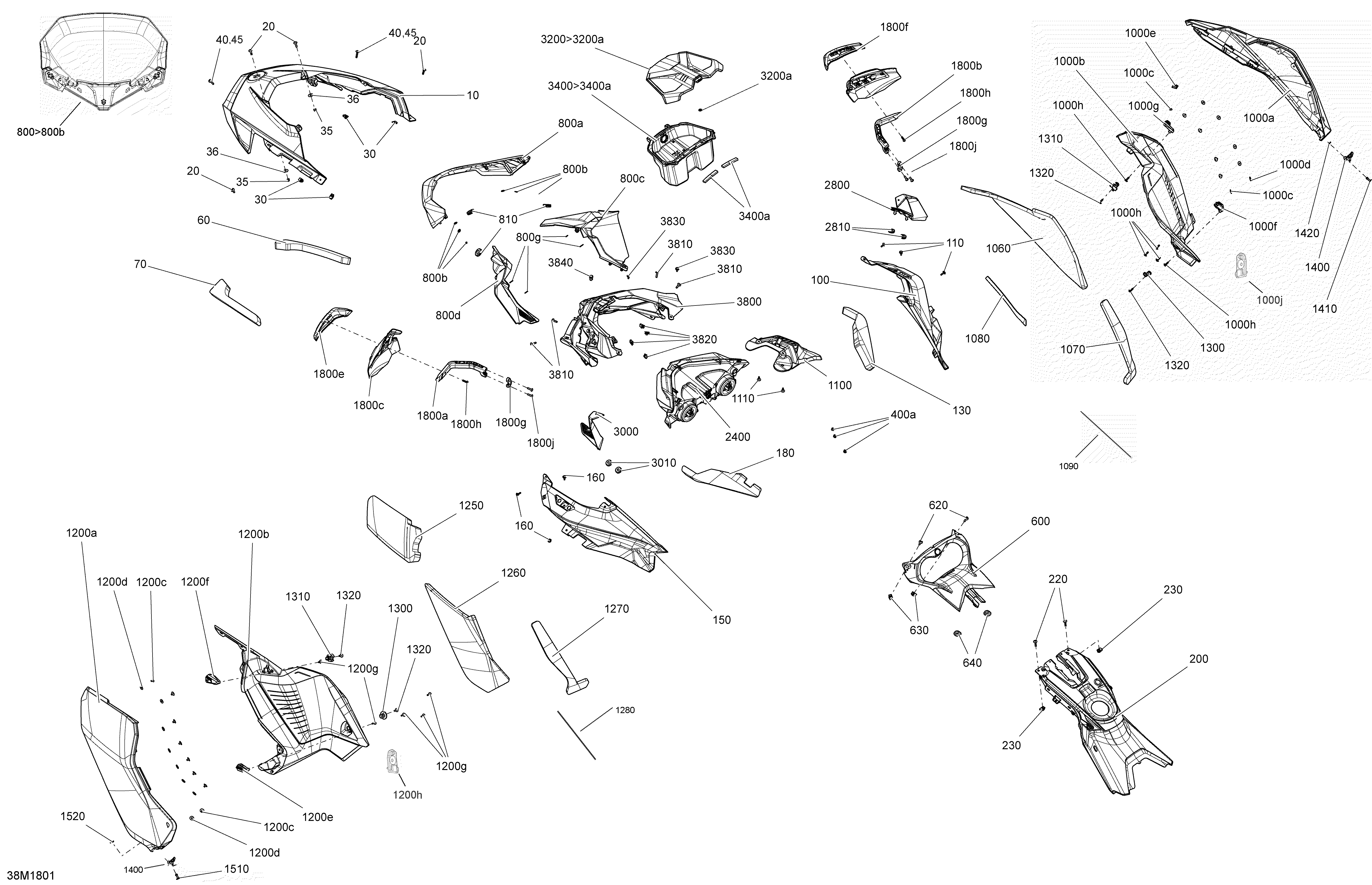

09- Hood Renegade - 850 E-TEC - XRS North America для BRP Ski-Doo 5- RENEGADE 850 E-TEC - 2018
-
№АртикулНазвание
-
10517305744 Black, Front HoodBlack, Front Hood
-
10517306362 Front HoodFront Hood
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
35233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
36250200040 Flat WasherFlat Washer
-
40250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
45250200166 WasherWasher
-
60517305763 RH Front Hood FoamRH Front Hood Foam
-
70517305764 LH Front Hood FoamLH Front Hood Foam
-
100517306007 Black - Hood RHBlack - Hood RH
-
100517306363 Hyper Silver, RH HoodHyper Silver, RH Hood
-
110250000725 Screw M4 X 16Screw M4 X 16
-
130517306001 RH Hood FoamRH Hood Foam
-
150517306008 Black - Hood LHBlack - Hood LH
-
150517306364 Hyper Silver, LH HoodHyper Silver, LH Hood
-
160250000725 Screw M4 X 16Screw M4 X 16
-
180517306002 LH Hood FoamLH Hood Foam
-
190513033813 GasketGasket
-
200517306318 Rear ConsoleRear Console
-
220250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
230250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
240517304518 Console NutConsole Nut
-
600517306117 Indicator SupportIndicator Support
-
620250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
630250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
800517305875 Deep Black, Wind DeflectorDeep Black, Wind Deflector
-
800a517306433 Manta Green, Wind DeflectorManta Green, Wind Deflector
-
810517303756 GrommetGrommet
-
810517303756 GrommetGrommet
-
1000a517305860 Black, RH Panel. Black ModelBlack, RH Panel. Black Model
-
1000a517306367 Silver, RH Panel. Silver ModelSilver, RH Panel. Silver Model
-
1000b517305861 Deep Black, RH Panel TrimDeep Black, RH Panel Trim
-
1000c293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000d517124300 WasherWasher
-
1000e517305109 Rivet PlateRivet Plate
-
1000f517305773 RH Rear LatchRH Rear Latch
-
1000g517305979 RH Front LatchRH Front Latch
-
1000h250000725 Screw M4 X 16Screw M4 X 16
-
1000j517306311 RH HookRH Hook
-
1200a517305864 Black, LH Panel. Black ModelBlack, LH Panel. Black Model
-
1200a517306369 Silver, LH Panel. Silver ModelSilver, LH Panel. Silver Model
-
1200b517305865 Black - Panel Trim LHBlack - Panel Trim LH
-
1200c293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200d517124300 WasherWasher
-
1200e517305774 LH Rear LatchLH Rear Latch
-
1200f517305980 LH Front LatchLH Front Latch
-
1200g250000725 Screw M4 X 16Screw M4 X 16
-
1200h517306312 LH HookLH Hook
-
1060517305767 RH Central Panel FoamRH Central Panel Foam
-
1070517306116 RH Rear Panel FoamRH Rear Panel Foam
-
1260517305770 LH Central Panel FoamLH Central Panel Foam
-
1270517305766 LH Rear Panel FoamLH Rear Panel Foam
-
1080517306262 Rubber SheetRubber Sheet
-
1090517306480 RH Rear Panel FoamRH Rear Panel Foam
-
1100517305862 Deep Black, RH GrillDeep Black, RH Grill
-
1110250000725 Screw M4 X 16Screw M4 X 16
-
1250517305769 LH Front Panel FoamLH Front Panel Foam
-
1280517306479 LH Rear Panel FoamLH Rear Panel Foam
-
1300517305985 Rear StudRear Stud
-
1310517305988 Front StudFront Stud
-
1320250000725 Screw M4 X 16Screw M4 X 16
-
1400517306309 RH Lower LatchRH Lower Latch
-
1400517306310 LH Lower LatchLH Lower Latch
-
1410293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
1420517124300 WasherWasher
-
1510293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
1520517124300 WasherWasher
-
1800a517305290 Deep Black, LH ArmDeep Black, LH Arm
-
1800b517305293 Deep Black, RH ArmDeep Black, RH Arm
-
1800c517305291 LH Deflector, Smoke 60% Transm.LH Deflector, Smoke 60% Transm.
-
1800d517305294 RH Deflector, Smoke 60% Transm.RH Deflector, Smoke 60% Transm.
-
1800e517305601 Deep Black, LH Cap, SKI-DOODeep Black, LH Cap, SKI-DOO
-
1800e517306405 Manta Green, LH CapManta Green, LH Cap
-
1800f517305602 Deep Black, RH Cap SKI-DOODeep Black, RH Cap SKI-DOO
-
1800f517306406 Manta Green, RH CapManta Green, RH Cap
-
1800g517305296 BrideBride
-
1800h250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
1800j250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
2400517305752 Headlamp. Includes 2400 to 2400aHeadlamp. Includes 2400 to 2400a
-
2400a415130081 BulbBulb
-
2800517306049 RH Hood PlateRH Hood Plate
-
3000517306050 LH Hood PlateLH Hood Plate
-
3200517305871 Deep Black, Cover Ass'y. Includes 3200 to 3200aDeep Black, Cover Ass'y. Includes 3200 to 3200a
-
3200a732610072 Push NutPush Nut
-
3400517306058 Trunk Ass'y. Includes 3400 to 3400aTrunk Ass'y. Includes 3400 to 3400a
-
3400a517305157 Seal JointSeal Joint
-
3800517305746 Deep Black, Headlamp Fairing. Black ModelDeep Black, Headlamp Fairing. Black Model
-
3800517306376 Headlamp Fairing. Silver ModelHeadlamp Fairing. Silver Model
-
3810250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3820250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3830250000725 Screw M4 X 16Screw M4 X 16
-
3840293150089 Tuflok Plastic RivetTuflok Plastic Rivet
