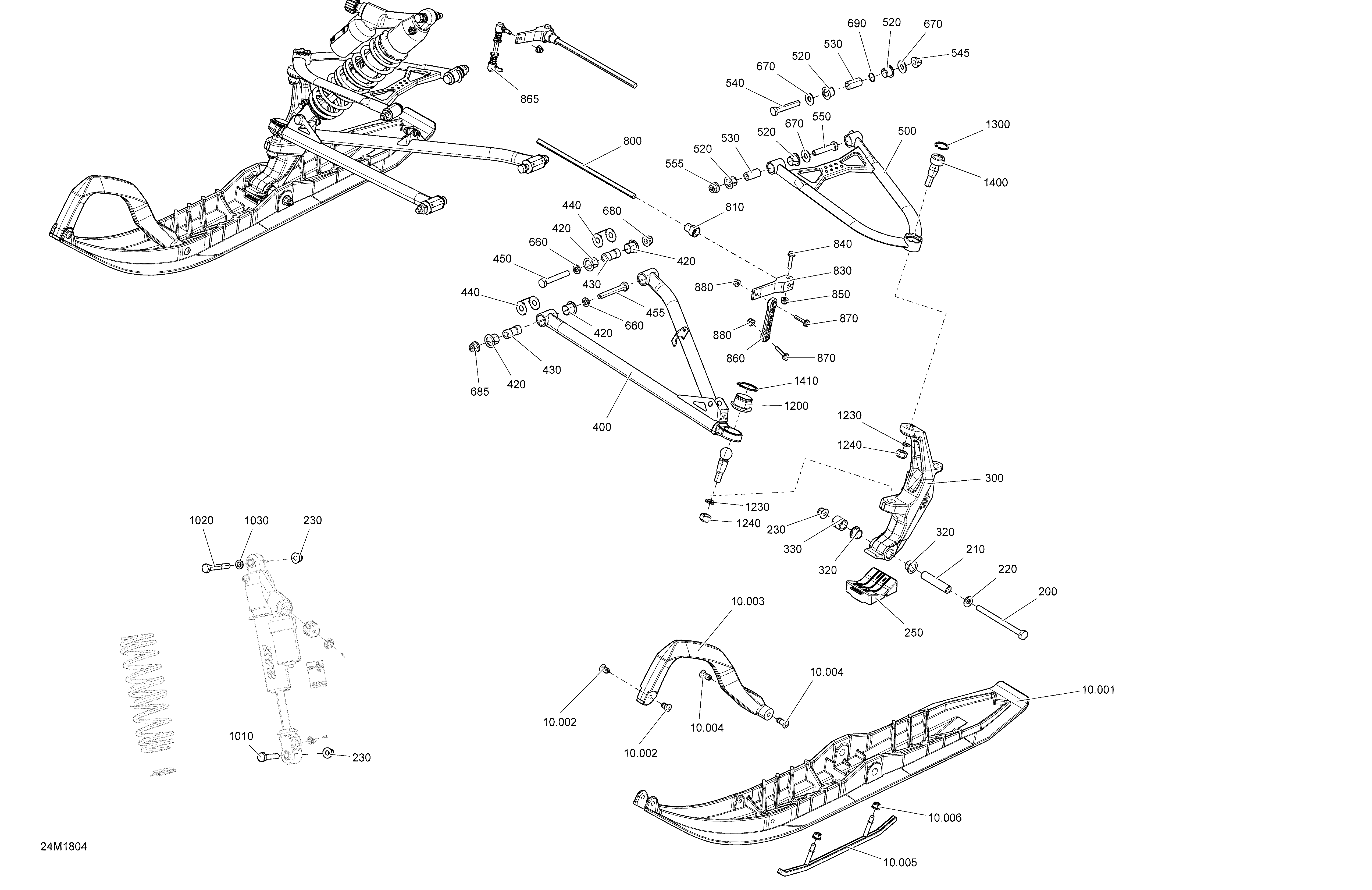

07- Front Suspension And Ski Renegade - 850 E-TEC - Package XRS RM Europe для BRP Ski-Doo 5- RENEGADE 850 E-TEC - 2018
-
№АртикулНазвание
-
10.001505073227 Black DS 2 Ski. Deep Black ModelsBlack DS 2 Ski. Deep Black Models
-
10.001505073354 Green DS 2 Ski. Manta Green ModelsGreen DS 2 Ski. Manta Green Models
-
10.002505071812 RetainerRetainer
-
10.003505072976 Black HandleBlack Handle
-
10.004505072133 RetainerRetainer
-
10.005860201220 Carbide Runner Kit. Includes 10,005 to 10,006Carbide Runner Kit. Includes 10,005 to 10,006
-
10.006233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210505073691 Ski AxleSki Axle
-
300505073708 Black - LH Ski Leg 10. Deep Black ModelsBlack - LH Ski Leg 10. Deep Black Models
-
300505074211 Green, LH Ski Leg. Manta Green ModelsGreen, LH Ski Leg. Manta Green Models
-
310505073711 Black - RH Ski Leg 10. Deep Black ModelsBlack - RH Ski Leg 10. Deep Black Models
-
310505074212 Green, RH Ski Leg. Manta Green ModelsGreen, RH Ski Leg. Manta Green Models
-
320505072690 Leg BushingLeg Bushing
-
330505073779 Leg StopperLeg Stopper
-
400505073720 RH Lower Arm 42''RH Lower Arm 42''
-
410505073714 LH Lower Arm 42''LH Lower Arm 42''
-
420505072208 BushingBushing
-
430505072209 BushingBushing
-
440505072634 Wear PlateWear Plate
-
445505072448 O-RingO-Ring
-
450250000291 Screw Hex. M10 X 1.25 X 70Screw Hex. M10 X 1.25 X 70
-
455250000291 Screw Hex. M10 X 1.25 X 70Screw Hex. M10 X 1.25 X 70
-
470505073723 Wear PlateWear Plate
-
480505073844 PlatePlate
-
500505073724 LH Upper Arm 42''LH Upper Arm 42''
-
510505073728 RH Upper Arm 42''RH Upper Arm 42''
-
520505072250 BushingBushing
-
530505072143 BushingBushing
-
540250000290 Screw Hex. M10 X 1.25 X 60Screw Hex. M10 X 1.25 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250000290 Screw Hex. M10 X 1.25 X 60Screw Hex. M10 X 1.25 X 60
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
685250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
840207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
870207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1010250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1020250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1200505074009 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12 X 1.25Hex Elastic Nut M12 X 1.25
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370098 Snap RingSnap Ring
